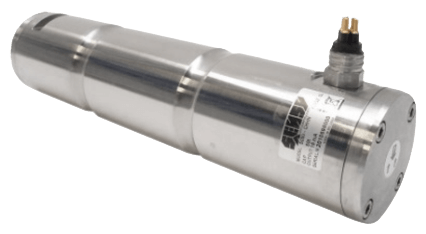

5050 Subsea/Submerged Load Pin

Brand: Sensy S.A.
Design for underwater applications.
Features
  • Custom made dimensionning
  • Sturdy design
  • Stainless steel
  • Protection IP 68
  • Easy to install
  • Depth: till -5000 m (-16,404 ft)
  • Cable length: 6m
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • ATEX explosion proof Ex II 2 G Ex d IIB T6 Gb
    • ATEX "d" Ø ≥ 65
    • Amplified output (V or mA)
    • Cable assembly with wet meatable connector
show more
Images are representations only.
Design for underwater applications.
Features
  • Custom made dimensionning
  • Sturdy design
  • Stainless steel
  • Protection IP 68
  • Easy to install
  • Depth: till -5000 m (-16,404 ft)
  • Cable length: 6m
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • ATEX explosion proof Ex II 2 G Ex d IIB T6 Gb
    • ATEX "d" Ø ≥ 65
    • Amplified output (V or mA)
    • Cable assembly with wet meatable connector

Specifications

Brand

Applications

  • Monitoring System
  • Oil Search
  • Ship Building
  • Tank Test

Approvals & Certifications

  • ATEX Explosion-proof Ex II 2 G Ex D IIB T6 Gb
  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE
  • CSA
  • IECEx

Cable Length

  • 19.69 feet (6 meters)

Capacity

  • 0.5 to 125 T

Electrical Connectors

  • DIN 15058

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP68

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Reference Excitation Voltage

Insulation Resistance

  • > 5,000 MegaOhms

Load

  • > 300% to > 500% of Full Scale - Breaking Load

Load Limit

  • 150% (SL-FORCE) to 200% (SL-HOIST) of Full Scale

Repeatability

  • Error: <± 0.25% of Full Scale

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • Nominal Sensitivity: 1 to 1.5 mV/V

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Static Lateral Force

  • 100% to 150% of Full Scale

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.2% of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
