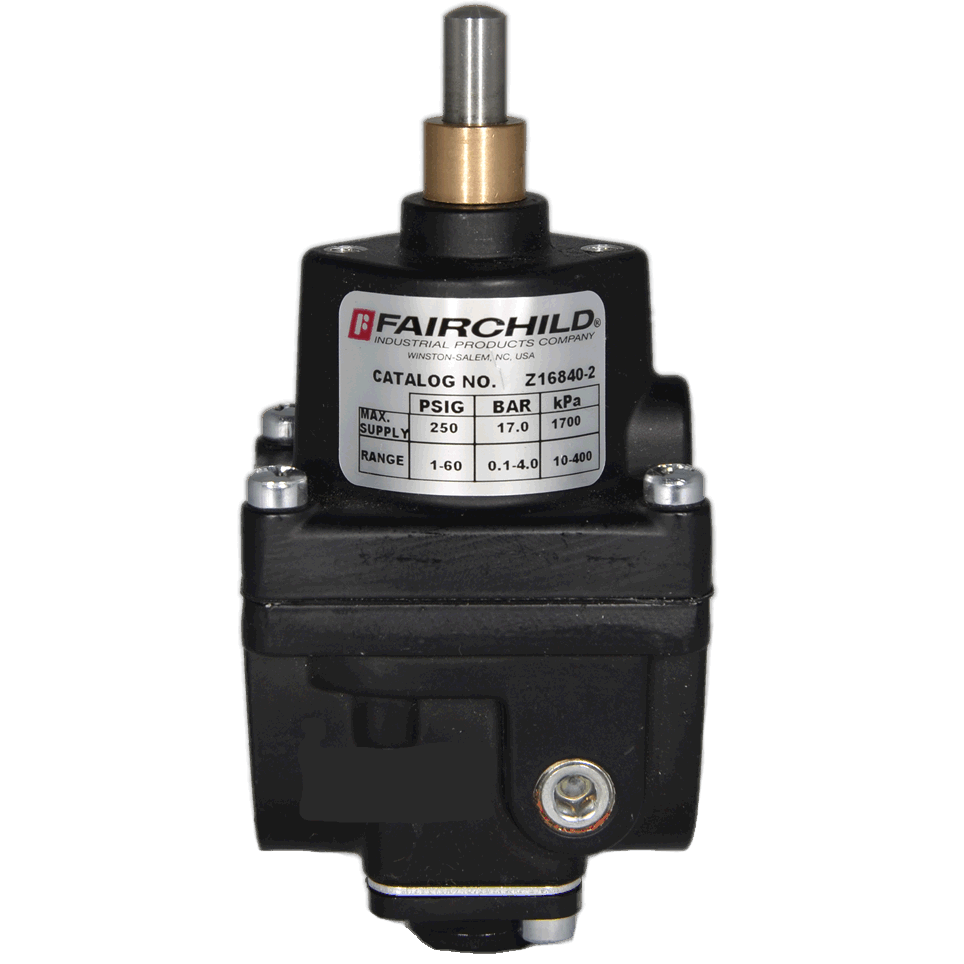

Model 16 Vacuum/Positive Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 16 Vacuum Regulator is designed for systems that require system pressure control above and below atmospheric pressure.

Stability of regulated vacuum or pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the inner valve in accordance with the flow velocity.

The Model 16 pneumatic vacuum regulator features control sensitivity of 1/2" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure/vacuum changes or conditions.

The Fairchild Model 16 will handle a 250 psi, 17 bar, maximum supply pressure and offers five (5) output pressure ranges from Vacuum-2 psi, Vacuum-0.15 bar, Vacuum-15 kPa, up to Vacuum-150 psi, Vacuum-10 bar, Vacuum-1,000 kPa.

The Fairchild Model 16 pressure regulator offers up to 40 SCFM, 65 m3/hr positive flow capacity.
Features
  • Handles positive pressure into vacuum
  • Control sensitivity of 1/2" water column
  • Balanced Supply Valve
  • Aspirator Tube
  • Separate Control Chamber isolates the diaphragm from the main flow
  • Unit construction
  • Mounting Bracket available
show more
The Rotork Fairchild Model 16 Vacuum Regulator is designed for systems that require system pressure control above and below atmospheric pressure.

Stability of regulated vacuum or pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the inner valve in accordance with the flow velocity.

The Model 16 pneumatic vacuum regulator features control sensitivity of 1/2" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure/vacuum changes or conditions.

The Fairchild Model 16 will handle a 250 psi, 17 bar, maximum supply pressure and offers five (5) output pressure ranges from Vacuum-2 psi, Vacuum-0.15 bar, Vacuum-15 kPa, up to Vacuum-150 psi, Vacuum-10 bar, Vacuum-1,000 kPa.

The Fairchild Model 16 pressure regulator offers up to 40 SCFM, 65 m3/hr positive flow capacity.
Features
  • Handles positive pressure into vacuum
  • Control sensitivity of 1/2" water column
  • Balanced Supply Valve
  • Aspirator Tube
  • Separate Control Chamber isolates the diaphragm from the main flow
  • Unit construction
  • Mounting Bracket available
12 models matching criteria
16212
FAIRCHILD Model 16 Vacuum Regulator, 1/4" NPT, Vacuum to +2 psi View More
  • Set Point Range: vacuum-2 psig, vacuum-0.15 bar, vacuum-15 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass & Zinc Plated Steel
    • Elastomers: Nitrile on Dacron
6 - 8 weeks
$643.97USD
$14.81 Shipping
16212U
FAIRCHILD Model 16 Vacuum Regulator, 1/4" NPT, Vacuum to +2 psi, BSTP (Tapered) View More
  • Set Point Range: vacuum-2 psig, vacuum-0.15 bar, vacuum-15 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass & Zinc Plated Steel
    • Elastomers: Nitrile on Dacron

6 - 8 weeks
$643.97USD
$14.81 Shipping
16222
FAIRCHILD Model 16 Vacuum Regulator, 1/4" NPT, Vacuum to +10 psi View More
  • Set Point Range: vacuum-10 psig, vacuum-0.7 bar, vacuum-70 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass & Zinc Plated Steel
    • Elastomers: Nitrile on Dacron

6 - 8 weeks
$643.97USD
$14.81 Shipping
16232
FAIRCHILD Model 16 Vacuum Regulator, 1/4" NPT, Vacuum to +30 psi View More
  • Set Point Range: vacuum-30 psig, vacuum-2 bar, vacuum-200 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass & Zinc Plated Steel
    • Elastomers: Nitrile on Dacron
10 - 12 weeks
$643.97USD
$14.81 Shipping
16233
FAIRCHILD Model 16 Vacuum Regulator, 3/8" NPT, Vacuum to +30 psi View More
  • Set Point Range: vacuum-30 psig, vacuum-2.0 bar, vacuum-200 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass & Zinc Plated Steel
    • Elastomers: Nitrile on Dacron
6 - 8 weeks
$643.97USD
$14.81 Shipping
16262
FAIRCHILD Model 16 Vacuum Regulator, 1/4" NPT, Vacuum to +150 psi View More
  • Set Point Range: vacuum-150 psig, vacuum-10 bar, vacuum-1000 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass & Zinc Plated Steel
    • Elastomers: Nitrile on Dacron

6 - 8 weeks
$643.97USD
$14.81 Shipping
16234
FAIRCHILD Model 16 Vacuum Regulator, 1/2" NPT, Vacuum to +30 psi
6 - 8 weeks
$681.76USD
$14.81 Shipping
16222L
FAIRCHILD Model 16 Vacuum Regulator, 1/4" NPT, Vacuum to +10 psi, Increased Sensitivity View More
  • Set Point Range: vacuum-10 psig, vacuum-0.7 bar, vacuum-70 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass & Zinc Plated Steel
    • Elastomers: Nitrile on Dacron

  • Options:
    • ​Increased Sensitivity

6 - 8 weeks
$684.72USD
$14.81 Shipping
16232A
FAIRCHILD Model 16 Vacuum Regulator, 1/4" NPT, Vacuum to +30 psi, Silicone Elastomers View More
  • Set Point Range: vacuum-30 psig, vacuum-2 bar, vacuum-200 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Options: A: Silicone Elastomer
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass & Zinc Plated Steel

6 - 8 weeks
$736.60USD
$14.81 Shipping
16223J
FAIRCHILD Model 16 Vacuum Regulator, 3/8" NPT, Vacuum to +10 psi, Viton View More
  • Set Point Range: vacuum-10 psig, vacuum-0.7 bar, vacuum-70 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass & Zinc Plated Steel
    • Elastomers: Fluorocarbon (Viton)

6 - 8 weeks
$745.49USD
$14.81 Shipping

Specifications

Actuator Type

  • Tamper-Proof

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Elastomers

  • Nitrile on Dacron
  • Silicone
  • Viton (Fluorocarbon)

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Flow Capacity

  • 40 scfm (65.2 m³/hour)

Media

  • Compressed Air
  • Gas

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Pressure Range

  • bar: -10 to 0
  • kPa: -1,000 to 0
  • psi: -150 to 0

Sensitivity

  • 1/2" WC (1.27 cm)

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • psig: 0.1 (bar: 0.007, kPa: 0.7) for a psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure

Trim Material

  • Brass
  • Stainless Steel
  • Zinc-Plated Steel
