Pressure Gauge

Brand: Fairchild Industrial Products

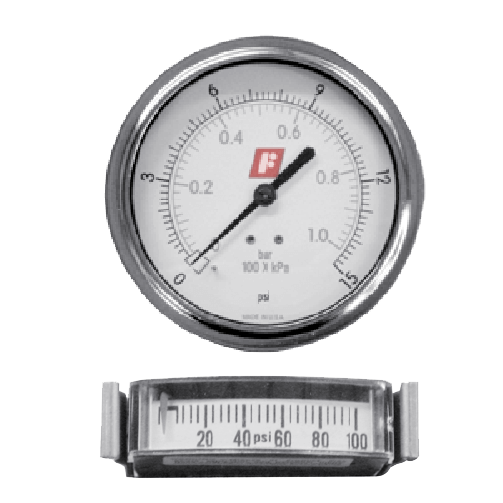

The Rotork Fairchild line of 1-1/2", 2", and 3 1/2" diameter gauges are designed for general use in applications that use gas or liquid medium that is compatible with the brass and brass alloy components in the gauge.

Mini Strip Gauges are designed for use in small panel mount applications. Both gauge styles include a receiver gauge configuration designed for the pneumatic transmission of process variables.
Features
  • Round Gauges are available in 7 ranges with a maximum of 400 psig
  • Mini Strip Gauges are available in 4 ranges with a maximum of 100 psig
  • Receiver Gauges are graduated from 0 to 100% for a 3 to 15 psig transmission range
  • 1-1/2" Gauges have a 1/8" NPT Center Back Connection
  • 2" and 3 1/2" Gauges have a 1/4" NPT Center Back Connection
  • 1/2" Mini Strip Gauges have a 1/8" Hose Barb Connection
show more

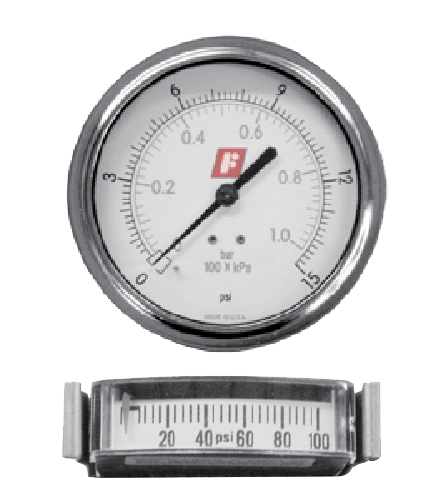

Images are representations only.
The Rotork Fairchild line of 1-1/2", 2", and 3 1/2" diameter gauges are designed for general use in applications that use gas or liquid medium that is compatible with the brass and brass alloy components in the gauge.

Mini Strip Gauges are designed for use in small panel mount applications. Both gauge styles include a receiver gauge configuration designed for the pneumatic transmission of process variables.
Features
  • Round Gauges are available in 7 ranges with a maximum of 400 psig
  • Mini Strip Gauges are available in 4 ranges with a maximum of 100 psig
  • Receiver Gauges are graduated from 0 to 100% for a 3 to 15 psig transmission range
  • 1-1/2" Gauges have a 1/8" NPT Center Back Connection
  • 2" and 3 1/2" Gauges have a 1/4" NPT Center Back Connection
  • 1/2" Mini Strip Gauges have a 1/8" Hose Barb Connection

Pressure Gauge

Gauge Size

Pressure Range

Connection

Gauge Type

Specifications

Accuracy

  • ± 2% (Mid Scale)
  • ± 3% (Lower Third, Upper Third)
  • 5% of Full Scale (Mini Strip Gauges)

Connectors

  • 1/8" Hose

Enclosure, Body Material

  • Aluminum (Standard Gauge)
  • Brass (Mini-Strip Gauge)
  • Phosphur Bronze (Standard Gauge)
  • Stainless Steel (Standard Gauge)
  • Zinc-Plated Steel (Mini-Strip Gauge)

Mounting

  • Direct Mounting
  • Panel

NPT Connection

  • 1/4" NPT
  • 1/8" NPT

Pressure Range

  • bar: 0 to 28
  • kPa: 0 to 2,800
  • psig: 0 to 400

Size

  • Gauge: 1-1/2"
  • Gauge: 2"
  • Gauge: 3-1/2"
