M-578 Five-Valve Manifold

Brand: PGI International
Request a Quote
Favorite
  • Design: Hard Seat Five-Valve Wide Pattern Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female
  • Test Ports: 1/4" NPT
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 6000 psi @ +200°F (+93°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Unique configuration for "no finger pinching" operation of all five valves
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
show more

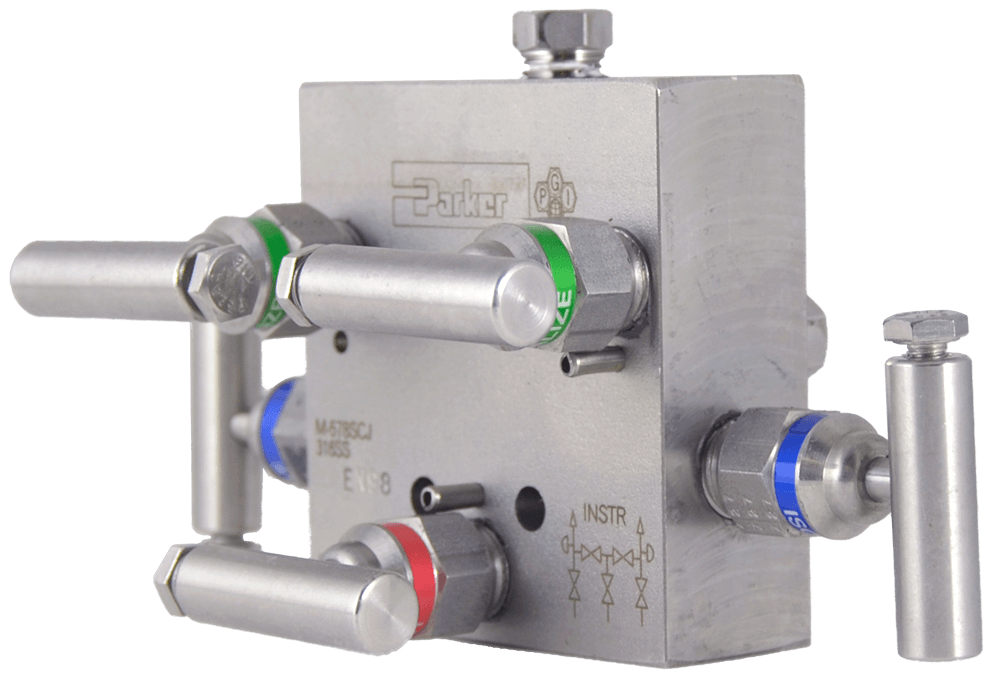

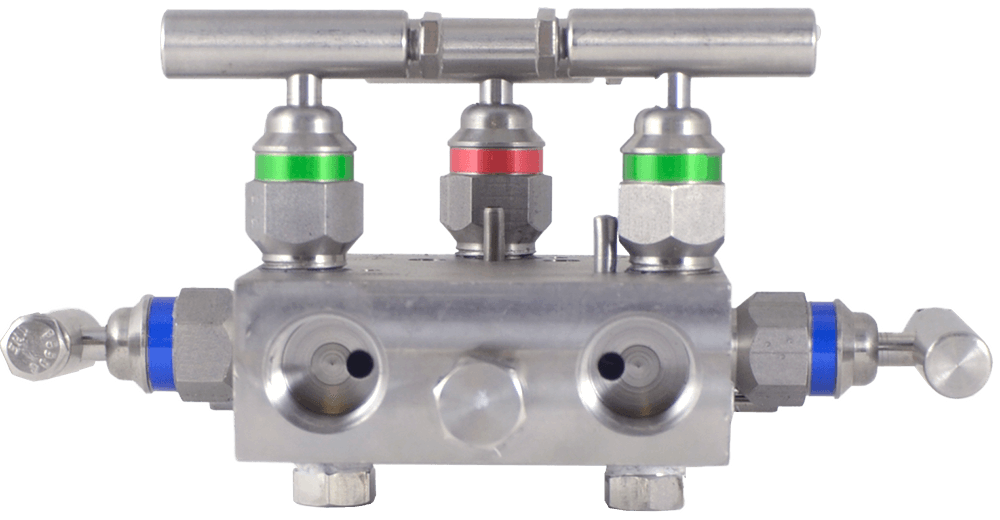

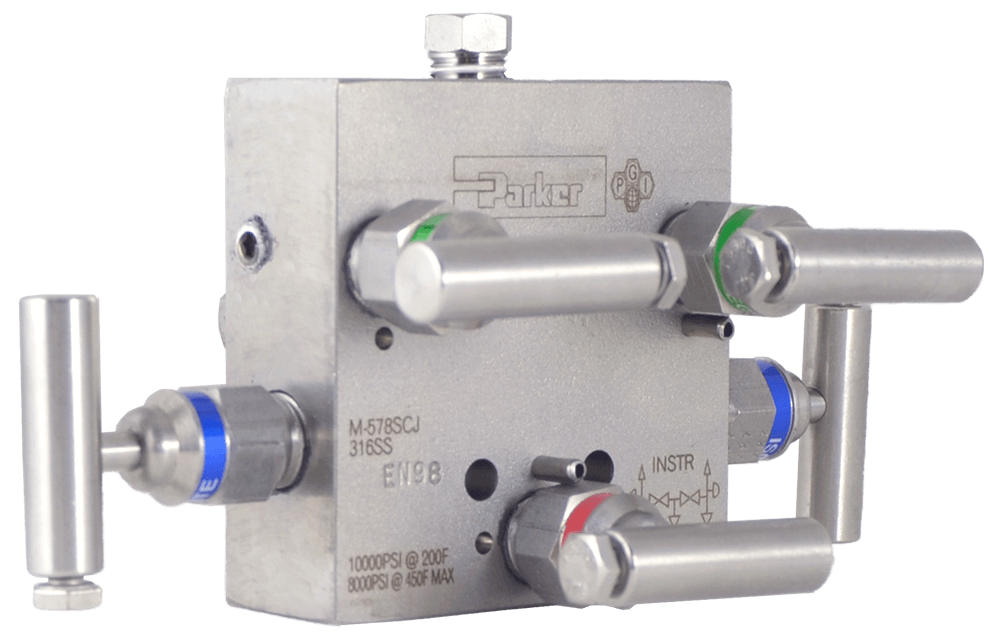

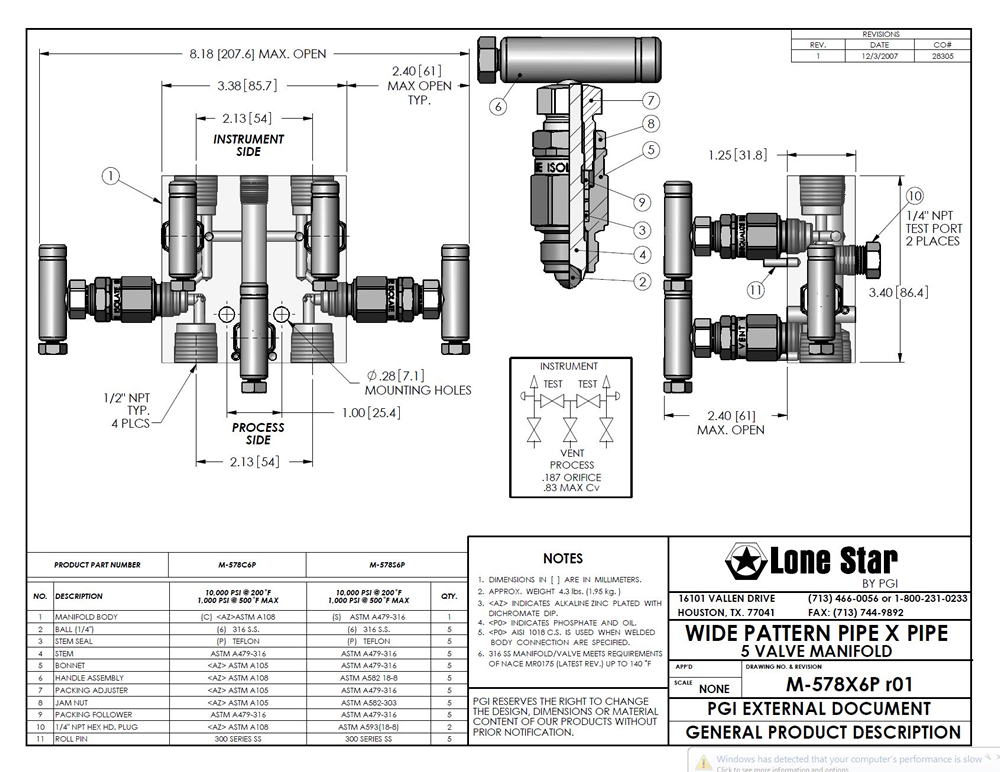

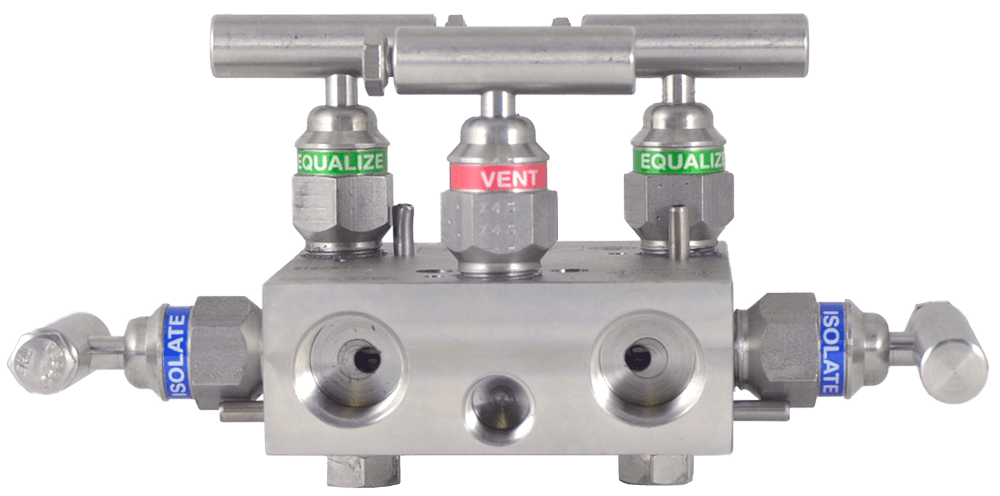

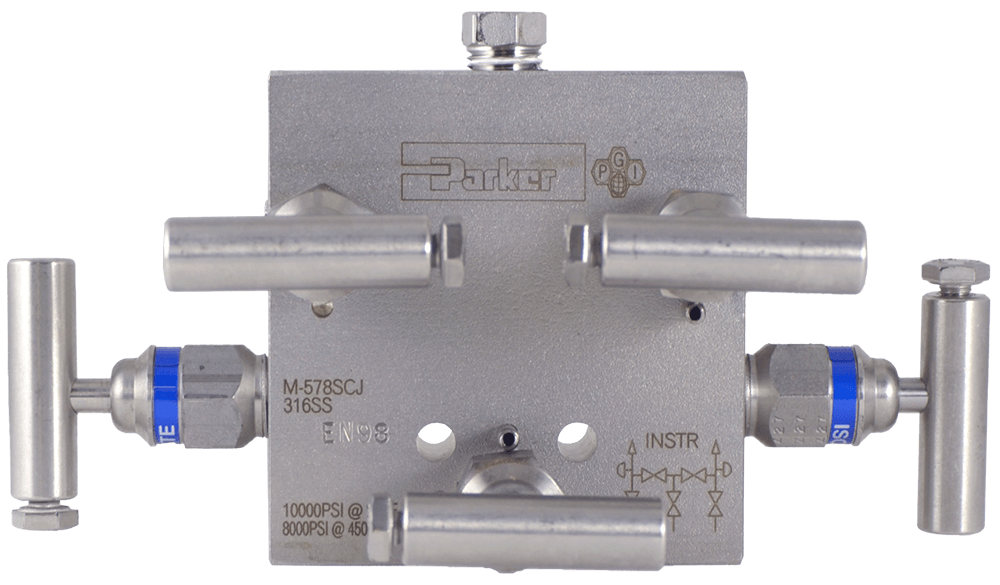

main_M-578SCJ.png 003_M-578SCJ_LeftAngle.png 004_M-578SCJ_RightAngle.png 005_M-578SCJ_Rear.png 006_M-578SCJ_Bottom.png 007_M-578SCJ_Top.png 002_M-578_Drawing.png
main_M-578SCJ.png 003_M-578SCJ_LeftAngle.png 004_M-578SCJ_RightAngle.png 005_M-578SCJ_Rear.png 006_M-578SCJ_Bottom.png 007_M-578SCJ_Top.png 002_M-578_Drawing.png
Images are representations only.
  • Design: Hard Seat Five-Valve Wide Pattern Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female
  • Test Ports: 1/4" NPT
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 6000 psi @ +200°F (+93°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Unique configuration for "no finger pinching" operation of all five valves
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
Close

Displaying prices & availability for None, United States in USD. Change location or currency.

SEE M-578-SCJ
PGI 5-Valve Manifold, SST, 1/2" NPT x 1/2" NPT, 0.187 Orifice, Carbide Ball, Teflon Core, NACE
2 - 4 weeks
$619.00USD
$9.99 Shipping
available on backorder
M-578-SCJ
PGI 5-Valve Manifold, SST, 1/2" NPT x 1/2" NPT, 0.187 Orifice, Carbide Ball, Teflon Core, NACE
1 - 2 weeks
$754.00USD
$9.99 Shipping
available on backorder
Close

M-578

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material

View Details

M-578

Out of Stock
Close

Specifications

Brand

Enclosure, Body Material

  • ASTM A479-316 Stainless Steel

Handle Assembly Material

  • ASTM A581 18-8 300 Stainless Steel

Maximum Cv Ratings

  • Cv 0.53 on 0.187" Orifice

NACE & NIST

  • NACE MR-0175, ISO 15156-36

NPT Inlet

  • 1/2" NPT Female

NPT Outlet

  • 1/2" NPT Female

Orifice Size

  • 0.187"

Packing Material

  • Teflon
  • Teflon Pressure-Core® Stem Seal for Low Temperatures -45.5° C (-50° F)

Pressure Rating

  • psi: 10,000 at 93° C (200° F)
  • psi: 8,000 at 232° C (450° F)

Process Temperature

  • -45° to 232° C (-50° to 450° F)

Seal Retainer

  • ASTM A479-316 Stainless Steel

Seat/Seal Material

  • Carbide

Stem Material

  • ASTM A479-316 Stainless Steel

Valves

  • Five
Close

Review this product and let us know your experiences

Write a Review
Close

Similar Products

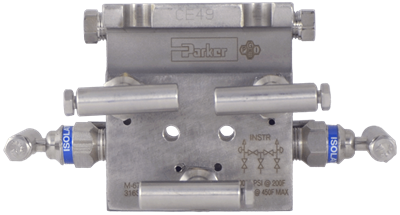

M-678 Five Valve Manifold
M-678 Five Valve Manifold
PGI International

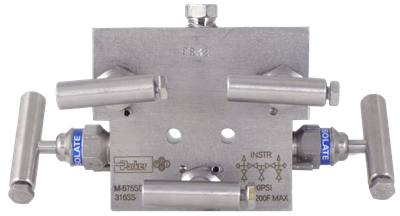

M-575 Five-Valve Manifold
