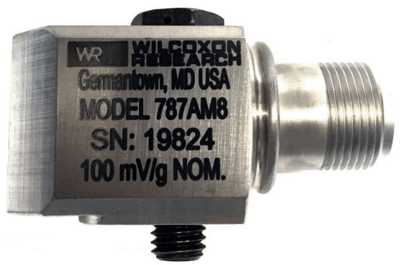

Model 787A-M8-D2 Low Profile Industrial Accelerometer

Brand: Wilcoxon Sensing Technologies
Features:
  • Hazardous area certified for Class I, Div 2/Zone 2 locations - non-incendive
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection
  • Reverse wiring protection
  • Ideal for moderate industrial environ- ments, conveyors and drives
show more
Features:
  • Hazardous area certified for Class I, Div 2/Zone 2 locations - non-incendive
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection
  • Reverse wiring protection
  • Ideal for moderate industrial environ- ments, conveyors and drives

Specifications

Approvals & Certifications

  • ATEX Class I, Zone 2 Ex NA II T4 Ta = 120° C
  • CE
  • CSA (C,US) Class I, Division 2, Grade A, B, C, D

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Cable (J10 / J9T2A), No more than 100 feet
  • Mating Connector: R6D2
  • Output Connector: 2-Pin, MIL-C-5015 Style

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Corrosion-Proof
  • Hazardous Area
  • Non-Incendive

Frequency

  • Frequency Response (± 10%): 1 to 5,000 Hz
  • Frequency Response (± 3 dB): 0.7 to 10,000 Hz
  • Resonance Frequency: 22 kHz

Mounting

  • M8 Captive Hex Head Screw with 0.046" Diameter Safety Wire Hole

Noise

  • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 700 µg
  • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 100 to 1,000 Hz): 5 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum 100 Ω

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range: 80 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Maximum
  • Electromagnetic Sensitivity, Equivalent G, Maximum
  • Sensitivity, ± 10%, 25° C (77° F): 100 mV/g
  • Transverse Sensitivity: Maximum 5% of axial

Shock

  • Shock Limit, Minimum: 5,000 G

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G

Voltage

  • Bias Output Voltage, Nominal: 12 Vdc
