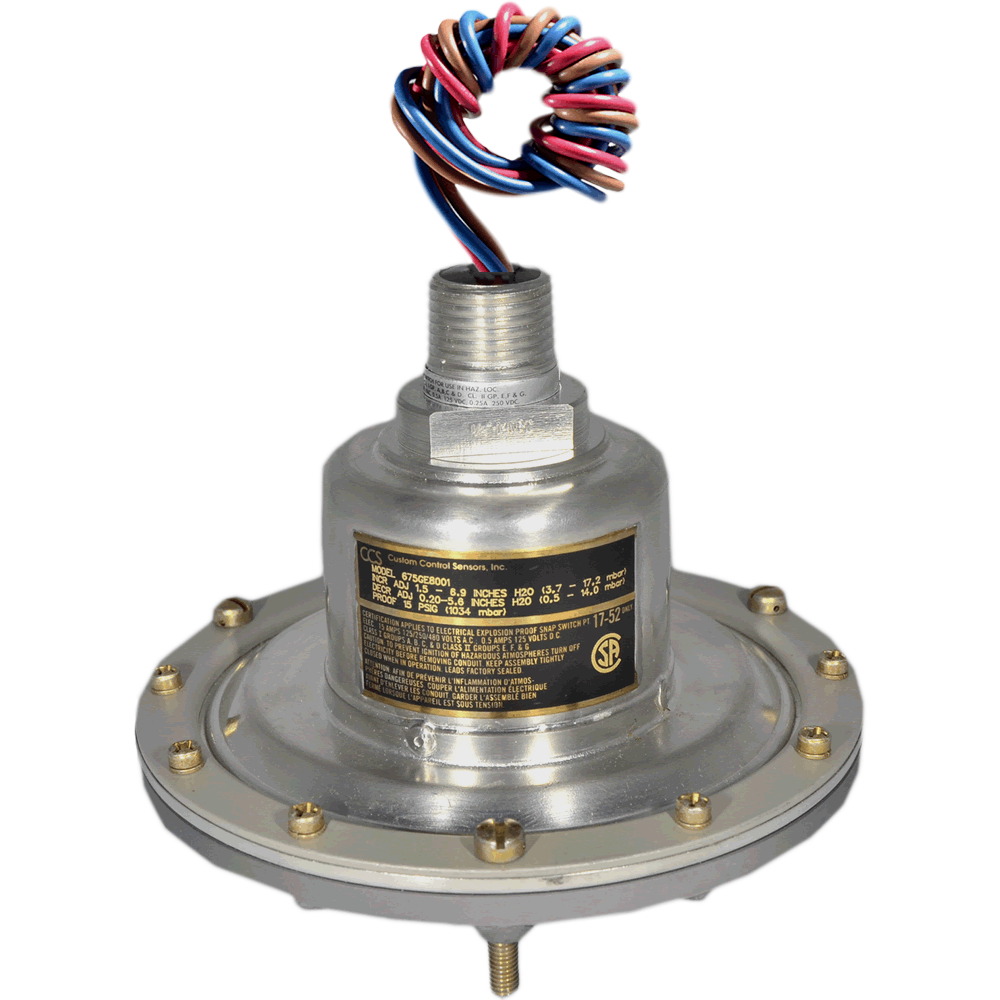

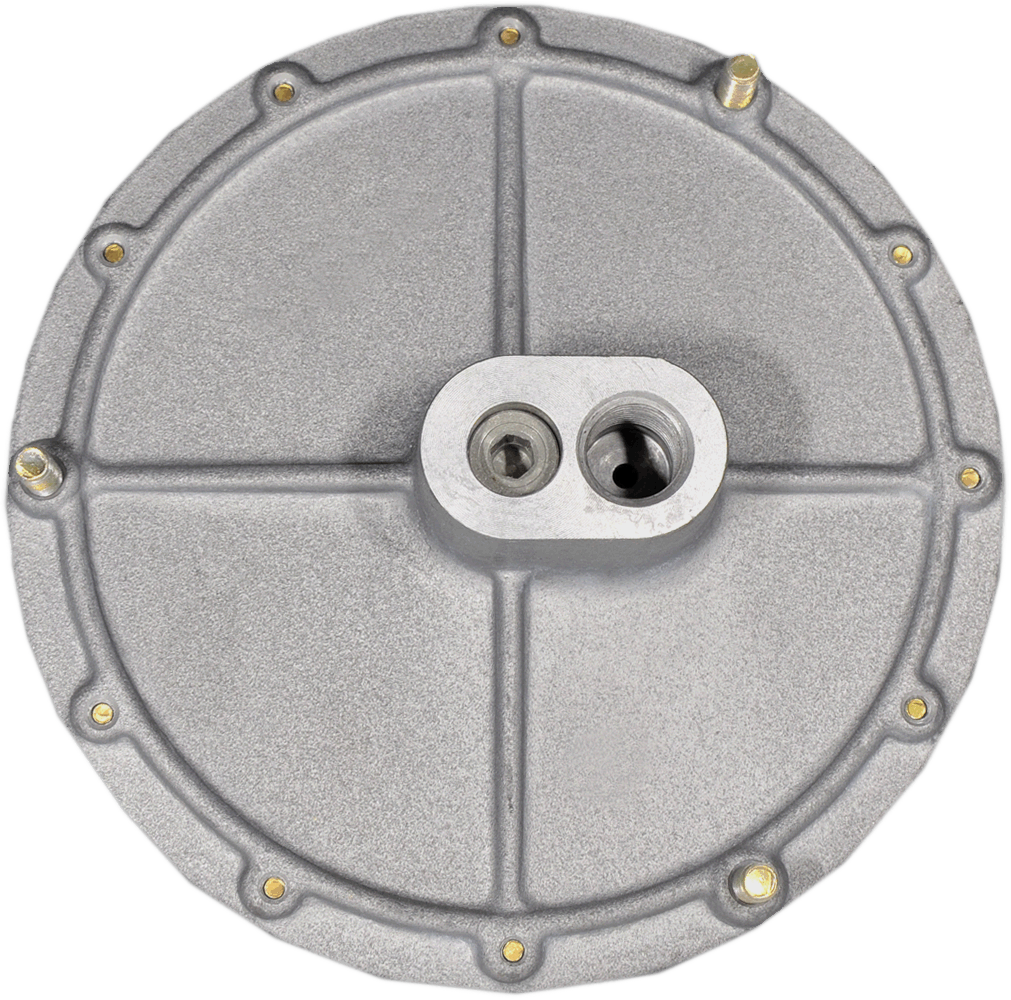

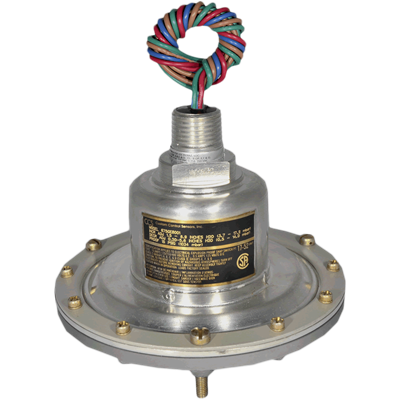

675G8000 Series Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 31 inches H2O, 3.7 to 77.2 mbar
    • Decreasing: 0.7 to 28 inches H2O, 1.8 to 69.8 mbar
  • Deadband: Approximately 0.8 to 3.0 inches H2O, 1.9 to 7.5 mbar
  • System Pressure (Maximum): 14.75 psi, 101.70 kPa, 1017 mbar
  • Proof Pressure: 25 psig, 172.37 kPa, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • General Purpose
show more
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 31 inches H2O, 3.7 to 77.2 mbar
    • Decreasing: 0.7 to 28 inches H2O, 1.8 to 69.8 mbar
  • Deadband: Approximately 0.8 to 3.0 inches H2O, 1.9 to 7.5 mbar
  • System Pressure (Maximum): 14.75 psi, 101.70 kPa, 1017 mbar
  • Proof Pressure: 25 psig, 172.37 kPa, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • General Purpose
675G8001
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Buna-N O-Ring, SPDT
10 - 12 weeks
675G8005
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Buna-N O-Ring, SPDT
10 - 12 weeks

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - N.W. Territories
  • CSA
  • cUL
  • EMC
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate

  • Inches WC: 0.8 to 3.0
  • mbar: 1.9 to 7.5

Diaphragm Material

  • Polyimide

Electrical Connectors

  • Electrical Connector with 4-Blades, Conforms to DIN-43650

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.5 A at 125 Vdc, 0.2 A at 250 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N
  • Viton

Process Connection Material

  • Aluminum

Proof Pressure

  • mbar: 1724
  • psig: 25

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • Inches WC: -0.7 to 31
  • mbar: -1.7 to 77.2

Set Point - Increasing

  • Inches WC: -1.5 to 31
  • mbar: -3.7 to 77.2

Switch Type

  • SPDT

System Pressure

  • kPa: 101.7
  • mbar: 1,017
  • psig: 14.75
