INDI-PSD Hand Held Display for Strain Gauge Based Tranducer

Brand: Sensy S.A.
The INDI-PSD is a hand held indicator for load cells, force transducer or torque meters based on strain gauge technology.
Features
  • 7 digits LCD display
  • High resolution
  • Light (250 grams)
  • Dual range
  • Large autonomy (450 hrs in power save mode)
  • TEDS enabled
  • RS232 output (INDI-PSD 232 only)
  • Options:
    • Leather case with shoulder strap and clear viewing (option CASE-PSD)
    • Rechargeable batteries with charging unit (230 Vac) (option BATT-PSD)

show more

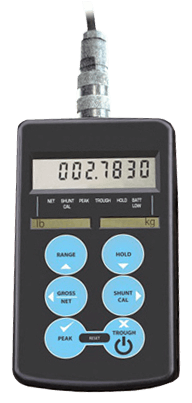

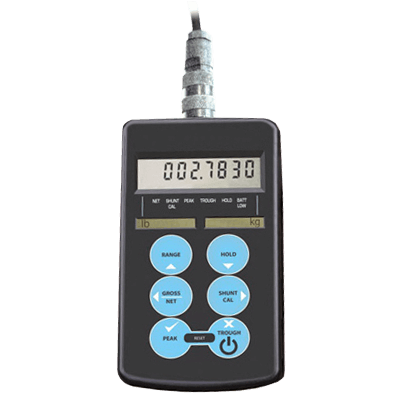

Images are representations only.
The INDI-PSD is a hand held indicator for load cells, force transducer or torque meters based on strain gauge technology.
Features
  • 7 digits LCD display
  • High resolution
  • Light (250 grams)
  • Dual range
  • Large autonomy (450 hrs in power save mode)
  • TEDS enabled
  • RS232 output (INDI-PSD 232 only)
  • Options:
    • Leather case with shoulder strap and clear viewing (option CASE-PSD)
    • Rechargeable batteries with charging unit (230 Vac) (option BATT-PSD)


INDI-PSD

Model

Specifications

Brand

Applications

  • Force Measurement
  • Mobile Weighing
  • Torque Measurement

Approvals & Certifications

  • CE

Battery Life

  • 35 Hours (450 Hours in Low Power Mode)

Communication

  • RS-232

Display

  • 7-Digits LCD Display (8.8 mm)

Environmental Protection

  • IP65
  • NEMA 4
  • Water-Proof

Input

  • 0 to 5 mV/V

Linearity

  • <± 0.005% of Full Scale - Linearity Error

Load Impedance

  • 85 to 5000 ohms - Transducer

Power Supply

  • 2 x AA Alkaline Batteries

Sensor Excitation

  • 5 Vdc (59 mA - Maximum

Service Temperature

  • -10° to +50° C (14° to 122° F)

Storage Temperature

  • -40° to 65° C (-40° to 150° F)

Temperature Coefficient

  • <± 0.005% of Full Scale/10° C (18° F) - Temperature Coefficient of the Sensitivity
  • <± 0.007% of Full Scale/10° C (18° F) - Temperature Coefficient of Zero Signal
