Description

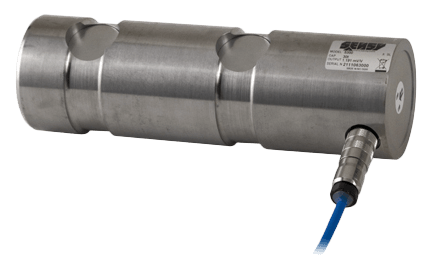

Load pin with standard dimensions.
Features- CE certified for hoisting applications
- Sturdy design
- Stainless steel
- Protection IP 65
- Easy to install
- Complete range of "CE" certified electronics and load limiters
- Cable length: 6m
- Available options:
- ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
- Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
- Protection IP 67 or special for marine environment
- High service temperature (up to 180° C)
- Axial connector
- Axial or radial cable gland
Specifications
Specifications
Applications
- SL - HOIST: Hoisting Devices & Crane's Security in Combination with a Load Limitation Electronic (BRIDGEBOY, CRANEBOY)
Approvals & Certifications
- ATEX Intrinsic Safety Ex II 1 GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
- CE
- CSA
- IECEx
Cable Length
- 19.69 feet (6 m)
Communication
- RS-232C, RS-485
- USB
Electrical Connectors
- DIN 45322
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP65
- IP67
Excitation Voltage
- 10 Vdc
- 3-12 Vdc - Nominal Range
Insulation Resistance
- > 5,000 MΩ
Load
- > 500 % of Full Scale - Breaking Load
- 75 % of Full Scale - Permissible Dynamic Loading
Load Limit
- 200 % of Full Scale
Repeatability
- Error: < ± 0.25 % of Full Scale
Resistance
- Input/Output: 352 ± 2 ohms
Sensitivity
- Nominal Sensitivity: 1 mV/V
Service Temperature
- -30° to 70° C (-22° to 158° F)
Static Lateral Force
- 150 % of Full Scale
Storage Temperature
- -50° to 85° C (-58° to 185° F)
Temperature Coefficient
- < ± 0.2 % of Full Scale/10° C (18° F)
Zero Balance
- ± 0.02 mV/V
