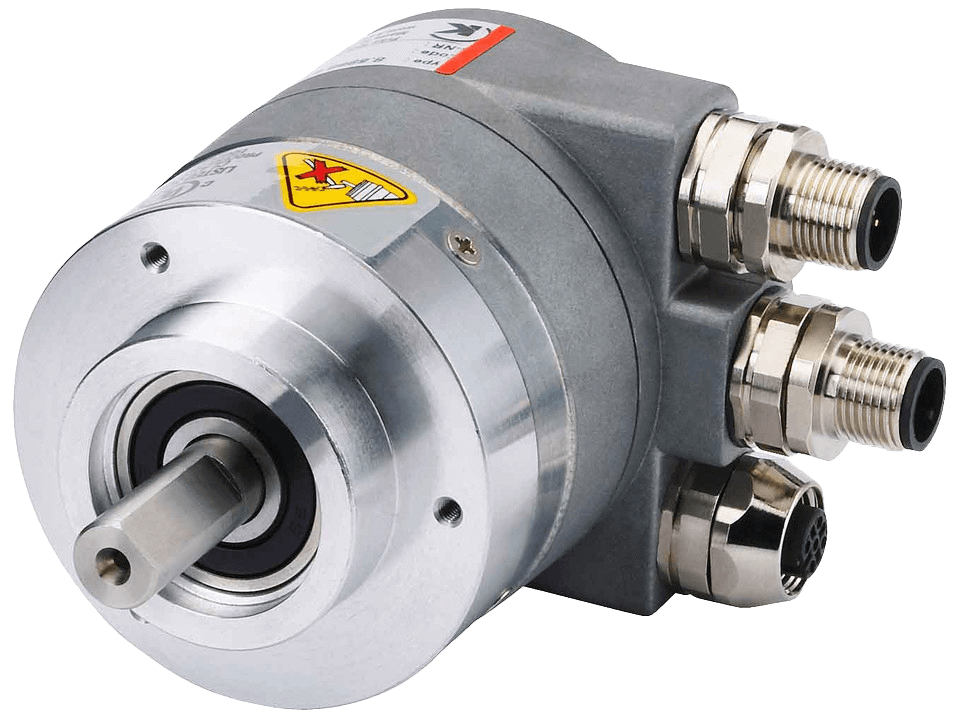

5858 (Shaft) Absolute Encoder

Brand: Kuebler Inc
The single turn encoders 5858 with PROFINET interface and optical sensor technology are ideal for use in all applications with a PROFINET interface.

The encoder supports the IRT mode and is therefore ideal for real time applications. Easy start-up thanks to the "Ezturn for PROFINET" software supplied with the encoder.
FeaturesN
show more
The single turn encoders 5858 with PROFINET interface and optical sensor technology are ideal for use in all applications with a PROFINET interface.

The encoder supports the IRT mode and is therefore ideal for real time applications. Easy start-up thanks to the "Ezturn for PROFINET" software supplied with the encoder.
FeaturesN

Specifications

Brand

Approvals & Certifications

  • CE Compliant: EMC Guideline 2004/108/EC
  • Ex Approval for Hazardous Area: Zone 2 & 22
  • RoHS Compliant: Guideline 2011/65/EU
  • UL (C,US): File 224618

Capacity

  • Axial Load Capacity of Shaft: 40 N
  • Radial Load Capacity of Shaft: 80 N

Communication

  • PROFINET IO

Configuration

  • Ezturn Software for PROFINET

Consumption

  • Power Consumption (No Load): 200 mA - Max.

Cycling Rate

  • ≤ 1 millisecond

Diameter

  • Clamping & Synchro Flange: 2.28” (58 mm)
  • Square Flange: 2.5” (63.5 mm)

Display

  • LED Display

Electrical Connectors

  • 3 x M12 Connector, 4-Pin

Enclosure, Body Material

  • Zinc Die Cast Housing

Environmental Protection

  • IP65
  • IP67

Flange Material

  • Aluminum

Flange Type - Other

  • Clamping Flange
  • Square Flange
  • Synchro Flange

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Power Supply

  • 10-30 Vdc

Resolution

  • Singleturn Resolution: 1 to 65,535 (16-bits), Scaleable
  • Total Resolution: 1 to 65,535 (13-bits), Scaleable

Reverse Polarity Protection

  • Yes

Shaft Material

  • Stainless Steel

Shock

  • Shock Resistance According to EN 60068-2-27: 2,500 m/sec², 6 milliseconds

Speed

  • Maximum

Torque

  • Starting Torque (IP67): < 0.05 Nm
  • Starting Torque: < 0.01 Nm

Vibration

  • Vibration Resistance According to EN 60068-2-6: 100 m/sec², 55 to 2,000 Hz
