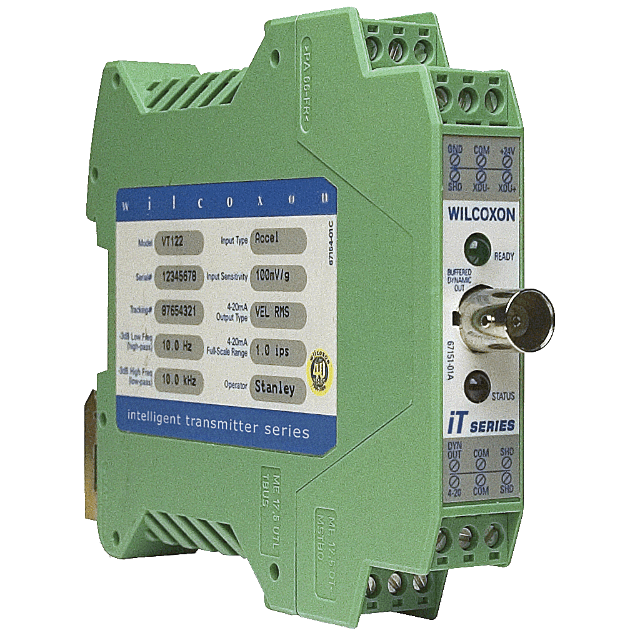

Model iT001/iT002/iT004 Power Supply

Brand: Wilcoxon Sensing Technologies
Our power supplies provide 24 Vdc to power the Intelligent Transmitter series of modules. The iT 100/200 module series current requirements are listed in the table below. The sum of the total current needed for each module must be less than the current capabilities of the power supply chosen.
Features
  • Power supplies for transmitters
  • Usable at high temperatures
  • AC and DC voltage
  • Manufactured in an approved ISO 9001 facility
show more
Our power supplies provide 24 Vdc to power the Intelligent Transmitter series of modules. The iT 100/200 module series current requirements are listed in the table below. The sum of the total current needed for each module must be less than the current capabilities of the power supply chosen.
Features
  • Power supplies for transmitters
  • Usable at high temperatures
  • AC and DC voltage
  • Manufactured in an approved ISO 9001 facility

Specifications

Approvals & Certifications

  • CE
  • UL

Approvals & Certifications

  • ISO 9001

Electrical Connectors

  • Conductor Gauge: 14 to 24 AWG
  • Connection Typical: IT042 Screw/Plug Connection

Environmental Protection

  • IP20

Humidity

  • Operating, Maximum

Indication

  • Green LED (Constant: Proper Supply Voltage, Flashing: BOV Out of Range) & Red LED (Constant: Error Condition, Flashing: Normal Operation)

Input

  • Input Fuse, Internal/Slow Blow: 1.25 A - Model IT001
  • Input Fuse, Internal/Slow Blow: 2.50 A
  • Input Fuse,Internal/Slow Blow: 3.15 A
  • Input Voltage AC, (45 to 65 Hz): 85-264 Vac
  • Input Voltage DC: 90-350 Vdc

Length

  • Stripping Length: 0.28" (7 mm)

Mounting Position

  • Mounting Positions on DIN Rail: Horizontal (with Zero Spacing)
  • Mounting Positions on DIN Rail: Vertical (with 1.97" (50 mm) Spacing)

Operating Temperature

  • -25° to 70° C (-13° to 158° F)

Output

  • Nominal Output Voltage: 24 Vdc ± 1%
  • Output Current: 1 A [up to 60° C ( 140° F)] - Model IT001
  • Output Current: 2 A [up to 60° C (140° F)] - Model IT002
  • Output Current: 4 A [up to 60° C (140° F)] - Model IT004

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Voltage

  • Insulation Voltage Input/Output: 3 kV (Typical Test) - Model IT001, IT004
  • Insulation Voltage Input/Output: 4 kV (Typical Test) - Model IT002
