Model 432.10, 432.15 Mini Diaphragm Pressure Gauge

Brand: WIKA Instruments Ltd.
The mini diaphragm gauge was developed for high purity applications with limited space requirements, such as smaller integrated gas stick and gas box assemblies.

The nominal sizes of 1" and 1.3" are ideal for applications involving gaseous, liquid and corrosive media up to 160 psi.
Features
  • No dead space in the pressure gauge.
  • Low internal volume for reducing particle generation and entrapment.
  • Compact design.
  • Helium leak tested, leak rate ≤ 10^-9 mbar · l/s.
  • Electropolished internals and case, internal surface finish Ra < 0.25 μm (Ra < 10 μin).
show more
The mini diaphragm gauge was developed for high purity applications with limited space requirements, such as smaller integrated gas stick and gas box assemblies.

The nominal sizes of 1" and 1.3" are ideal for applications involving gaseous, liquid and corrosive media up to 160 psi.
Features
  • No dead space in the pressure gauge.
  • Low internal volume for reducing particle generation and entrapment.
  • Compact design.
  • Helium leak tested, leak rate ≤ 10^-9 mbar · l/s.
  • Electropolished internals and case, internal surface finish Ra < 0.25 μm (Ra < 10 μin).

Specifications

Version

  • Diaphragm pressure gauge

Nominal Size (NS)

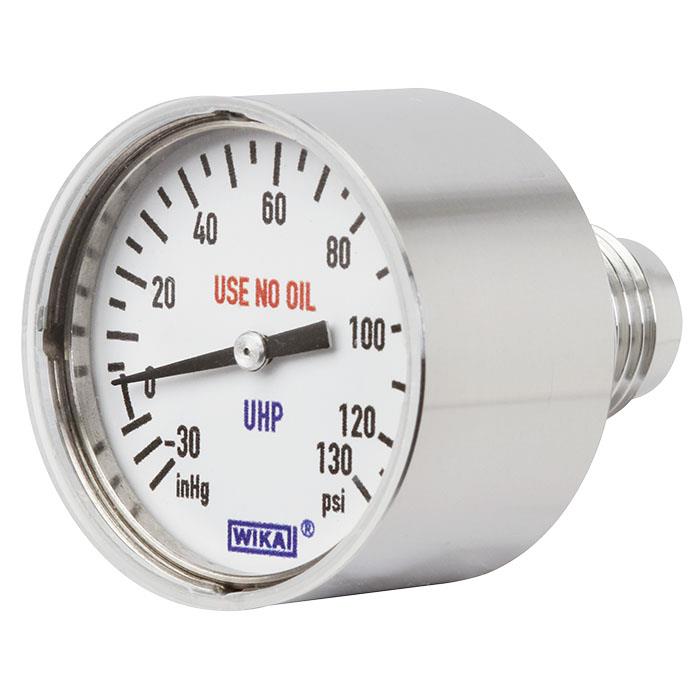

  • 1.3" (33 mm) for model 432.15

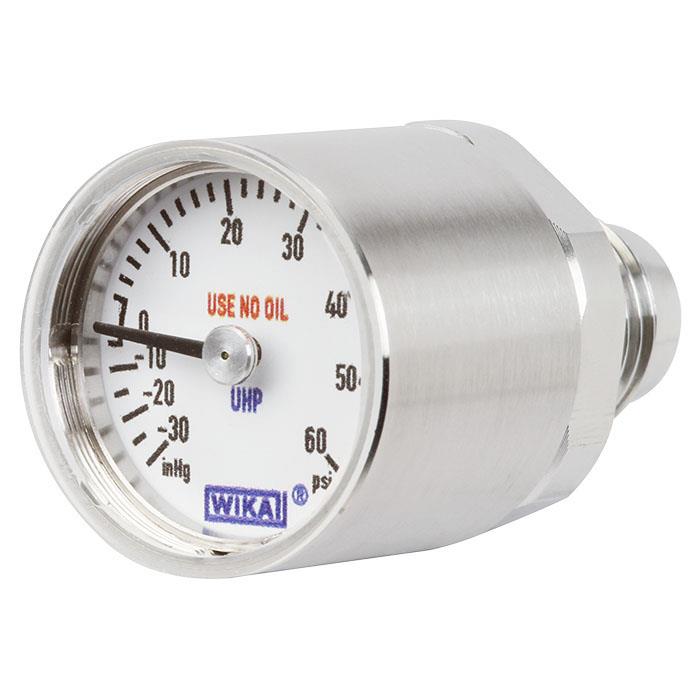

  • 1.0" (25.4 mm) for model 432.10

Accuracy Class

  • Grade C per ASME B40.1

Scale Range

  • or all other equivalent vacuum or combined pressure and vacuum ranges
  • 0 to 160 psi
  • -30 inHg ... +160 psi
  • -30 inHg ... +130 psi
  • -30 inHg ... +60 psi

Pressure Limitation

  • Short time: 1.3 x full scale value
  • Fluctuating: 0.9 x full scale value
  • Steady: Full scale value

Permissible Temperature Range

  • Ambient: -10 ... +140° F (-10 ... +60° C)
  • Medium: ≤ 140° F (≤ 60° C)

Ingress Protection

  • IP54 per IEC/EN 60529

Process Connection

  • 1/4 fixed Male face Seal 9/16-18 UNF

Pressure Element

  • Inconel® 718

Dial

  • Black lettering
  • Aluminium, white

Case

  • Stainless steel 316L

Pointer

  • Aluminium, black

Window

  • PMMA

Typical Applications

  • For gaseous and liquid, also aggressive media for demanding high purity applications, also in aggressive ambience
  • Semiconductor and flat panel industry
  • Gas distribution systems
  • Medical gases
  • Hook-up application
