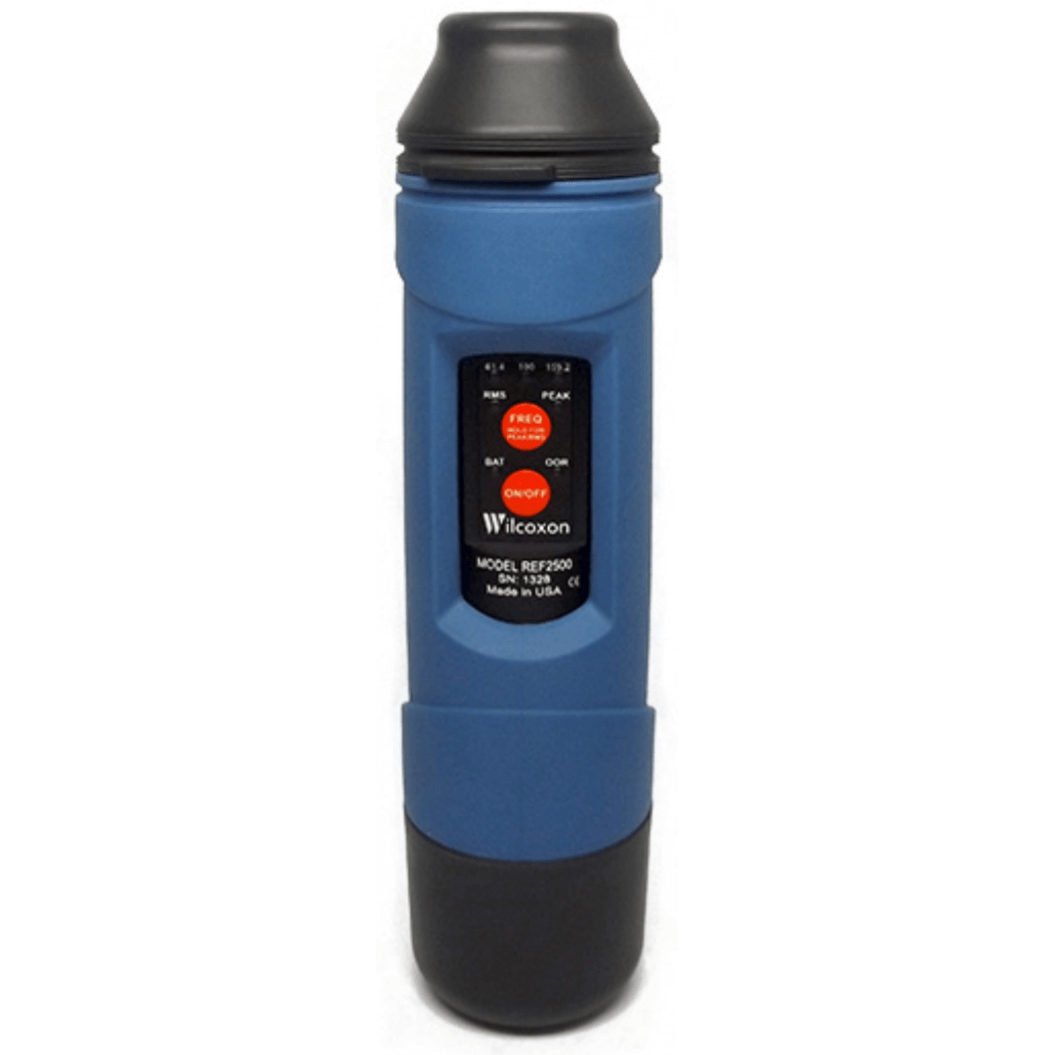

Model REF2510 ReferenceMate Industrial Monitoring Kit

Brand: Wilcoxon Sensing Technologies
The ReferenceMate portable vibration reference source enables users in the field to easily verify sensor performance and the integrity of the cabling between the sensor and the online system. A built-in reference accelerometer assures that a 1 g test level is maintained for sensors weighing up to 250 grams.

Frequency of operation and measurement type (peak/RMS) are push button selected.
  • 61.4 Hz for imperial measurements, where 1 g is equal to 1 inch per second (ips), for verification of acceleration and velocity
  • 100.0 Hz to confirm sensor calibration value
  • 159.2 Hz for metric measurements, where 1 g is equal to 9.81 m/sec and 9.81 mm/sec
LEDs notify the user when battery condition falls below operational levels or if the unit is overloaded. For calibration verification, reference test points are provided to verify the output of the internal sensor.
Features
  • 1 g selectable reference source (61.4, 100.0 or 159.2 Hz)
  • Crossover frequencies designed for easy velocity verification
  • Verify and adjust entire systems from transducers to measurement equipment
  • User selections retained on power off
  • Test vibration sensors weighing up to 250 g
  • Accessories for every application
  • Optional cube for checking triaxial sensor ouputs simultaneously
  • Standard AA battery operation for field use
  • Optional rugged boot offers protection in harsh plant environments
show more
The ReferenceMate portable vibration reference source enables users in the field to easily verify sensor performance and the integrity of the cabling between the sensor and the online system. A built-in reference accelerometer assures that a 1 g test level is maintained for sensors weighing up to 250 grams.

Frequency of operation and measurement type (peak/RMS) are push button selected.
  • 61.4 Hz for imperial measurements, where 1 g is equal to 1 inch per second (ips), for verification of acceleration and velocity
  • 100.0 Hz to confirm sensor calibration value
  • 159.2 Hz for metric measurements, where 1 g is equal to 9.81 m/sec and 9.81 mm/sec
LEDs notify the user when battery condition falls below operational levels or if the unit is overloaded. For calibration verification, reference test points are provided to verify the output of the internal sensor.
Features
  • 1 g selectable reference source (61.4, 100.0 or 159.2 Hz)
  • Crossover frequencies designed for easy velocity verification
  • Verify and adjust entire systems from transducers to measurement equipment
  • User selections retained on power off
  • Test vibration sensors weighing up to 250 g
  • Accessories for every application
  • Optional cube for checking triaxial sensor ouputs simultaneously
  • Standard AA battery operation for field use
  • Optional rugged boot offers protection in harsh plant environments

Specifications

Applications

  • Cable Integrity Checks
  • Industrial & Manufacturing Equipment
  • Online Monitoring Systems
  • Rotating Machinery

Approvals & Certifications

  • CE

Enclosure, Body Material

  • 6061 Aluminum, Black Hard Coat Anodized

Environmental Protection

  • IP54

Indication

  • LED

Materials of Construction

  • Boot Material: ThermoPlastic Rubber - Model REF2510R

Mounting

  • Mounting Thread: 1/4"-28 Female

Operating Temperature

  • -10° to 55° C (14° to 131° F)

Power

  • DC Power: 1 A at 6 Vdc ± 5%, Center Positive

Power Requirement

  • Internal Battery: 4 x AA Alkaline Batteries

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Torque

  • Mounting Torque, Maximum 10 in-lb (112 N-cm)

Turn-Off Time

  • Automatic Switch Off Time: Approximately 90 ± 10 seconds Defeatable

Update Time

  • Ramp-up Time: ≤ 3 seconds
