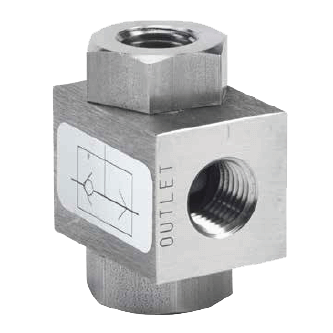

4500 Series Shuttle Valve

Brand: Midland-ACS
316L Stainless Steel Shuttle Valves for Three-Way "OR" Function.
Features
  • Specifically Designed for Severe Environments
  • Ambient Temperature Range -20º to 70º C (-4° to 158º F)
  • Low temperature option available
  • 316L Stainless Steel
  • 5 sizes available
show more
Images are representations only.
316L Stainless Steel Shuttle Valves for Three-Way "OR" Function.
Features
  • Specifically Designed for Severe Environments
  • Ambient Temperature Range -20º to 70º C (-4° to 158º F)
  • Low temperature option available
  • 316L Stainless Steel
  • 5 sizes available

4500 Series Shuttle Valve

Process Connection

Temperature Options

Specifications

Brand

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Approvals & Certifications

  • ATEX
  • CE
  • EAC

Enclosure, Body Material

  • 316L Stainless Steel

Flow Capacity

  • 1/2"-126 scfm (213 m³/hour), 3.7 Cv
  • 1/4” - 45 scfm (76.5 m³/hour), 1.3 Cv
  • 1” - 319 scfm (540 m³/hour), 15 Cv
  • 3/4” - 194 scfm (329.4 m³/hour), 9 Cv
  • 3/8” - 65 scfm (110 m³/hour), 1.9 Cv

Internal Part Material

  • 316L Stainless Steel

Media

  • Air
  • Gases - Filtered Lubricated or Non-Lubricated
  • Inert Gas
  • Liquids - Low Pressure Hydraulic, Mineral Oil or Water
  • Sour Natural Gas
  • Sweet Natural Gas

NPT Inlet

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

NPT Outlet

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

Pressure Range

  • psi: 0 to 174 (kPa: 0 to 1,200, bar: 0 to 12)

Seat/Seal Material

  • EPDM on Low Temperature Option
  • Nitrile

Spring Material

  • 316 Stainless Steel

Temperature Range

  • -20° to 70° C (-4° to 158° F)
  • -50° to 90° C (-58° to 194° F) Low Temperature Version
