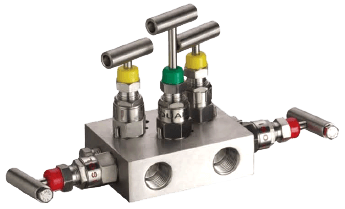

Description
- Inlet Connection: 1/2" NPT Female
- Outlet Connection: 1/2" NPT Female, Flange
- Standard Features:
- PTFE Packing
- Max Pressure 6000 psi @ +100°F (+38°C)
- Non-Rotating trim provides bubble tight shut-off
- Construction Material:
- Body: Stainless Steel
- Trim: Stainless Steel
Configure
5-Valve
Valve Type

Enclosure Material

Mounting

Mounting

Mounting

Mounting

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Drain/Vent

Specifications
Specifications
Brand
Enclosure, Body Material
- 316L Stainless Steel
Handle Assembly Material
- 304 Stainless Steel
NACE & NIST
- NACE
NPT Inlet
- 1/2" NPT Female
NPT Outlet
- 1/2" NPT Female
Pressure Rating
- psig: 6,000 at 38° C (100° F)
Seal Retainer
- PTFE
Valves
- Five
Documentation
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products

2-Valve Manifold
Mac-Weld Machining Ltd.

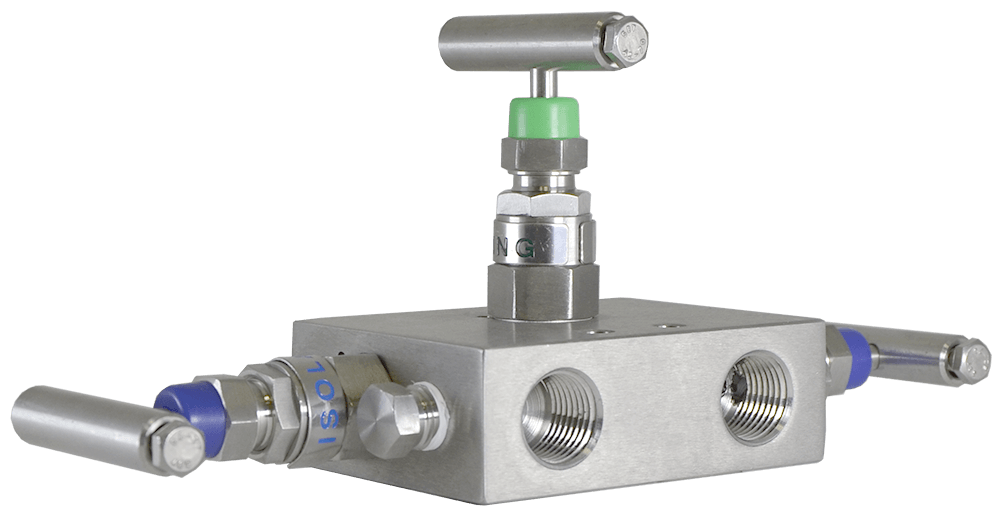

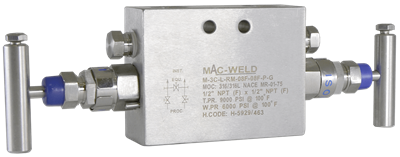

3-Valve Series
Mac-Weld Machining Ltd.

Gauge Valve
Mac-Weld Machining Ltd.

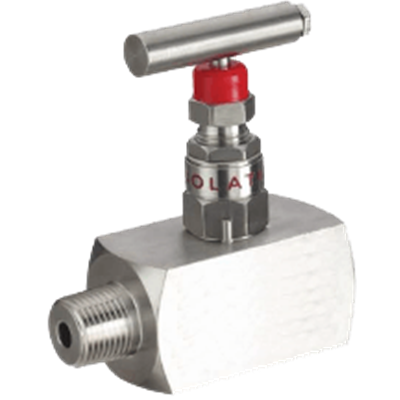

Needle Valve
