Images are representations only.

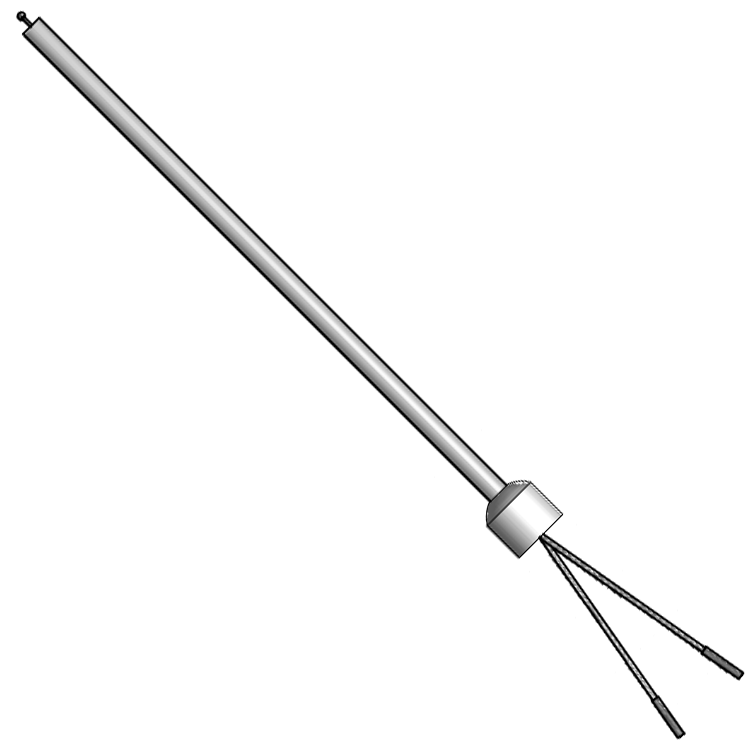

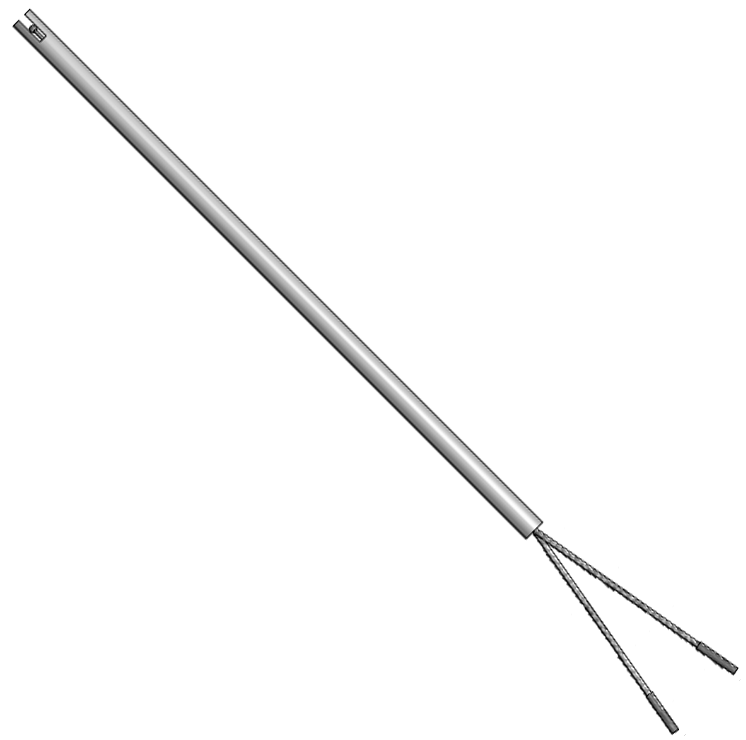

The noble-metal platinum thermocouple elements illustrated on this catalog page are replacement elements for use in Pyromation's complete high temperature industrial thermocouple assemblies as found elsewhere in this catalog section. These replacement elements are also compatible for use in other manufacturers' high temperature thermocouple assemblies.
All insulated elements are supplied with high temperature alumina insulators and are available with the options as listed in the below documents. Element types R, S, and B are supplied with a fusion weld.
Noble-Metal Platinum Thermocouple Elements
Element "X" Length
