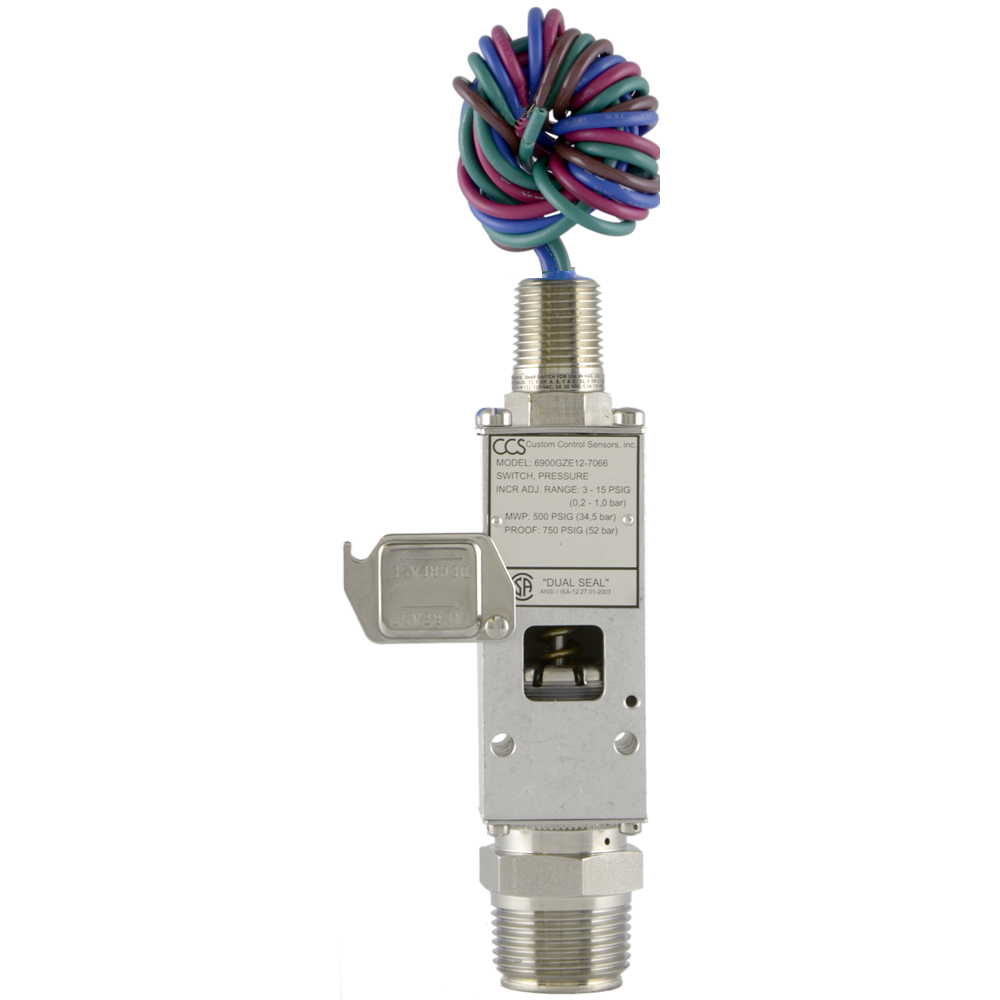

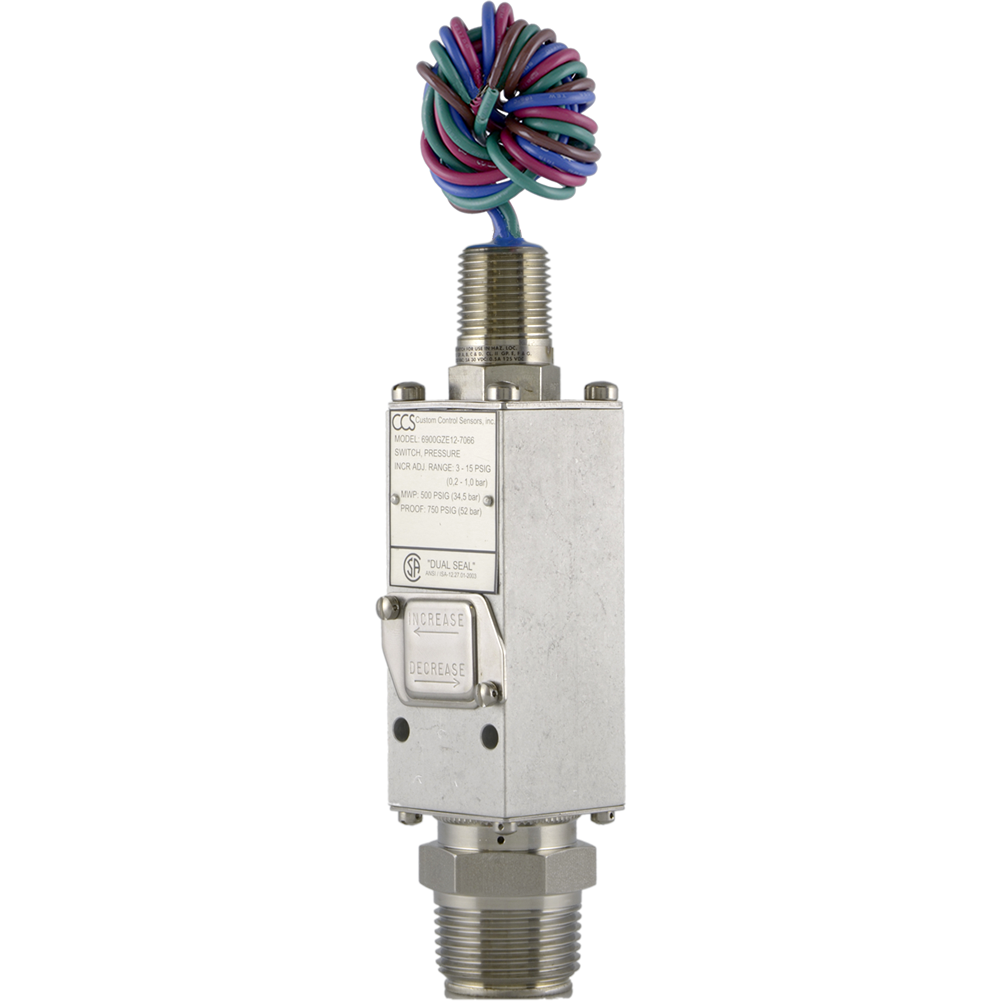

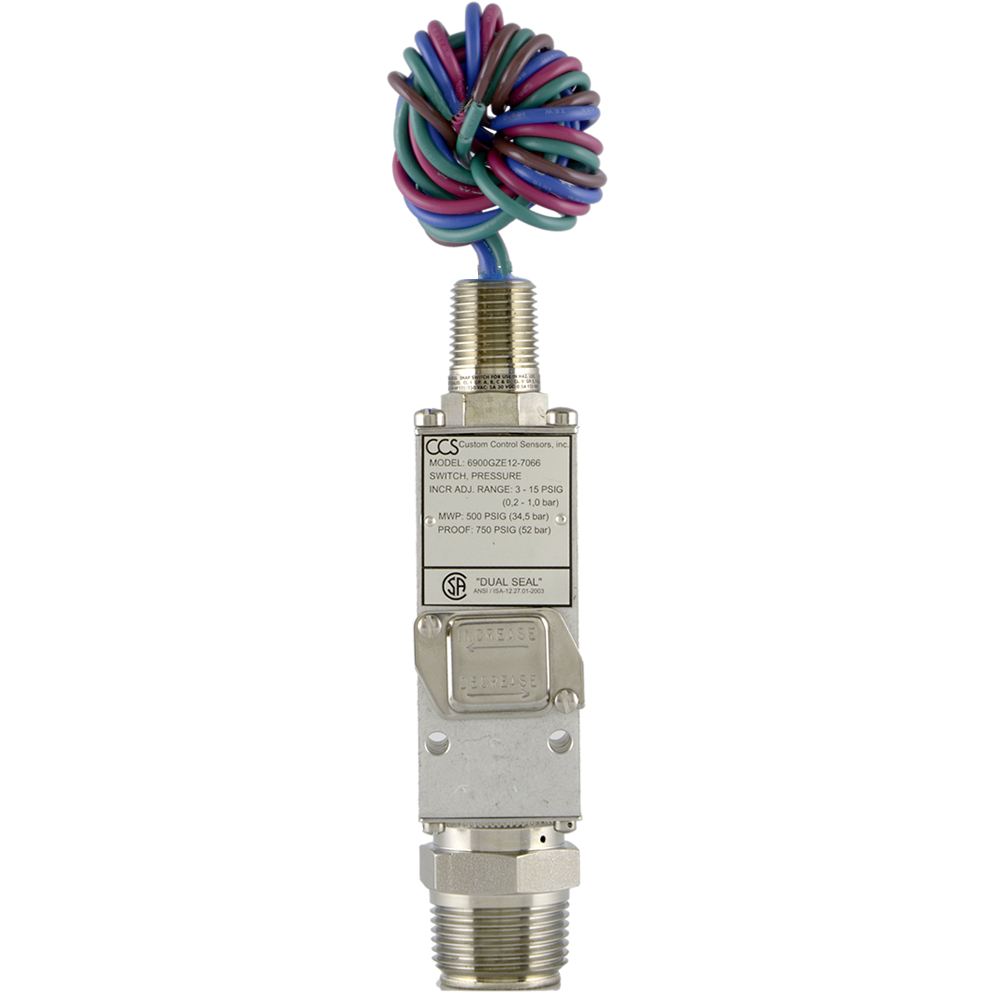

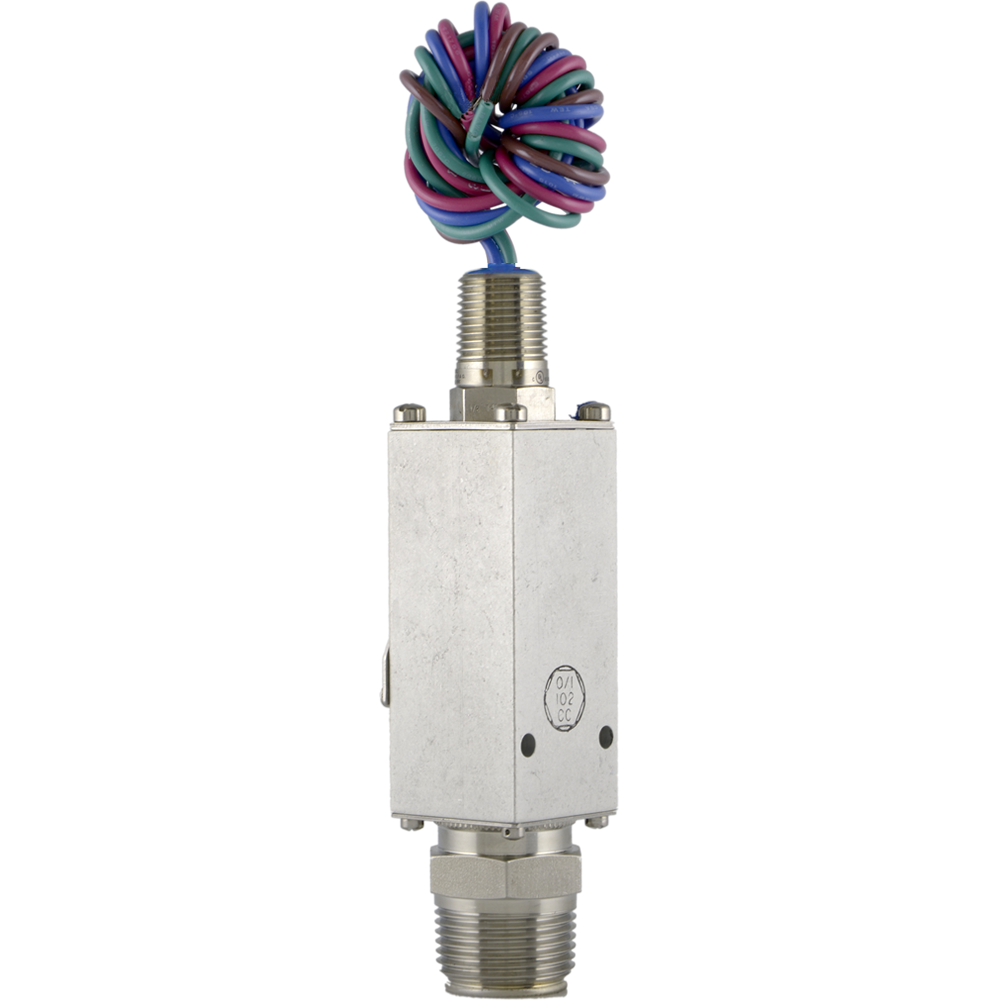

6900GZE-7066 Series Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: 3 to 2200 psig, 20.7 to 15,168.5 kPa, 0.21 to 152 bar
    • Decreasing: 1 to 2020 psig, 6.9 to 13,927.4 kPa, 0.07 to 139 bar
  • Deadband: Approximately 2 to 180 psi, 13.8 to 1241.1 kPa, 0.14 to 12.4 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3447.38 to 34,473.75 kPa, 34.5 to 344.74 bar
  • Proof Pressure: 750 to 7500 psig, 5171.07 to 51,710.63 kPa, 51.7 to 517.11 bar
  • Wetted Materials:
    • Pressure Port: 1" 316 Stainless Steel Pressure Port & Welded Diaphragm
    • Diaphragm: External Flush Mount Welded Diaphragm
  • Relay: SPDT or DPDT
  • UL, CSA:
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NACE
show more
Images are representations only.
  • Adjustable Set Point Range:
    • Increasing: 3 to 2200 psig, 20.7 to 15,168.5 kPa, 0.21 to 152 bar
    • Decreasing: 1 to 2020 psig, 6.9 to 13,927.4 kPa, 0.07 to 139 bar
  • Deadband: Approximately 2 to 180 psi, 13.8 to 1241.1 kPa, 0.14 to 12.4 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3447.38 to 34,473.75 kPa, 34.5 to 344.74 bar
  • Proof Pressure: 750 to 7500 psig, 5171.07 to 51,710.63 kPa, 51.7 to 517.11 bar
  • Wetted Materials:
    • Pressure Port: 1" 316 Stainless Steel Pressure Port & Welded Diaphragm
    • Diaphragm: External Flush Mount Welded Diaphragm
  • Relay: SPDT or DPDT
  • UL, CSA:
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NACE
21 models matching criteria
6900GZE14-7066
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
25+ In Stock
$292.08USD
$8.22 Shipping
6900GZE12-7066
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
18 In Stock
$754.47USD
$8.22 Shipping
6900GZE16-7066
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
12 In Stock
$292.08USD
$8.22 Shipping
6900GZE20-7066
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
11 In Stock
$292.08USD
$8.22 Shipping
6900GZE22-7066
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
11 In Stock
$292.08USD
$8.22 Shipping
6900GZE12-7074
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT Hastelloy-C Flush Mount Port & Diaphragm, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZE14-7074
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT Hastelloy-C Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZE16-7074
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT Hastelloy-C Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZE18-7066
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZE18-7074
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT Hastelloy-C Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZE20-7066/7065
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Teflon Leads, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZE20-7074
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT Hastelloy-C Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZE20-7098
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Teflon Leads, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 56 days
6900GZE22-7074
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT Hastelloy-C Flush Mount Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZEK6C18-7074
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT, Flush Mount Hastelloy-C Port & Diaphragm, 6-Pin NC, DPST, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
6 - 8 weeks
6900GZEM12-7066
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZEM18-7066
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZEM18-7074
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT Hastelloy-C Flush Mount Port & Diaphragm, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
8 - 10 weeks
6900GZEM20-7066
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZEM20-7098
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT SST Flush Mount Port & Diaphragm, Viton O-Ring, DPDT, Teflon Leads, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days
6900GZEMK6C18-7074
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1" NPT, Flush Mount Hastelloy-C Port & Diaphragm, 6-Pin NC, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
45 - 60 days

6900GZE-7066

Base Model

Welded External Diaphragm and Process Connection

This process connection is comprised of a metal diaphragm welded flush to the process face of a 1” MNPT pressure port, thereby eliminating both the port cavity and the O-Ring. O-Ring degradation and failure are no longer a concern, thus providing a cleaner and safer work environment, improving process reliability and reducing operating costs.

The Flush-Mount Process Connection is also suitable for processes which are highly viscous and prone to plugging conventional 'cavity-type' process ports by providing the sensing element direct access/contact to your process, much as a Remote Seal does.

Eliminate the requirement for a remote seal by using the Flush-Mount Welded Diaphragm.

Output

Electrical Contacts

Electrical Connection

Electrical - Free Leads

Enclosure Material

Agency Approvals

Paint

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • cUL
  • Dual Seal
  • IEC Ex
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate

  • bar: 0.14 to 12.4
  • kPa: 13.8 to 1,241
  • psi: 2 to 180

Diaphragm Material

  • Stainless Steel

Electrical - Free Leads

  • 18" (45 cm) Free Leads
  • 18" (45 cm) Teflon Leadwire

Electrical Assembly

  • Hermetic Seal

Electrical Certification

  • ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex D IIC, 08-ATEX-
  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
  • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

Electrical Connectors

  • 1/2" NPT Male
  • M20 Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum
  • Stainless Steel

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

NACE & NIST

  • NACE MR-0175:2003

NPT Connection

  • 1" NPT Male Flush Welded Diaphragm - External with No Port Cavity

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • None

Process Connection Material

  • 316 Stainless Steel
  • Hastelloy® C-276

Proof Pressure

  • bar: 51.7 to 310
  • kPa: 5,171 to 31,026
  • psig: 750 to 4,500

Service

  • Sour (Oil & Gas)

Set Point - Decreasing

  • bar: 0.07 to 160
  • kPa: 6.9 to 15,996
  • psig: 1 to 2,320

Set Point - Increasing

  • bar: 0.21 to 172
  • kPa: 20.7 to 17,237
  • psig: 3 to 2,500

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 34.5 to 207
  • kPa: 3,447 to 20,684
  • psig: 500 to 3,000

Typical Applications

  • Boilers & Burners
  • Chemical & Petrochemical Plants
  • Chemical Refining & Processing
  • Degreasers & Evaporators
  • Fluid Management
  • Ground Support Equipment
  • Hydraulic & Lubrication Systems
  • Heating & Air Conditioning
  • Manufacturing Process
  • Oil & Gas
  • Pipelines
  • Power Generation
  • Power Plants
  • Pulp & Paper Mills
  • Pumps, Compressors & Turbines
  • Recovery Systems
  • Refineries
  • Reverse Osmosis Systems & Filters
  • Safety Systems
  • Specialized OEM Equipment
  • Steel Mills
  • Utilities
  • Water Treatment, Waste & Sewage Treatment Facilities
