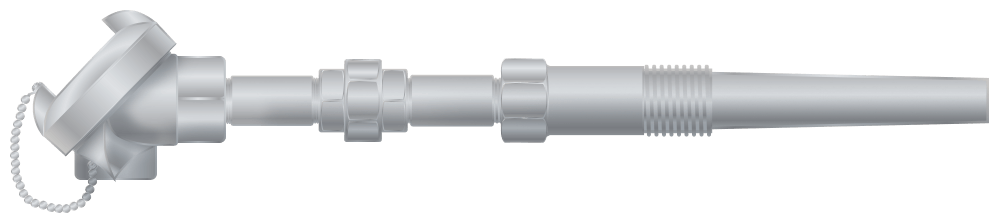

TC8 Complete Assembly Thermocouple

Brand: Aircom Instrumentation Ltd.
Aircom Instrumentation Ltd. provides products and services to the process control industry—specializing in temperature sensor manufacturing, specialty welding and product distribution.
  • ISA Calibration Material:
    • Copper - Constantan
    • Iron -Constantan
    • Chromel - Alumel
    • Nicrosil - Nisil
    • Platinum / Rhodium
  • Sheath Material:
    • 304 Stainless Steel
    • 316 Stainless Steel
  • Junction: Grounded, Ungrounded
  • Element: Single or Dual
  • Connection Head
    • Explosion Proof: Class I, Div. I, Gr. A, B, C, D. Class II, Div. I, Gr. E, F, G. Class III
    • General Purpose
    • Non Hazardous Indoor/Outdoor/Sanitary
  • Thermowell Size: 3/4" NPT, 1" NPT, Custom Flange sizes also available
show more
Images are representations only.
Aircom Instrumentation Ltd. provides products and services to the process control industry—specializing in temperature sensor manufacturing, specialty welding and product distribution.
  • ISA Calibration Material:
    • Copper - Constantan
    • Iron -Constantan
    • Chromel - Alumel
    • Nicrosil - Nisil
    • Platinum / Rhodium
  • Sheath Material:
    • 304 Stainless Steel
    • 316 Stainless Steel
  • Junction: Grounded, Ungrounded
  • Element: Single or Dual
  • Connection Head
    • Explosion Proof: Class I, Div. I, Gr. A, B, C, D. Class II, Div. I, Gr. E, F, G. Class III
    • General Purpose
    • Non Hazardous Indoor/Outdoor/Sanitary
  • Thermowell Size: 3/4" NPT, 1" NPT, Custom Flange sizes also available

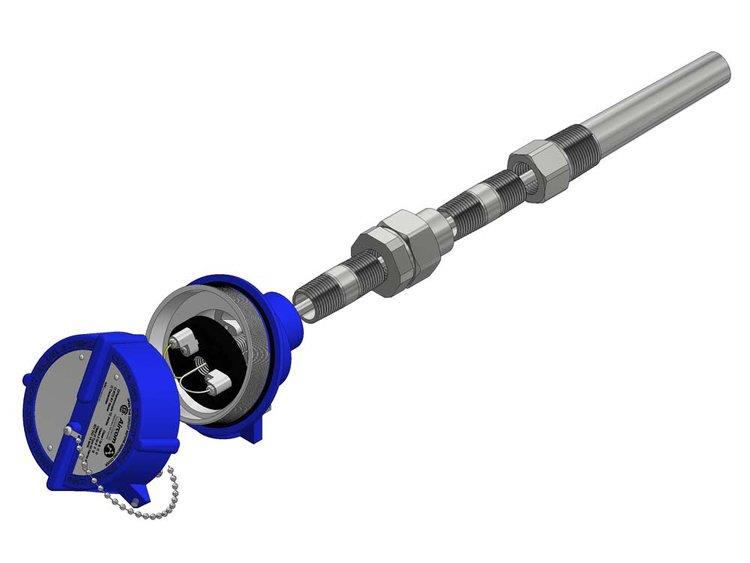

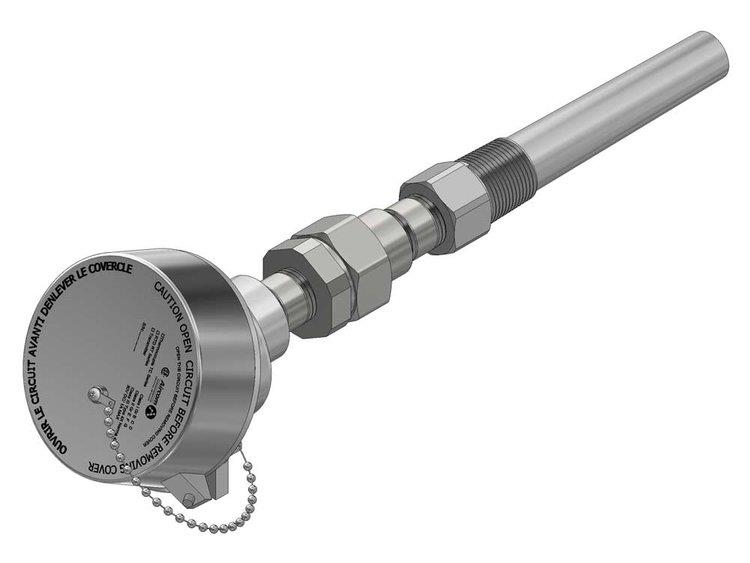

TC8

Connection Head

Connection Head Material

Connection Head Material

Connection Head Material

Connection Head Material

Connection Extension Length

Thermocouple Type

Thermocouple Junction

Thermocouple Junction Quantity

Thermowell Lagging Extension

Thermowell Probe Length

Thermowell Material

Thermowell

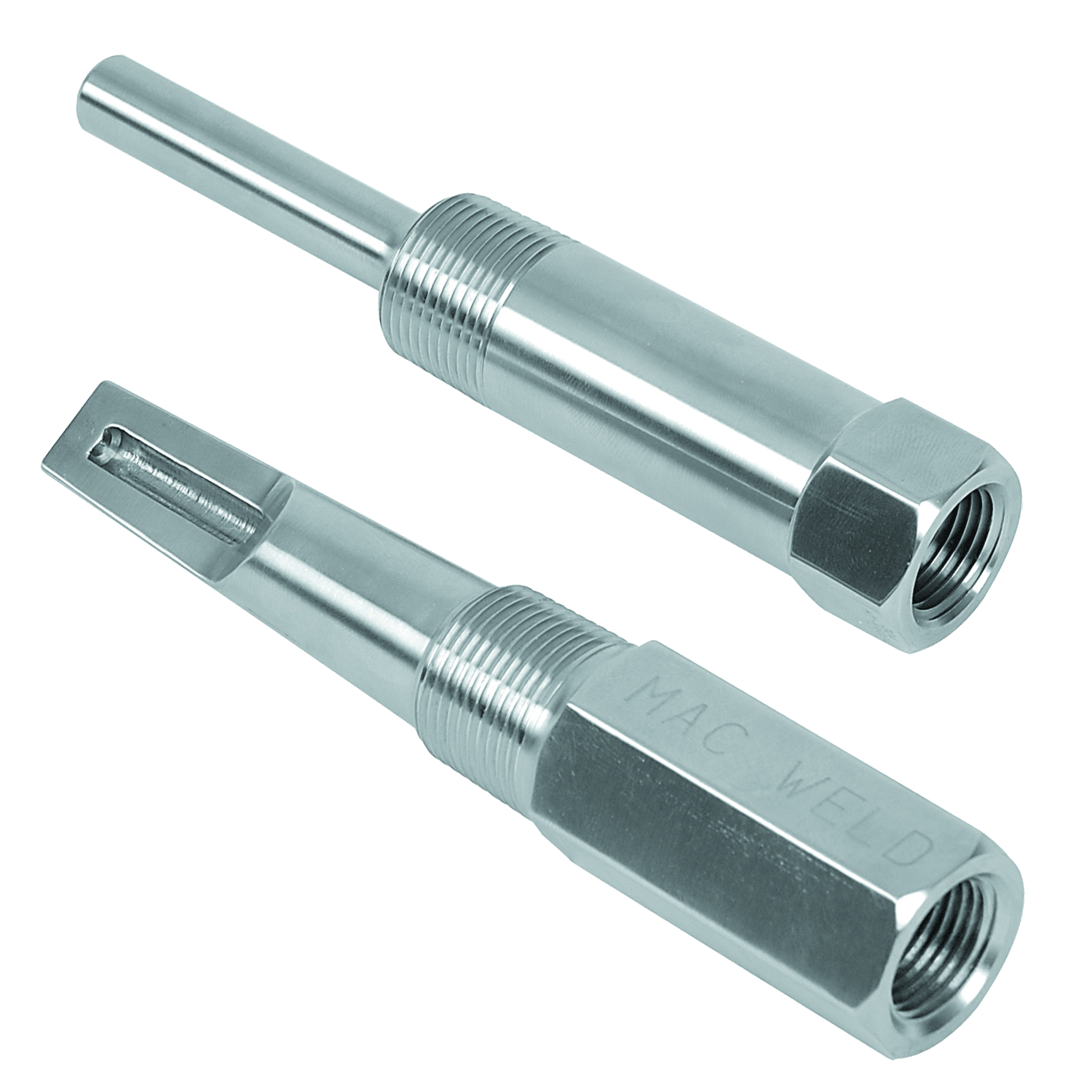

Threaded Thermowell

Flanged Thermowell

Specifications

Element

  • Dual Elements
  • Single Element

Junction

  • Grounded
  • Ungrounded

Materials of Construction

  • 316 Stainless Steel
  • Cast Aluminum, Teflon Coated Aluminum, Epoxy Coated Aluminum
  • Cast Iron
  • Epoxy Coated Cast Iron
  • Grey Delrin®
  • Teflon Coated Cast Iron
  • White Polypropylene

NPT Connection

  • 1/2" NPT Male
  • 3/4" NPT Male

Sensor, Probe Material

  • 304L Stainless Steel
  • 316L Stainless Steel

Termination

  • Bakelite Terminal Block
  • Ceramic (High Temperature)

Thermowell

  • Flanged: 1-1/8" Round bar Stock, Standard, Optional 1-1/4" or 1-3/8", Drilled .260" Bore & Tapered to 3/4" Diameter
  • Threaded: 3/4" NPT or 1" NPT, Bex bar Stock Drilled 0.260" Bore Tapered to 3/4" Diameter
