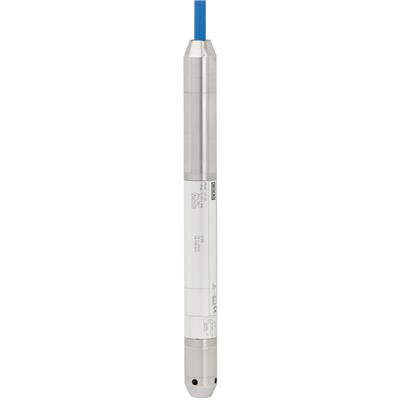

Images are representations only.

PT-500 Pressure Transmitter

Brand: Automation Products Group - APG
The PT-500 is a rugged submersible pressure transmitter designed for tank liquid level measurement, water and wastewater applications, and well depth measurement.
Features
  • Simple to install
  • High precision, solid state signal: 4-20 mA
  • Exclusive, removable and reusable cage
  • 1/2" Male NPT option on cable end for use with conduit
  • Durable transducer face
  • Instrinsically safe for Class 1, Div 1/Zone 0 (4-20 mA only)
  • Built-in lightning protection on every model
show more
The PT-500 is a rugged submersible pressure transmitter designed for tank liquid level measurement, water and wastewater applications, and well depth measurement.
Features
  • Simple to install
  • High precision, solid state signal: 4-20 mA
  • Exclusive, removable and reusable cage
  • 1/2" Male NPT option on cable end for use with conduit
  • Durable transducer face
  • Instrinsically safe for Class 1, Div 1/Zone 0 (4-20 mA only)
  • Built-in lightning protection on every model
152 models matching criteria
PT-500B-5-PSI-G-L1-E0-P1-15-N0-AC2
APG PT-500 Submersible Transducer, 0-5 psi, 15-ft Cable, 1/2" MNPT with Delrin Cap, 4-20 mA View More
  • PT-500: Submersible Liquid Level Transducer

    • B: Cable Type: Hytrel .31” Ø - Black (with vent tube)

  • 5-PSIG: Pressure Range: 0 to 5 PSI, Gauge Pressure
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P1: Process Connection: 1/2” NPTM with removable plastic nose cone
  • 15: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Cable: Hytrel
    • Protective Cone: Delrin

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group II
2 In Stock
$792.02USD
$14.78 Shipping
PT-500-5-PSI-G-L1-E0-P39-20-N0-AC2
APG PT-500 Submersible Transducer, 0-5 psi, 20-ft Cable, 1-1/2" Tri-Clover,3/4"Diaphragm,Cage,4-20mA View More
  • PT-500: Submersible Liquid Level Transducer

    • Cable Type: Blue Polyurethane (with vent tube)

  • 5-PSIG: Pressure Range: 0 to 5 PSI, Gauge Pressure
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P39: Process Connection: 1-1/2” Tri-Clover with Protective Sensor Cage
  • 20: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Cable: Polyurethane
    • Protective Cone: Delrin

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group IIB
2 In Stock
$1,263.83USD
$14.78 Shipping
PT-500-10-PSI-G-L1-E0-P39-60-N0-AC2
APG PT-500 Submersible Transducer, 0-10 psi, 60-ft Cable,1-1/2" NPT Tri-Clover, Cage, 4-20 mA View More
  • PT-500: Submersible Liquid Level Transducer

    • Cable Type: Blue Polyurethane (with vent tube)

  • 10-PSIG: Pressure Range: 0 to 10 PSI, Gauge Pressure
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P39: Process Connection: 1-1/2” Tri-Clover with Protective Sensor Cage
  • 60: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group IIB
1 In Stock
$1,299.33USD
$14.78 Shipping
PT-500-10-PSIG-L1-E0-P1-2-N0-AC2
APG PT-500 Submersible Transducer, 0-10 psi, 2-ft Cable, 1/2" MNPT Nose Cone, 4-20 mA View More
  • PT-500: Submersible Liquid Level Transducer

    • Cable Type: Blue Polyurethane (with vent tube)

  • 10-PSIG: Pressure Range: 0 to 10 PSI, Gauge Pressure
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P1: Process Connection: 1/2” NPTM with removable plastic nose cone
  • 2: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Protective Cone: Delrin

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group IIB
3 - 5 weeks
Non-Cancellable / Non-Refundable
$777.23USD
$14.78 Shipping
PT-500-15-PSI-G-L1-E0-P39-80-N0-AC2
APG PT-500 Submersible Transducer, 0-15 psi, 80-ft Cable, 1-1/2"Tri-Clover,3/4"Diaphragm,Cage,4-20mA View More
  • PT-500: Submersible Liquid Level Transducer

    • Cable Type: Blue Polyurethane (with vent tube)

  • 15-PSIG: Pressure Range: 0 to 15 PSI, Gauge Pressure
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P39: Process Connection: 1-1/2” Tri-Clover with Protective Sensor Cage
  • 80: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Cable: Polyurethane
    • Protective Cone: Delrin
    • Filter: Gore Patch, Terminating Vent Tube

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group IIB
3 - 5 weeks
Non-Cancellable / Non-Refundable
$1,370.32USD
$14.78 Shipping
PT-500B-300-PSI-S-L1-E0-P1-5-N0-AC2
APG PT-500 Submersible Transducer, 0-300 psi, 5-ft Hytrel Cable, 1/2" MNPT Nose Cone, 4-20 mA View More
  • PT-500: Submersible Liquid Level Transducer

    • B: Cable Type: Hytrel .31” Ø - Black (with vent tube)

  • 300-PSI: Pressure Range: 0 to 300 PSI
  • S: Pressure Type - Sealed
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P1: Process Connection: 1/2” NPTM with removable plastic nose cone
  • 5: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Cable: Polyurethane
    • Protective Cone: Delrin

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group IIB
3 - 5 weeks
$706.24USD
$14.78 Shipping
PT-500-5-PSI-G-L1-E0-P1-N0-AC2
APG PT-500 Submersible Transducer, 0-5 psi, Gauge, 1/2" MNPT, 4-20 mA, 1/2" Process Connection View More
  • PT-500: Submersible Liquid Level Transducer

    • Cable Type: Blue Polyurethane (with vent tube)

  • 5-PSIG: Pressure Range: 0 to 5 PSI, Gauge Pressure
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P1: Process Connection: 1/2” NPTM with removable plastic nose cone
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 9-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Protective Cone: Delrin

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group IIB
Out of Stock
$710.68USD
$14.78 Shipping
PT-500-1-PSI-G-L1-E0-P1-1-N0-AC2
APG PT-500 Submersible Transducer, 0-1 psi, 1-ft Cable, 1/2" MNPT Nose Cone, 4-20 mA View More
  • PT-500: Submersible Liquid Level Transducer

    • Cable Type: Blue Polyurethane (with vent tube)

  • 1-PSIG: Pressure Range: 0 to 1 PSI, Gauge Pressure
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P1: Process Connection: 1/2” NPTM with removable plastic nose cone
  • 1: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
  • Housing: 316L Stainless Steel[/li]Cable: Polyurethane[/li]Protective Cone: Delrin[/li]
  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group IIB
2 - 4 weeks
$713.63USD
$14.78 Shipping
PT-500B-250-PSI-S-L1-E0-P1-5-N0-AC2
APG PT-500 Submersible Transducer, 0-250 psi, 5-ft Hytrel Cable, 1/2" MNPT Nose Cone, 4-20 mA View More
  • PT-500: Submersible Liquid Level Transducer

    • B: Cable Type: Hytrel .31” Ø - Black (with vent tube)

  • 250-PSI: Pressure Range: 0 to 250 PSI
  • S: Pressure Type - Sealed
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P1: Process Connection: 1/2” NPTM with removable plastic nose cone
  • 5: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Cable: Polyurethane
    • Protective Cone: Delrin

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group IIB
3 - 5 weeks
$713.63USD
$14.78 Shipping
PT-500-5-PSI-G-L1-E0-P1-2-N0-AC2
APG PT-500 Submersible Transducer, 0-5 psi, 2-ft Cable, 1/2" MNPT Nose Cone, 4-20 mA View More
  • PT-500: Submersible Liquid Level Transducer

    • Cable Type: Blue Polyurethane (with vent tube)

  • 5-PSIG: Pressure Range: 0 to 5 PSI, Gauge Pressure
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P1: Process Connection: 1/2" NPTM with removable plastic cone
  • 2: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Cable: Polyurethane
    • Protective Cone: Delrin

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group IIB
2 - 4 weeks
$717.33USD
$14.78 Shipping

Specifications

Accuracy

  • ≤ 0.5 % BFSL

Approvals & Certifications

  • CSA Class I, Division 1, Groups C, D

Compensated Temperature

  • -17° to 54° C (0° to 130° F)

Display

  • None

Electrical Connectors

  • Waterproof Pigtail with Overmolded Cable

Enclosure, Body Material

  • Delrin Cone

Input Power

  • Vdc: 10-28

Maximum System Pressure

  • Submersible up to 450 feet (137 m)

NPT Connection

  • 1/2" NPT Male

Output

  • 0-10 Vdc
  • 0-5 Vdc
  • 4-20 mA

Pressure Range

  • bar: 0.07 to 20.68
  • kPa: 6.7 to 2,068
  • psi: 1 to 300

Reverse Polarity Protection

  • Protected Against Reverse Polarity, Surge, Per IEC 61000-4-5

Span & Zero Effect

  • ≤ 0.025 % of Full Scale Output/°F at 21° C (70° F)

Tri-Clamp Connection

  • 1-1/2" Tri-Clamp

Wetted Materials

  • 316L Stainless Steel
