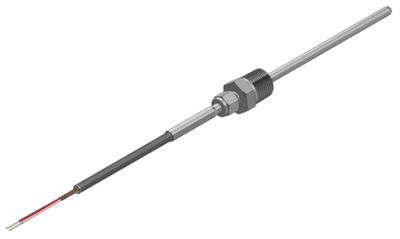

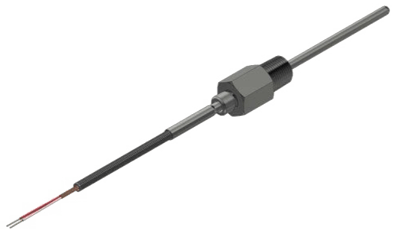

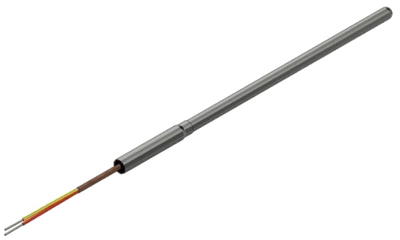

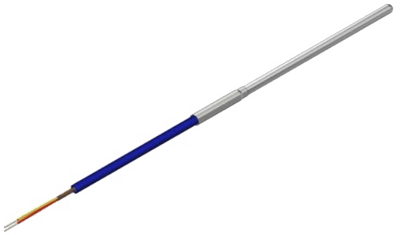

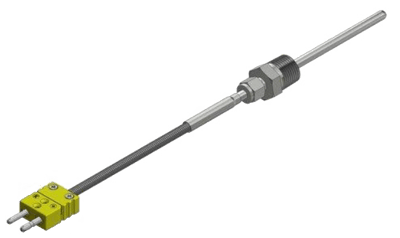

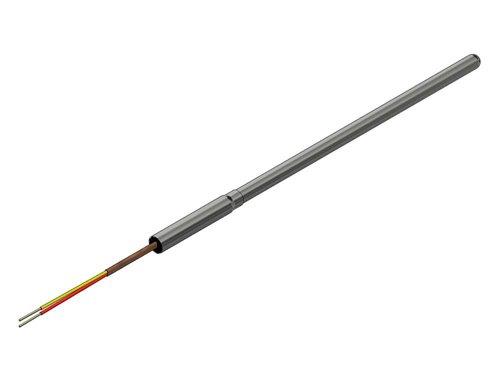

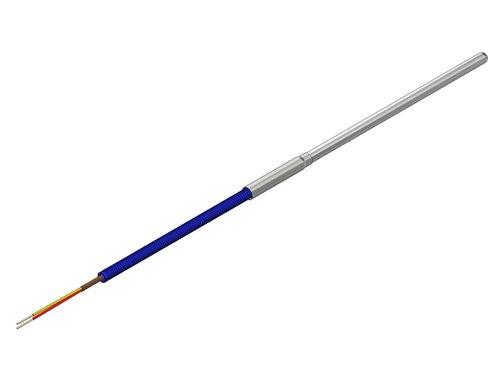

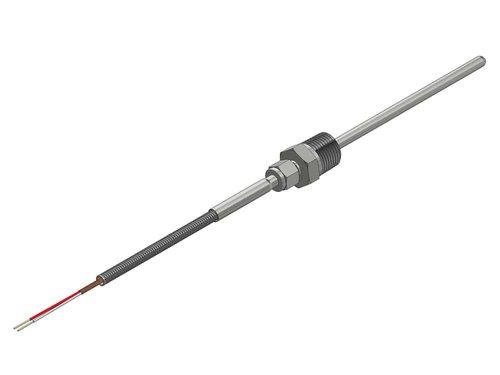

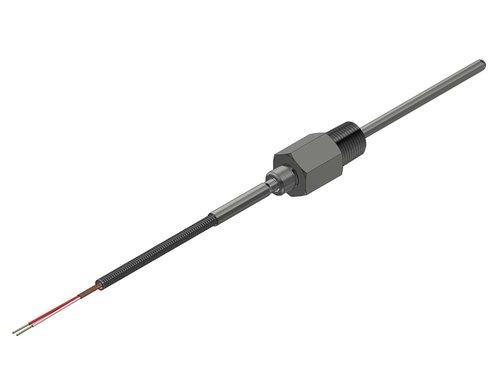

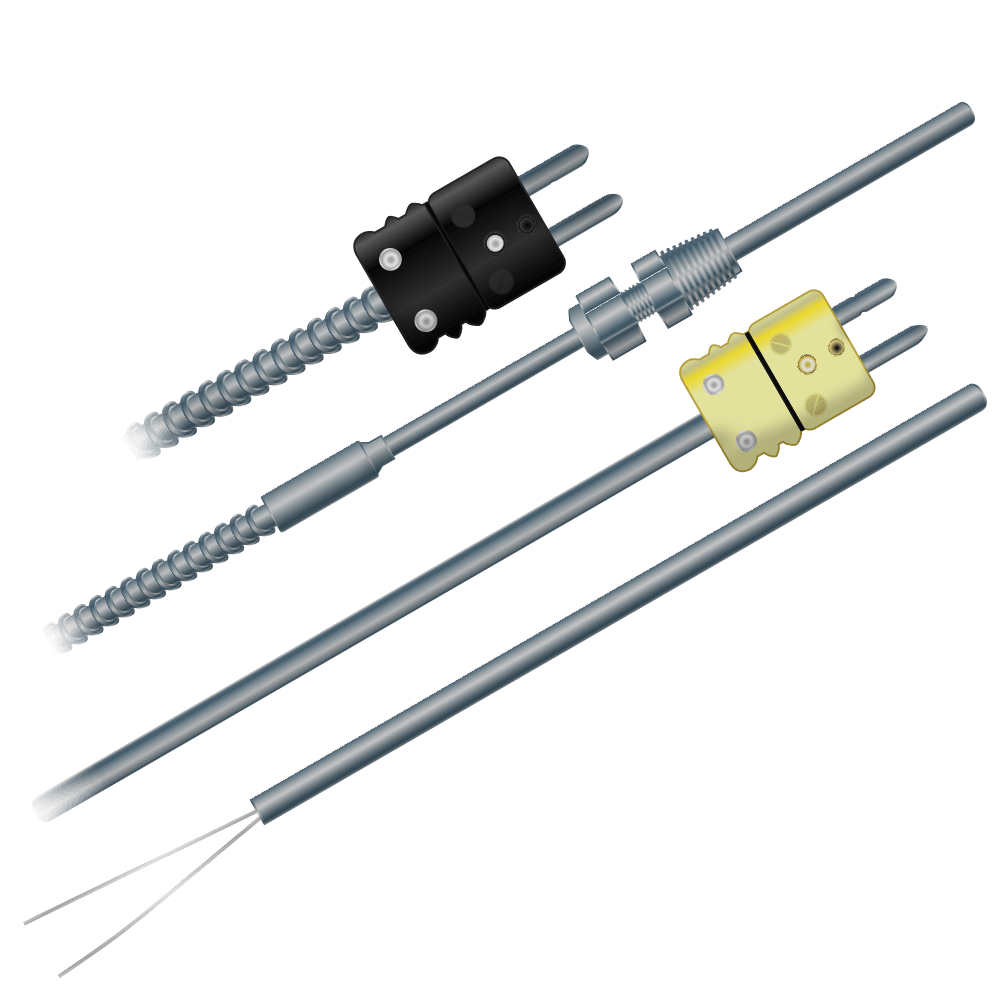

TC4 Thermocouple

Brand: Aircom Instrumentation Ltd.
Request Information
Favorite
Aircom Instrumentation Ltd. provides products and services to the process control industry, specializing in temperature sensor manufacturing, specialty welding and product distribution.
  • ISA Calibration Material:
    • Copper
    • Iron
    • Chromel
    • Nicrosil
    • Platinum / Rhodium
  • Probe Diameter: 0.40 mm to 3.75 mm (1/25" to 3/8")
  • Sheath Material:
    • 304 Stainless Steel
    • 316 Stainless Steel
    • 310 Stainless Steel
    • Inconel® 600
  • Lead Insulation
    • Fiberglass Options for SST Overbraid or Flex Armour
    • Polyvinyl Chloride (PVC), Option for Flex Armour
    • Teflon, Options for Flex Armour
    • 2" Stripped Leads
  • Process Fitting
    • Compression Fitting (SST or Teflon Ferrule)
    • Fixed HEX Plug
    • Fixed and Adjustable 1/2" x 1/2" Male NPT Bushing
    • Spring Loaded Transmitter Bushing 1/2" Male NPT
  • Fitting Size: 1/8" to 1/2" Male NPT
show more
Aircom Instrumentation Ltd. provides products and services to the process control industry, specializing in temperature sensor manufacturing, specialty welding and product distribution.
  • ISA Calibration Material:
    • Copper
    • Iron
    • Chromel
    • Nicrosil
    • Platinum / Rhodium
  • Probe Diameter: 0.40 mm to 3.75 mm (1/25" to 3/8")
  • Sheath Material:
    • 304 Stainless Steel
    • 316 Stainless Steel
    • 310 Stainless Steel
    • Inconel® 600
  • Lead Insulation
    • Fiberglass Options for SST Overbraid or Flex Armour
    • Polyvinyl Chloride (PVC), Option for Flex Armour
    • Teflon, Options for Flex Armour
    • 2" Stripped Leads
  • Process Fitting
    • Compression Fitting (SST or Teflon Ferrule)
    • Fixed HEX Plug
    • Fixed and Adjustable 1/2" x 1/2" Male NPT Bushing
    • Spring Loaded Transmitter Bushing 1/2" Male NPT
  • Fitting Size: 1/8" to 1/2" Male NPT
Close

Displaying prices & availability for United States in USD. Change location or currency

TC4-J-U-14-316-N6-12-AT-SC-CF-12
AIRCOM Thermocouple, TC Probe, Type J, Ungrounded, ¼" OD, 316SS, 6" L below 90, 6" Armored Teflon, View More
TC4 CUSTOM SHEATHED THERMOCOUPLE

  • J: Iron Constant
  • U: Ungrounded
  • 14: ¼-Inch OD
  • 316: 316SS Sheath
  • N6: 6-Inch Length below 90° Bend
  • 12: 12-Inch Armored Teflon Lead
  • AT: Lead Insulation Flex Armour over Teflon
  • SC: Termination Standard Male Connector 205°C Max Continues
  • CF: Compression Fitting
  • 12: Fitting ¼” Tube Bore through x ½” NPT
2 - 4 weeks
Non-Cancellable / Non-Refundable
$158.35USD
$19.24 Shipping
TC4-K-U-14-316-8-120-AF-BE-CF-12
AIRCOM Thermocouple,Type K, Ungrounded, 1/4" OD, 316SST,8" L, 120"Flex Armour O/Fiberglass, 1/2" NPT View More
Custom Sheathed Thermocouple TC4
  • K: ISA Calibration: Chromel-Alumel
  • U: Junction: Ungrounded
  • 14: Probe Diameter: 1/4" 0.250
  • 316: Sheath Material: 316 Stainless Steel
  • 8: Probe Length: 8 Inches
  • 120: Lead Length: 120 Inches
  • AF: Lead Insulation: Flex Armour Over Fiberglass
  • BE: Termination: Bare Ended Lead Wire
  • CF: Process Fitting: Compression Fitting (SS Ferrule)
  • 12: Fitting Size: 1/2" MNPT
2 - 3 weeks
$171.66USD
$19.24 Shipping
TC4-J-U-14-316-N6-15-AT-SC-CF-38
AIRCOM Thermocouple, TC Probe, Type J, Ungrounded, ¼" OD, 316SS, 6" L below 90, 15" Armored Teflon, View More
TC4 CUSTOM SHEATHED THERMOCOUPLE

  • J: Iron Constant
  • U: Ungrounded
  • 14: ¼-Inch OD
  • 316: 316SS Sheath
  • N6: 6-Inch Length below 90° Bend
  • 15: 15-Inch Armored Teflon Lead
  • AT: Lead Insulation Flex Armour over Teflon
  • SC: Termination Standard Male Connector 205°C Max Continues
  • CF: Compression Fitting
  • 38: Fitting ¼” Tube Bore through x 3/8” NPT
2 - 4 weeks
Non-Cancellable / Non-Refundable
$173.88USD
$19.24 Shipping
Close
Close

Specifications

Brand

Junction

  • Dual Grounded
  • Dual Ungrounded
  • Exposed
  • Grounded
  • Ungrounded

Lead Insulation

  • 2” Stripped Leads
  • Fiberglass
  • Fiberglass with Stainless Steel Overbraid
  • Flex Armour over Fiberglass
  • Flex Armour over PVC
  • Flex Armour over Teflon
  • Polyvinyl Chloride (PVC)
  • Teflon

NPT Connection

  • 1/2” NPT Male
  • 1/4” NPT Male
  • 1/8” NPT Female
  • 3/8” NPT Male

Process Fitting Details

  • Adjustable Spring Loaded 1/2” x 1/2” NPT Male Bushing with Oil Seal
  • Compression Fitting (Stainless Steel Ferrule)
  • Compression Fitting (Teflon Ferrule)
  • Fixed 1/2” x 1/2” NPT Male Bushing
  • Fixed HEX Plug
  • Spring Loaded Transmitter Bushing 1/2” NPT Male

Sensor, Probe Diameter

  • 1/16” O.D.
  • 1/25” O.D.
  • 1/4” O.D.
  • 1/8” O.D.
  • 3/16” O.D.
  • 3/8” O.D.

Sensor, Probe Material

  • 304 Stainless Steel
  • 310 Stainless Steel
  • 316 Stainless Steel
  • Inconel 600

Termination

  • Bare Ended Leadwire
  • High Temperature Male Connector (425° C (800° F) Max.
  • High Temperature Mini Male Connector (425° C (800° F) Max.
  • Miniature Male Connector (205° C (400° F) Max.
  • Spade Lugs
  • Standard Male Connector (205° C (400° F) Max.
