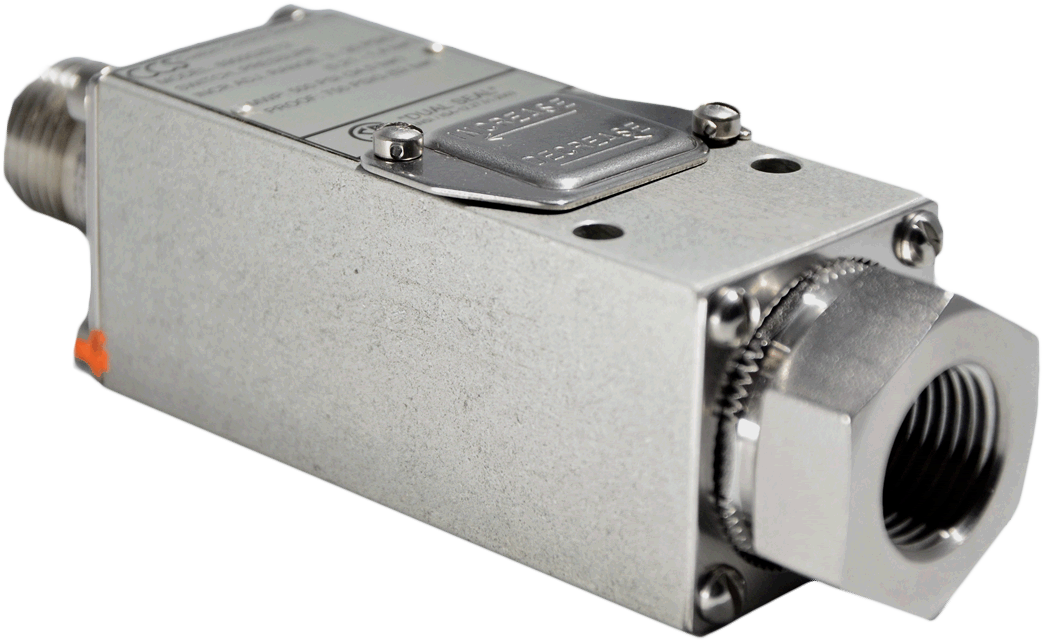

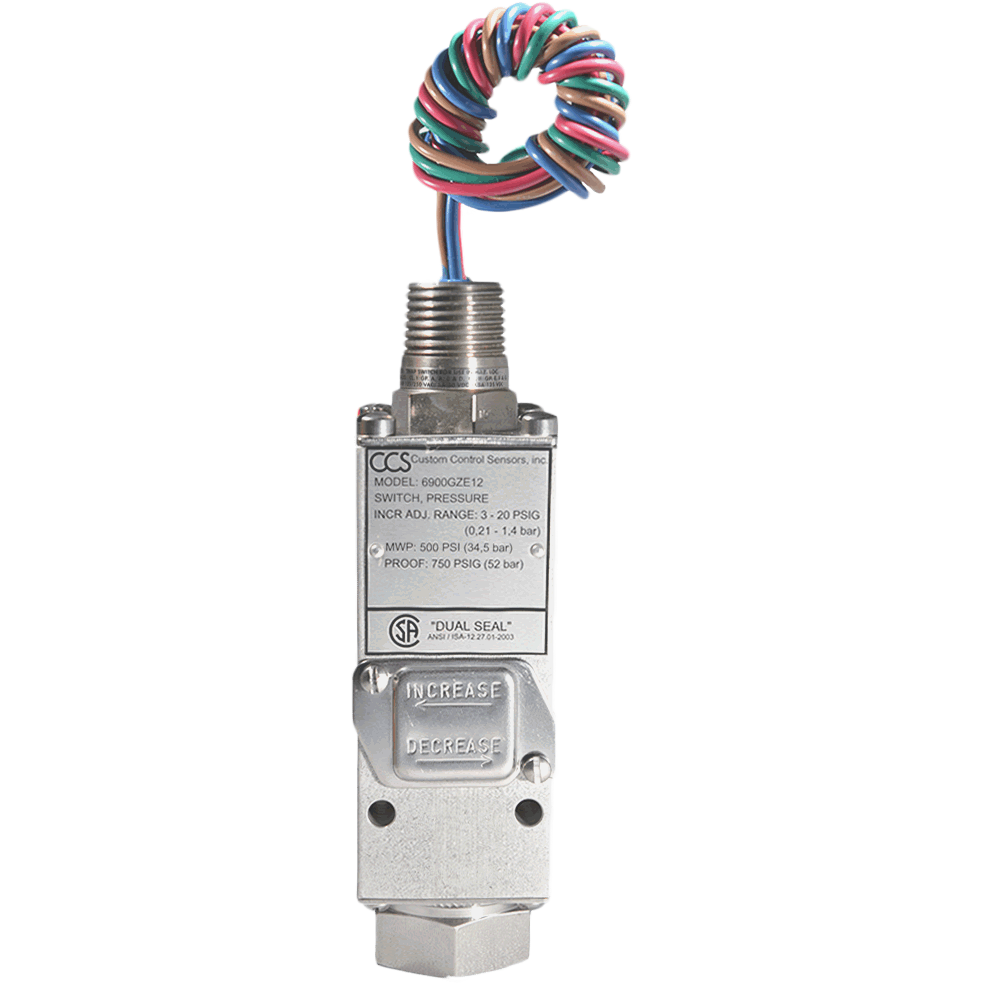

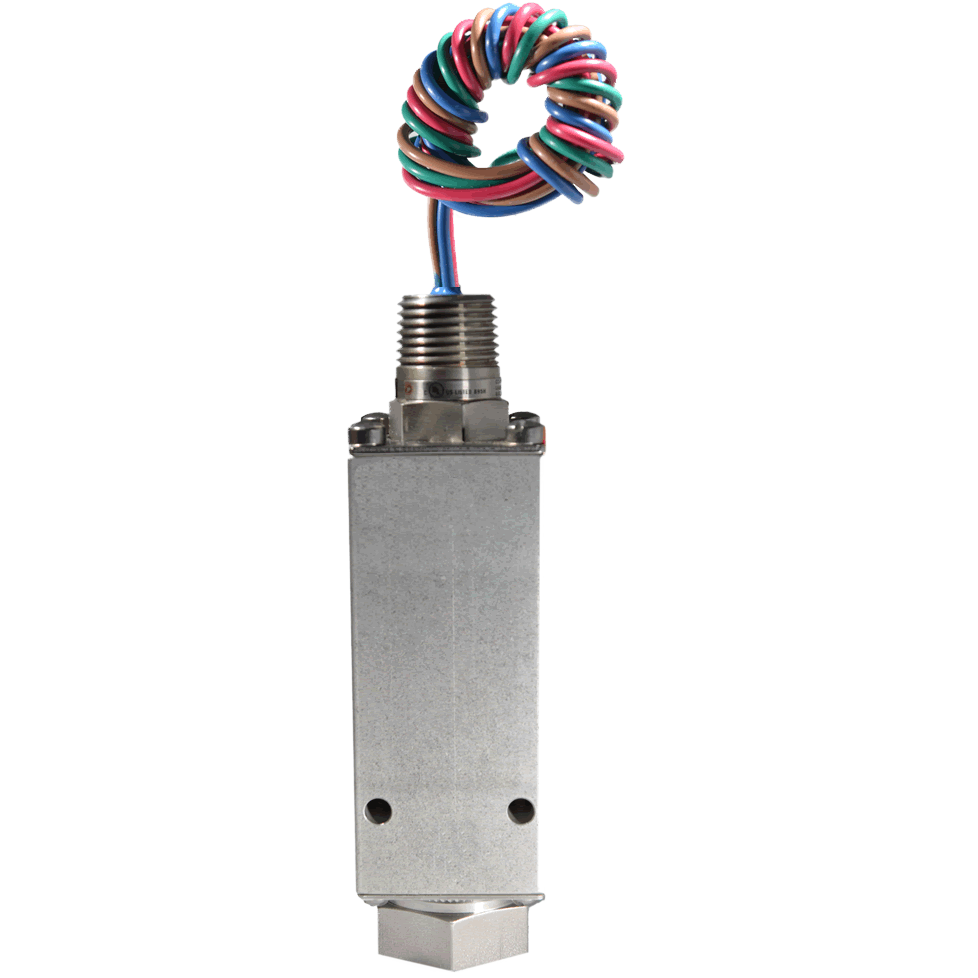

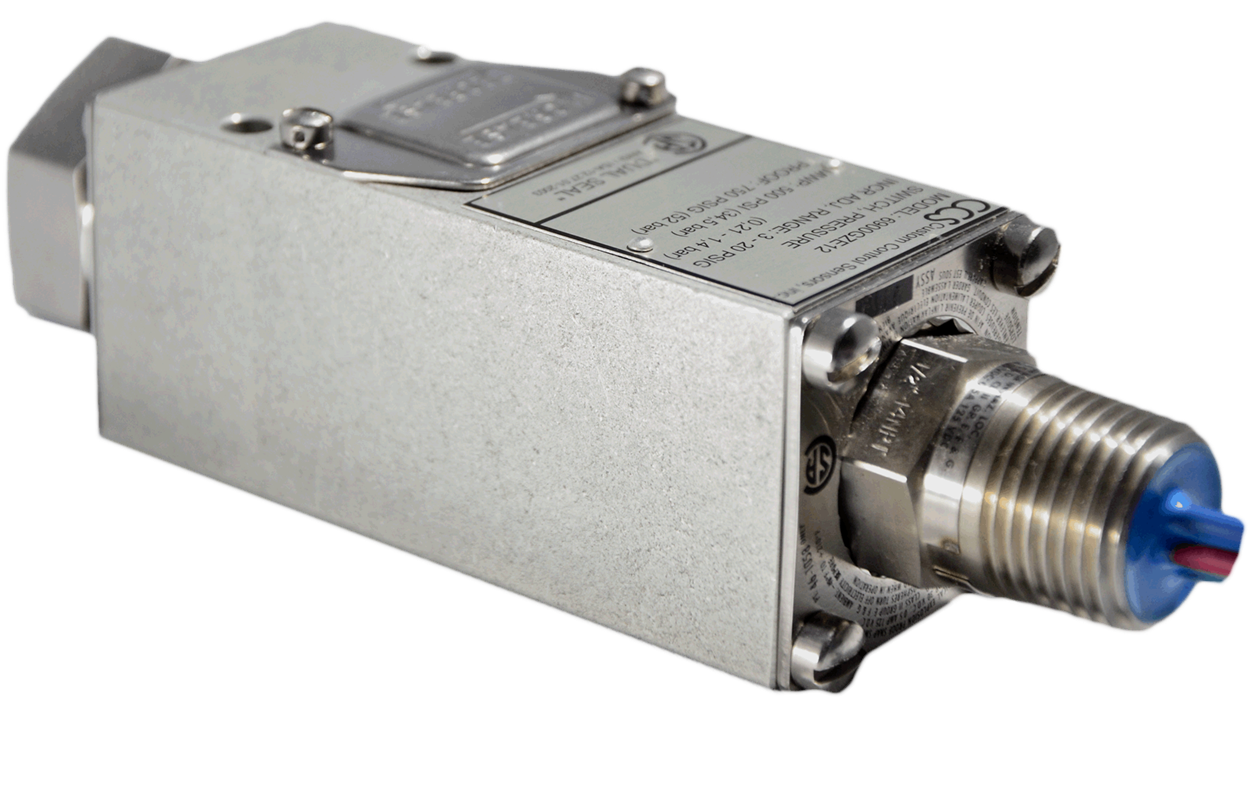

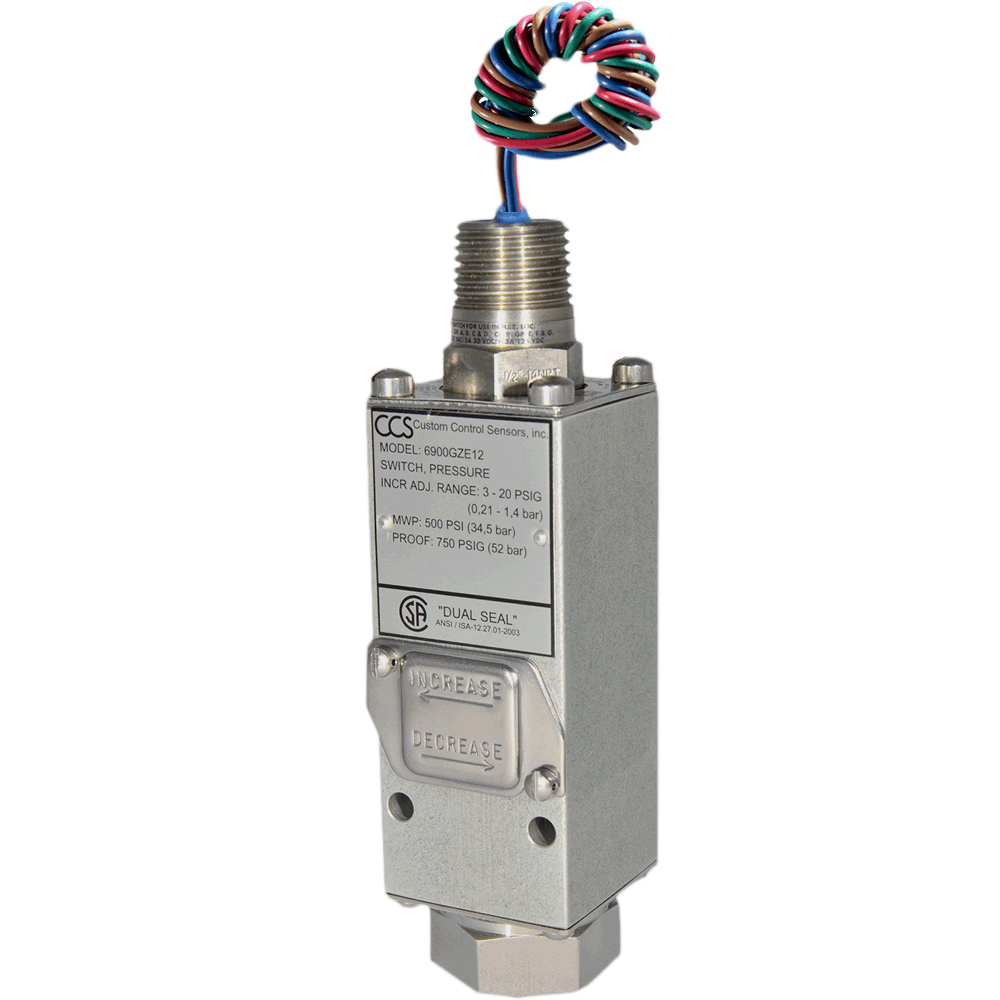

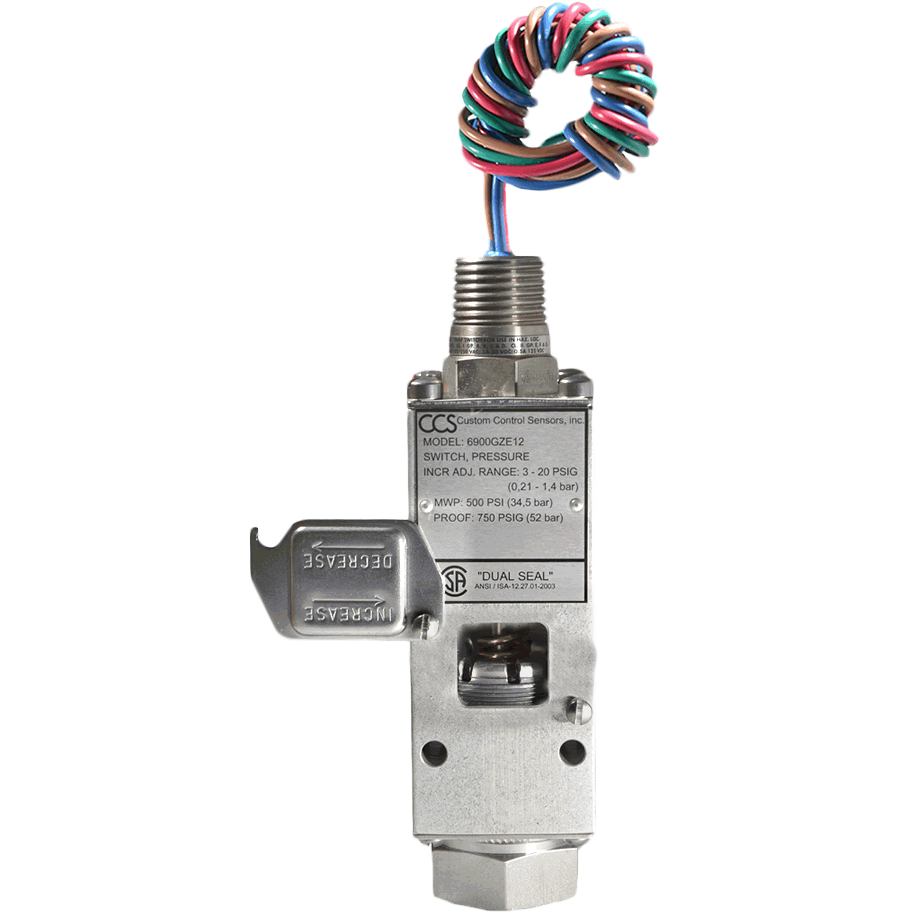

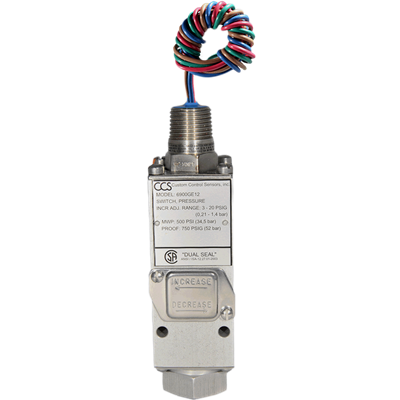

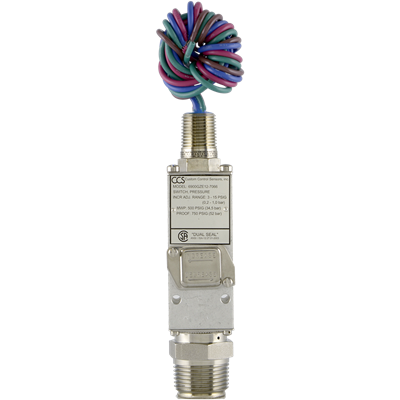

6900GZE Series Pressure Switch

Brand: Custom Control Sensors
The hazardous locations CCS Dual-Snap 6900GZE Series is the most popular, all-around gage pressure switch with a stainless steel port for corrosion resistance.

The series is UL/CSA explosion proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified and ATEX/IECEx II 2 G D Ex d IIC and Ex to IIIC. NEMA 4X and IP66 rating is optimum for wet conditions.

It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability. It comes with high over-pressure capabilities and still relatively compact in size to conveniently mount on panels. It meets the demand for all applications commercial, industrial and otherwise.

  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 0.21 to 234 bar
    • Decreasing: 1 to 3120 psig, 0.07 to 215 bar
  • Deadband: Approximately 2 to 280 psi, 0.14 to 19.3 bar
  • System Pressure (Maximum): 500 to 5000 psig, 34.5 to 344.74 bar
  • Proof Pressure: 750 to 7500 psig, 51.7 to 517.11 bar
  • Wetted Materials:

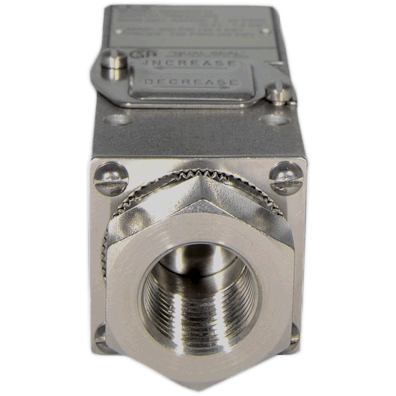

    • Pressure Port: 1/2"-14 Female NPT, 316 Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA:
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NACE, NEMA
show more
Images are representations only.
The hazardous locations CCS Dual-Snap 6900GZE Series is the most popular, all-around gage pressure switch with a stainless steel port for corrosion resistance.

The series is UL/CSA explosion proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified and ATEX/IECEx II 2 G D Ex d IIC and Ex to IIIC. NEMA 4X and IP66 rating is optimum for wet conditions.

It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability. It comes with high over-pressure capabilities and still relatively compact in size to conveniently mount on panels. It meets the demand for all applications commercial, industrial and otherwise.

  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 0.21 to 234 bar
    • Decreasing: 1 to 3120 psig, 0.07 to 215 bar
  • Deadband: Approximately 2 to 280 psi, 0.14 to 19.3 bar
  • System Pressure (Maximum): 500 to 5000 psig, 34.5 to 344.74 bar
  • Proof Pressure: 750 to 7500 psig, 51.7 to 517.11 bar
  • Wetted Materials:
    • Pressure Port: 1/2"-14 Female NPT, 316 Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA:
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NACE, NEMA
220 models matching criteria
6900GZE12
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
100+ In Stock
6900GZE14
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
100+ In Stock
6900GZE16
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
100+ In Stock
6900GZE18
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
100+ In Stock
6900GZE22
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
100+ In Stock
6900GZE20
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
100+ In Stock
6900GZEM18
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
23 In Stock
$1,102.00USD
$9.99 Shipping
6900GZE24
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
20 In Stock
6900GZEM16
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
13 In Stock
$1,102.00USD
$9.99 Shipping
6900GZEM22
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
13 In Stock
6900GCE12
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: UL, CSA, CE, CRN, CCC, Dual Seal
8 In Stock
6900GZEM12
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
7 In Stock
$1,102.00USD
$9.99 Shipping
6900GCE16
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: UL, CSA, CE, CRN, CCC, Dual Seal
6 In Stock
$1,158.00USD
$9.99 Shipping
6900GCE14
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: UL, CSA, CE, CRN, CCC, Dual Seal
3 In Stock
$1,158.00USD
$9.99 Shipping
6900GZEM20
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
3 In Stock
6900GZE12-7065
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Teflon Leads, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
2 In Stock
6900GZE14-7042
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SST Body, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
1 In Stock
$541.00USD
$9.99 Shipping
6900GZEM14
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
1 In Stock
$1,102.00USD
$9.99 Shipping
6900GCE24
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: UL, CSA, CE, CRN, CCC, Dual Seal
1 In Stock
$1,158.00USD
$9.99 Shipping
6900GCE16-7042
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SST Body, Approvals: UL, CSA, CE, CRN, CCC, Dual Seal
Out of Stock
$741.00USD
$9.99 Shipping
6900GZE18-7008
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, Teflon Leads
8 - 10 weeks
$1,102.00USD
$9.99 Shipping
available on backorder
6900GZE16-7054
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, 2 Meter Free Leads
5 - 7 weeks
$1,110.00USD
$9.99 Shipping
available on backorder
6900GZE232
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Special Range
5 - 7 weeks
$1,119.00USD
$9.99 Shipping
available on backorder
6900GZEF20
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Ethylene Propylene O-Ring, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
Out of Stock
46-1058-1
CCS DUAL-SNAP Electrical Assembly, 611/6900/674 Series, All Ranges, SPDT, Haz. Area
Out of Stock

6900GZE

Base Model

Welded Internal Diaphragm

A metal diaphragm is welded to the inside of the pressure port, eliminating the O-Ring. This arrangement may be desired for processes where O-Rings may present a problem.

Process Connection

Diaphragm

O-Ring

Output

Electrical Contacts

Electrical Connection

Electrical - Free Leads

Enclosure Material

  • view details

Agency Approvals

Paint

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • cUL
  • Dual Seal
  • IEC Ex
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate

  • bar: 0.14 to 19.3
  • kPa: 13.8 to 1,931
  • psi: 2 to 280

Diaphragm Material

  • Hastelloy® C-276
  • Monel®
  • Stainless Steel

Electrical - Free Leads

  • 18" (45 cm) Free Leads
  • 18" (45 cm) Teflon Leadwire

Electrical Assembly

  • 316 Stainless Steel
  • Hermetic Seal

Electrical Certification

  • ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex D IIC, 08-ATEX-
  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
  • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

Electrical Connectors

  • 1/2" NPT Male
  • M20 Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Stainless Steel
  • Aluminum

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

NACE & NIST

  • NACE MR-0175:2003

NPT Connection

  • 1/2" NPT Female Welded Diaphragm - Internal with Port Cavity

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • None
  • Viton

Process Connection Material

  • 316 Stainless Steel
  • Hastelloy® C-276
  • Monel®

Proof Pressure

  • bar: 51.7 to 310
  • kPa: 5,171 to 31,026
  • psig: 750 to 4,500

Service

  • Sour (Oil & Gas)

Set Point - Decreasing

  • bar: 0.07 to 215
  • kPa: 6.9 to 21,512
  • psig: 1 to 3,120

Set Point - Increasing

  • bar: 0.21 to 234
  • kPa: 20.7 to 23,442
  • psig: 3 to 3,400

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 34.5 to 207
  • kPa: 3,447 to 20,684
  • psig: 500 to 3,000

Typical Applications

  • Boilers & Burners
  • Chemical & Petrochemical Plants
  • Chemical Refining & Processing
  • Degreasers & Evaporators
  • Fluid Management
  • Food Processing
  • Ground Support Equipment
  • Hydraulic & Lubrication Systems
  • Heating & Air Conditioning
  • Manufacturing Process
  • Marine Equipment
  • Offshore Oil Rigs
  • Oil & Gas
  • Pipelines
  • Power Generation
  • Power Plants
  • Pulp & Paper Mills
  • Pumps, Compressors & Turbines
  • Recovery Systems
  • Refineries
  • Reverse Osmosis Systems & Filters
  • Safety Systems
  • Specialized OEM Equipment
  • Steel Mills
  • Utilities
  • Water Treatment, Waste & Sewage Treatment Facilities
