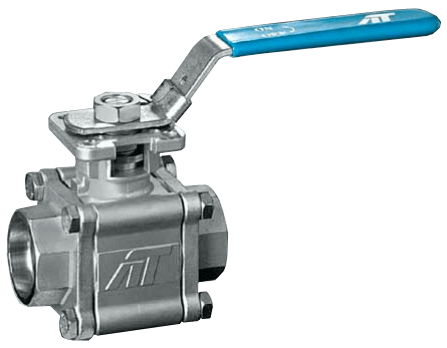

V7 Manual Control Valve

Brand: A-T Controls, Inc.
Request Information
Favorite
The A-T Controls V Series rotary valve is a throttling control segment-ball valve the provides high flow capacity with optimum characteristics for industrial markets including Pulp and Paper, Refinery, Chemical, and Petrochemical Industries.
Features
  • Design: 3-Piece Control Valve
  • Size: 1/2" to 4"
  • Port: 30°, 60°, 90° V-Port
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: CF3M, Stainless Steel or Low Carbon 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: PTFE, 50/50%, Cavity Filled
  • End Connections: Sanitary Ends
show more
The A-T Controls V Series rotary valve is a throttling control segment-ball valve the provides high flow capacity with optimum characteristics for industrial markets including Pulp and Paper, Refinery, Chemical, and Petrochemical Industries.
Features
  • Design: 3-Piece Control Valve
  • Size: 1/2" to 4"
  • Port: 30°, 60°, 90° V-Port
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: CF3M, Stainless Steel or Low Carbon 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: PTFE, 50/50%, Cavity Filled
  • End Connections: Sanitary Ends
Close

Displaying prices & availability for United States in USD. Change location or currency

8 models matching criteria
V7-DA-0050-PXX-3
A-T CONTROLS Series V7 V-Port Control Valve, SST, 1/2" Tube OD, PTFE, 30deg V-Port View More
  • Design: 3-Piece
  • Size: 1/2" Tube OD
  • Port: 30° V-Port
  • Materials of Construction:
    • Body: CF3M
    • Trim: 316 Stainless Steel
    • Seats: PTFE

  • End Connections: Tube OD
2 - 4 weeks
$283.01USD
$19.16 Shipping
V7-SA-0100-PXX-3
A-T CONTROLS Series V7 V-Port Control Valve, SST, 1", Sanitary Clamp Ends, PTFE, 30° V-Port View More
  • V7: 3 Piece Sanitary, V-Port

    • ​SST Body and Trim

  • SA: Sanitary Clamp Ends, Non-Cavity Filled
  • 0100: 1" Valve Size
  • P: Virgin TFE Seats
  • XX: No Specials
  • 3: 30° V-Port (v-ball)
2 - 4 weeks
$283.01USD
$19.16 Shipping
V7-DA-0050-PXX-9
A-T CONTROLS Series V7 V-Port Control Valve, SST, 1/2" Tube OD, PTFE, 90deg V-Port View More
  • Design: 3-Piece
  • Size: 1/2" Tube OD
  • Port: 90° V-Port
  • Materials of Construction:
    • Body: CF3M
    • Trim: 316 Stainless Steel
    • Seats: PTFE

  • End Connections: Tube OD
2 - 4 weeks
$292.59USD
$19.16 Shipping
V7-DA-0100-PXX-3
A-T CONTROLS Series V7 V-Port Control Valve, SST, 1" Tube OD, PTFE, 30deg V-Port View More
  • Design: 3-Piece
  • Size: 1" Tube OD
  • Port: 30° V-Port
  • Materials of Construction:
    • Body: CF3M
    • Trim: 316 Stainless Steel
    • Seats: PTFE

  • End Connections: Tube OD
2 - 4 weeks
$301.43USD
$19.16 Shipping
V7-SF-0100-PXX-3
A-T CONTROLS Series V7 Control Port Ball Valve, SST, 150# Flange, 1", Sanitary Fill, w/TFE Seats View More
  • V7: 3 Piece Sanitary, V-Port

    • ​SST Body and Trim

  • SF: Sanitary Clamp Ends, With Cavity Filler
  • 0100: 1" Valve Size
  • P: Virgin TFE Seats
  • XX: No Specials
  • 3: 30° V-Port (v-ball)
2 - 4 weeks
$305.85USD
$19.16 Shipping
V7-DA-0075-PXX-3
A-T CONTROLS Series V7 V-Port Control Valve, SST, 3/4" Tube OD, PTFE, 30deg V-Port View More
  • Design: 3-Piece
  • Size: 3/4" Tube OD
  • Port: 30° V-Port
  • Materials of Construction:
    • Body: CF3M
    • Trim: 316 Stainless Steel
    • Seats: PTFE

  • End Connections: Tube OD
2 - 4 weeks
$311.01USD
$19.16 Shipping
V7-DA-0075-PXX-6
A-T CONTROLS Series V7 V-Port Control Valve, SST, 3/4" Tube OD, PTFE, 60deg V-Port View More
  • Design: 3-Piece
  • Size: 3/4" Tube OD
  • Port: 60° V-Port
  • Materials of Construction:
    • Body: CF3M
    • Trim: 316 Stainless Steel
    • Seats: PTFE

  • End Connections: Tube OD
2 - 4 weeks
$311.01USD
$19.16 Shipping
V7-SA-0250-PXX-3
A-T CONTROLS Series V7 V-Port Control Valve, SST, 2.5", Sanitary Clamp Ends, PTFE, 30° V-Port View More
  • V7: 3 Piece Sanitary, V-Port

    • ​SST Body and Trim

  • SA: Sanitary Clamp Ends, Non-Cavity Filled
  • 0250: 2.5" Valve Size
  • P: Virgin TFE Seats
  • XX: No Specials
  • 3: 30° V-Port (v-ball)
2 - 4 weeks
$1,240.37USD
$19.16 Shipping
Close
Close

Specifications

Brand

Applications

  • Chemicals
  • Flow Control
  • Gases
  • Liquid
  • Petrochemical
  • Pressure Monitoring
  • Pulp & Paper
  • Refineries
  • Steam
  • Viscous Media & Slurry

Approvals & Certifications

  • CE
  • IEC 61508: 2010, SIL 3
  • ISO 5211

Enclosure, Body Material

  • Low Carbon 316 Stainless Steel

Options

  • Cleaned for Oxygen
  • Degrease & Bagged

Port

  • 30° V-Port (V-Ball)
  • 60° V-Port (V-Ball)
  • 90° V-Port (V-Ball)

Pressure Rating

  • psi: 1,000

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • 50 % Stainless Steel Powder / 50 % Carbon-Filled Teflon
  • PTFE

Standard Features

  • 3-Piece V-Port

Tri-Clamp Connection

  • 1” Sanitary Clamp
  • 1/2” Sanitary Clamp
  • 1-1/2” Sanitary Clamp
  • 2” Sanitary Clamp
  • 2-1/2” Sanitary Clamp
  • 3” Sanitary Clamp
  • 3/4” Sanitary Clamp
  • 4” Sanitary Clamp

Trim Material

  • 316 Stainless Steel

Valve Type

  • Manual
Close

Typical Applications

  • Chemicals
  • Flow Control
  • Gases
  • Liquid
  • Petrochemical
  • Pressure Monitoring
  • Pulp & Paper
  • Refineries
  • Steam
  • Viscous Media & Slurry
