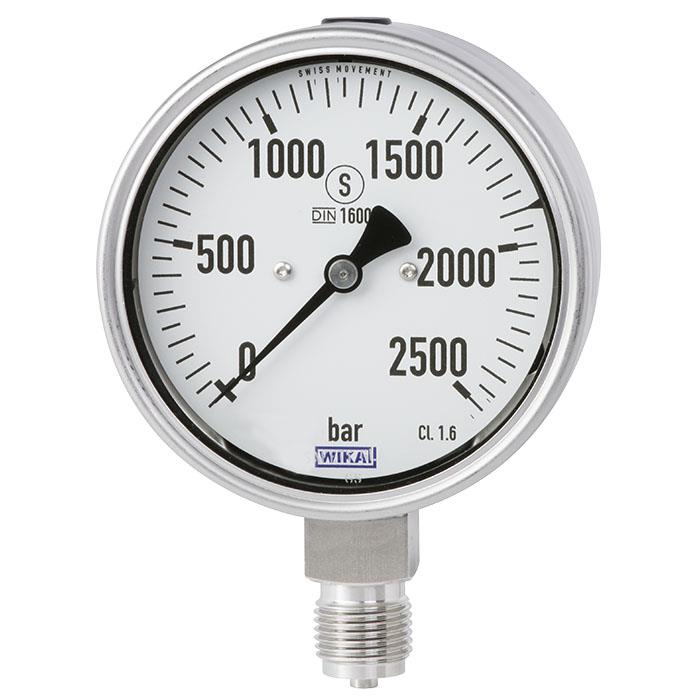

Bourdon Tube Pressure Gauge, Stainless Steel - NewPG23HP-S

Brand: WIKA Instruments Ltd.
The model PG23HP-S Bourdon tube pressure gauge has been designed specifically for high-pressure applications up to 3,000 bar.

Typical measuring points for this pressure gauge can be found in water jet cutting, high-pressure cleaning and test bench construction.
Features
  • Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of the DIN 16001 high-pressure standard.
  • Wetted parts from stainless steel 316L.
  • Long service life with static pressure profiles.
  • Scale ranges from 0 ... 2,000 bar to 0 … 3,000 bar.
show more
Images are representations only.
The model PG23HP-S Bourdon tube pressure gauge has been designed specifically for high-pressure applications up to 3,000 bar.

Typical measuring points for this pressure gauge can be found in water jet cutting, high-pressure cleaning and test bench construction.
Features
  • Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of the DIN 16001 high-pressure standard.
  • Wetted parts from stainless steel 316L.
  • Long service life with static pressure profiles.
  • Scale ranges from 0 ... 2,000 bar to 0 … 3,000 bar.

Specifications

Design

  • ASME B40. 100

Sizes

  • 2” (50 mm)
  • 1 ½” (40 mm)

Accuracy Class

  • 1 ½”: ± 3/2/3% of span (ASME B40.100 Grade B)
  • 2”: ± 2/1/2% of span (ASME B40.100 Grade A)

Ranges

  • Pressure from 15 psi up to 6000 psi or other equivalent units of pressure or vacuum
  • Vacuum / compound to 30”Hg/0/300 psi

Working Pressure

  • Short time: Full Scale Value
  • Fluctuating: 2 /3 Full Scale Value
  • Steady: ¾ Full Scale Value

Operating Temperature

  • Medium: +212° F (+100° C) maximum
  • Ambient: -40° F to +140° F (-40° C to +60° C)

Temperature Error

  • Additional error when temperature changes from reference temperature of 68° F (20° C) ±0.4% for every 18° F (10° C) rising or falling. Percentage of span.

Weather Protection

  • Weather resistant (NEMA 3 / IP 54)

Pressure Connection

  • Wetted surface finish: Ra < 1.0µm (Ra < 40µinch)-interna
  • Type of Connection: 1/4" NPT - Male
  • Position: Lower mount (LM) & center back mount (CBM)
  • Material: 316L Stainless Steel

Bourdon Tube

  • Helium leak tested 1 x 10-9 scc/sec (inboard)
  • 1,500 to 6000 psi, helical type
  • 30”Hg (vac) to 1,000 psi, C-type
  • Material: 316L Stainless Steel

Socket

  • Ra < 1.0µm (Ra < 40µinch) - internal
  • Material: 316L Stainless Steel

Movement

  • Stainless steel

Dial

  • White aluminum with stop pin and black lettering

Pointer

  • Black aluminum

Case

  • 304 Stainless Steel, electropolished

Window

  • Polycarbonate: twist-lock (2”); snap cap (1½”)

Typical Applications

  • For liquid media in high-pressure applications (e.g. water, hydraulic oil)
  • Test benches (e.g. for hydraulic components)
  • Water jet cutting
  • High-pressure cleaning
  • High-pressure generation
