Images are representations only.

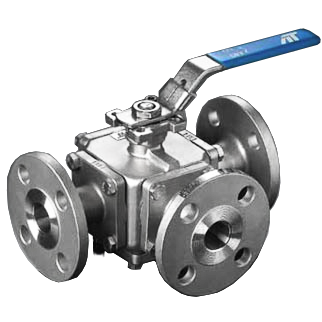

53 Series 5-Way Manual Ball Valve

Brand: A-T Controls, Inc.
Features:
  • Design: Multi-Port 5-Way Valve
  • Size: 1/4" to 4"
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE, PTFE, 50/50%, Cavity Filled
  • End Connections: Threaded Ends, Socket Weld, Butt Weld, Sanitary, 150# Flanged
  • Maximum Pressure Rating: psig: 300 to 1,000 (valve size dependent)
show more
Features:
  • Design: Multi-Port 5-Way Valve
  • Size: 1/4" to 4"
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE, PTFE, 50/50%, Cavity Filled
  • End Connections: Threaded Ends, Socket Weld, Butt Weld, Sanitary, 150# Flanged
  • Maximum Pressure Rating: psig: 300 to 1,000 (valve size dependent)
53-TH-0200-XXX-O
A-T CONTROLS Series 53 Ball Valve, 2" 5-Way, SST, Threaded Ends, RTFE, VL-Port, Arrangement "O"
2 - 4 weeks
$1,722.19USD
$16.16 Shipping

Specifications

Direct Mount

  • Yes

Enclosure, Body Material

  • 316 Stainless Steel

Flange Size - 1" (DN25)

  • 1" (DN25) - 150#

Flange Size - 1/2" (DN15)

  • 1/2" (DN15) - 150#

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150#

Flange Size - 2" (DN50)

  • 2" (DN50) - 150#

Flange Size - 2-1/2" (DN65)

  • 2-1/2" (DN65) - 150#

Flange Size - 3" (DN80)

  • 3" (DN80) - 150#

Flange Size - 3/4" (DN20)

  • 3/4" (DN20) - 150#

Flange Size - 4" (DN100)

  • 4" (DN100) - 150#

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1-1/2" NPT Female
  • 1-1/4" NPT Female
  • 2" NPT Female
  • 2-1/2" NPT Female
  • 3" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female
  • 4" NPT Female

Options

  • 5-Way Multi-Port Valve

Port

  • Full

Pressure Rating

  • psig: 300 to 1,000

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • 50% Stainless Steel Powder / 50% Carbon Filled Teflon
  • Cavity Filled
  • PTFE (Carbon Filled Teflon)
  • RTFE (Reinforced Teflon)

Standard Features

  • 5-Way High Performance, Direct Mount

TA-Luft Certified

  • Yes

Tri-Clamp Connection

  • 1" Sanitary Clamp
  • 1/2" Sanitary Clamp
  • 1-1/2" Sanitary Clamp
  • 2" Sanitary Clamp
  • 2-1/2" Sanitary Clamp
  • 3" Sanitary Clamp
  • 3/4" Sanitary Clamp
  • 4" Sanitary Clamp

Trim Material

  • 316 Stainless Steel

Valve Type

  • Manual

Welded Connection

  • 1" Butt Weld End
  • 1" Socket Weld End
  • 1/2" Butt Weld End
  • 1/2" Socket Weld End
  • 1/4" Butt Weld End
  • 1/4" Socket Weld End
  • 1-1/2" Butt Weld End
  • 1-1/2" Socket Weld End
  • 1-1/4" Butt Weld End
  • 1-1/4" Socket Weld End
  • 2" Butt Weld End
  • 2" Socket Weld End
  • 2-1/2" Butt Weld End
  • 2-1/2" Socket Weld End
  • 3" Butt Weld End
  • 3" Socket Weld End
  • 3/4" Butt Weld End
  • 3/4" Socket Weld End
  • 3/8" Butt Weld End
  • 3/8" Socket Weld End
  • 4" Butt Weld End
  • 4" Socket Weld End
