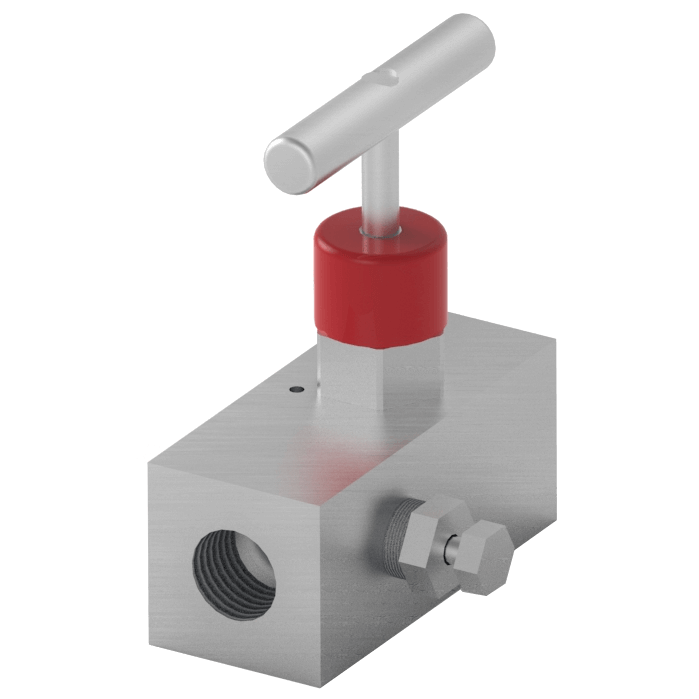

NV03 Block & Bleed Manifold

Brand: Bifold Group
A Single Isolated Valve Block and Capative Vent Plug Bleed Gauge / Intrument manifold, with pressure rated up to 10,000 psi / 690 bar. The valve is suitable for either panel or pipe mounting. The manifold design permitsisolation and controlled venting of the instrument for calibration and or removal from the circuit, whilst leaving the process intact.
Features
  • Robust one piece body construction
  • Anti-blow out stem
  • Non-rotating, anti-galling tip as standard
  • Non-removable stem on the captive vent plug
  • Viton / RTFE stem sealing - maintaince free
  • Metal to metal seating
  • Unique compact design to save space and weight
  • Full material traceability and individual serial number stamped on the valve
  • Back seating needle
show more
A Single Isolated Valve Block and Capative Vent Plug Bleed Gauge / Intrument manifold, with pressure rated up to 10,000 psi / 690 bar. The valve is suitable for either panel or pipe mounting. The manifold design permitsisolation and controlled venting of the instrument for calibration and or removal from the circuit, whilst leaving the process intact.
Features
  • Robust one piece body construction
  • Anti-blow out stem
  • Non-rotating, anti-galling tip as standard
  • Non-removable stem on the captive vent plug
  • Viton / RTFE stem sealing - maintaince free
  • Metal to metal seating
  • Unique compact design to save space and weight
  • Full material traceability and individual serial number stamped on the valve
  • Back seating needle

Specifications

Brand

Approvals & Certifications

  • ISO 15156

Bore Size

  • 0.19" (5 mm)
  • 0.31" (8 mm)

BSP Connection

  • 1" BSPP Female
  • 1" BSPT Female
  • 1" BSPP Male
  • 1" BSPT Male
  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/2" BSPP Male
  • 1/2" BSPT Male
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 1/4" BSPP Male
  • 1/4" BSPT Male
  • 3/4" BSPP Female
  • 3/4" BSPT Female
  • 3/4" BSPP Male
  • 3/4" BSPT Male
  • 3/8" BSPP Female
  • 3/8" BSPT Female
  • 3/8" BSPP Male
  • 3/8" BSPT Male
  • 9/16" BSPP Female
  • 9/16" BSPT Female
  • 9/16" BSPP Male
  • 9/16" BSPT Male

BSP Inlet

  • 1" BSPP Female
  • 1" BSPT Female
  • 1" BSPP Male
  • 1" BSPT Male
  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/2" BSPP Male
  • 1/2" BSPT Male
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 1/4" BSPP Male
  • 1/4" BSPT Male
  • 3/4" BSPP Female
  • 3/4" BSPT Female
  • 3/4" BSPP Male
  • 3/4" BSPT Male
  • 3/8" BSPP Female
  • 3/8" BSPT Female
  • 3/8" BSPP Male
  • 3/8" BSPT Male
  • 9/16" BSPP Female
  • 9/16" BSPT Female
  • 9/16" BSPP Male
  • 9/16" BSPT Male

BSP Outlet

  • 1" BSPP Female
  • 1" BSPT Female
  • 1" BSPP Male
  • 1" BSPT Male
  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/2" BSPP Male
  • 1/2" BSPT Male
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 1/4" BPST Male
  • 1/4" BSPP Male
  • 3/4" BSPP Female
  • 3/4" BSPT Female
  • 3/4" BSPP Male
  • 3/4" BSPT Male
  • 3/8" BSPP Female
  • 3/8" BSPT Female
  • 3/8" BSPP Male
  • 3/8" BSPT Male
  • 9/16" BSPP Female
  • 9/16" BSPT Female
  • 9/16" BSPP Male
  • 9/16" BSPT Male

Cone & Thread Connection

  • 1" Female Medium Pressure
  • 1/2" Female Medium Pressure
  • 1/4" Female Medium Pressure
  • 3/4" Female Medium Pressure
  • 3/8" Female Medium Pressure
  • 9/16" Female Medium Pressure

Enclosure, Body Material

  • Carbon Steel
  • Duplex
  • Stainless Steel
  • Super Duplex

Mounting

  • DIN 61518
  • Panel
  • Pipe

NACE & NIST

  • NACE MR-01-75

NPT Connection

  • 1" NPT Female
  • 1" NPT Male
  • 1/2" NPT Female
  • 1/2" NPT Male
  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/4" NPT Female
  • 3/4" NPT Male
  • 3/8" NPT Female
  • 3/8" NPT Male
  • 9/16" NPT Female
  • 9/16" NPT Male

NPT Inlet

  • 1" NPT Female
  • 1" NPT Male
  • 1/2" NPT Female
  • 1/2" NPT Male
  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/4" NPT Female
  • 3/4" NPT Male
  • 3/8" NPT Female
  • 3/8" NPT Male
  • 9/16" NPT Female
  • 9/16" NPT Male

NPT Outlet

  • 1" NPT Female
  • 1" NPT Male
  • 1/2" NPT Female
  • 1/2" NPT Male
  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/4" NPT Female
  • 3/4" NPT Male
  • 3/8" NPT Female
  • 3/8" NPT Male
  • 9/16" NPT Female
  • 9/16" NPT Male

Operating Temperature

  • -20° to 180° C (-4° to 356° F)
  • -45° to 225° C (-49° to 437° F) - for Alternative Use

Pressure Range

  • psi: 0 to 10,000 (kPa: 0 to 69,000, bar: 0 to 690)

SAE Connection

  • 1" SAE Female
  • 1" SAE Male
  • 1/2" SAE Female
  • 1/2" SAE Male
  • 1/4" SAE Female
  • 1/4" SAE Male
  • 3/4" SAE Female
  • 3/4" SAE Male
  • 3/8" SAE Female
  • 3/8" SAE Male
  • 9/16" SAE Female
  • 9/16" SAE Male

SAE Inlet

  • 1" SAE Female
  • 1" SAE Male
  • 1/2" SAE Female
  • 1/2" SAE Male
  • 1/4" SAE Female
  • 1/4" SAE Male
  • 3/4" SAE Female
  • 3/4" SAE Male
  • 3/8" SAE Female
  • 3/8" SAE Male
  • 9/16" SAE Female
  • 9/16" SAE Male

SAE Outlet

  • 1" SAE Female
  • 1" SAE Male
  • 1/2" SAE Female
  • 1/2" SAE Male
  • 1/4" SAE Female
  • 1/4" SAE Male
  • 3/4" SAE Female
  • 3/4" SAE Male
  • 3/8" SAE Female
  • 3/8" SAE Male
  • 9/16" SAE Female
  • 9/16" SAE Male

Seat / Seal Material

  • Seal: RTFE (Reinforced Teflon) Stem Sealing
  • Seal: Viton Stem Sealing
  • Seat: Metal to Metal

Supply Pressure - Maximum

  • psi: 10,000 (kPa: 68,950, bar: 689)
  • psi: 6,000 (kPa: 41,370, bar: 413.7)

Tip Style

  • Metal Ball
  • Metal Tip

Valve Type

  • Manual

Welded Connection

  • 1" Butt Weld End
  • 1" Socket Weld End
  • 1/2" Butt Weld End
  • 1/2" Socket Weld End
  • 1/4" Butt Weld End
  • 1/4" Socket Weld End
  • 3/4" Butt Weld End
  • 3/4" Socket Weld End
  • 3/8" Butt Weld End
  • 3/8" Socket Weld End
  • 9/16" Butt Weld End
  • 9/16" Socket Weld End
