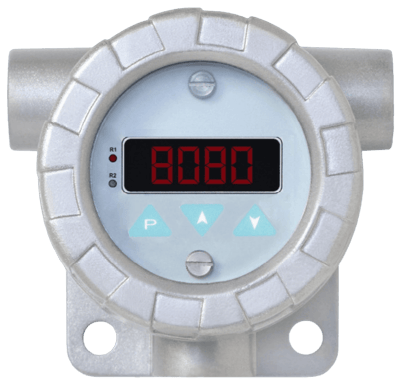

108RR Field Mounted Process Indicator

Brand: International Metal Engineering (IME)
IME Model 108RR Digital Indicator allows the 4-20 mA two wire signal from any transmitter to be monitored in engineering units and two corresponding alarms to be assigned. Both alarms can be assigned either high or low within the selected range. In addition the Model 108RR allows the re-transmission of the 4-20 mA signal.

IME Model 108RR Indicators are designed for use in process industries where vibration, inclement weather and corrosive atmospheres prevail. The electronics are enclosed in a low cost UV resistant polycarbonate housing, which meets NEMA 4X and IP66/68 requirements.
Features
  • 4-20 mA input/output
  • 4-digit LED display in engineering units
  • Two independent user assignable alarms
  • Polycarbonate enclosure
  • Wall or pipe mounting
IME Model 108RR Digital Indicator allows the 4-20 mA two wire signal from any transmitter to be monitored in engineering units and two corresponding alarms to be assigned. Both alarms can be assigned either high or low within the selected range. In addition the Model 108RR allows the re-transmission of the 4-20 mA signal.

IME Model 108RR Indicators are designed for use in process industries where vibration, inclement weather and corrosive atmospheres prevail. The electronics are enclosed in a low cost UV resistant polycarbonate housing, which meets NEMA 4X and IP66/68 requirements.
Features
  • 4-20 mA input/output
  • 4-digit LED display in engineering units
  • Two independent user assignable alarms
  • Polycarbonate enclosure
  • Wall or pipe mounting

Specifications

Accuracy

  • Alarm Set Point Accuracy: ± 0.5 % of Full Scale
  • Indication Accuracy: 0.1 % of Calibrated Range ± 1-Digit

Adjustable Set Point Range

  • 0 to 100 % of Full Scale

Conduit Connection

  • 1/2” NPT Female
  • 3/4” NPT Female
  • M20 x 1.5P

Diameter

  • Cable Size: 0.19 to 0.70” (5 to 18 mm)

Display

  • 4-Digit LED Display

Enclosure, Body Material

  • UV Resistant Polycarbonate

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X

Indication

  • Alarm Status Indication: LED on Front Panel

Input

  • 4-20 mA

Instrument Connection

  • 1/2” NPT
  • M16 x 2P

Mounting

  • Field Mounting
  • Pipe
  • Wall Mounting

O-Ring Material

  • Hydrogenated Nitrile

Operating Temperature

  • Ambient Operating Temperature: -40° to 60° C (-40° to 140° F)

Output

  • 4-20 mA
  • Alarm Output: 2 Sets SPDT, 1 Form C, Rated 5 A @ 230 Vac, 50/60 Hz

Stability

  • Stability over Time: 0.1 % of Calibrated Range ± 1-Digit over 6 Months

Supply Voltage

  • 18-28 Vdc
