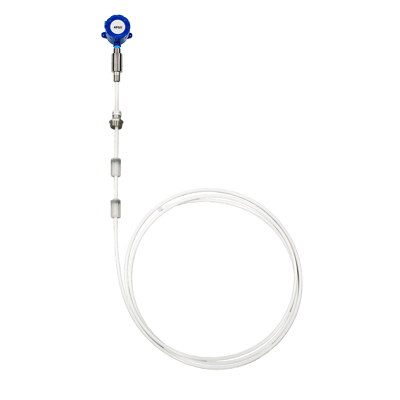

MPXI-F Magnetostrictive Level Sensors

Brand: Automation Products Group - APG

The Explosion-Proof MPXI-F features a flexible proprietary- 316L SS braided-tubing stem for easy installation in tall tanks.



Features
  • Multiple output choices
  • Tank cloud compatible
  • Quick start-up
  • Flexible



The Explosion-Proof MPXI-F features a flexible proprietary- 316L SS braided-tubing stem for easy installation in tall tanks.



Features
  • Multiple output choices
  • Tank cloud compatible
  • Quick start-up
  • Flexible



Close

Specifications

Brand

Accuracy

  • 4-20 mA: Greater of ± 0.04 in. (± 1 mm) or 0.05 % of full range
  • Modbus: ± 0.04 in. (± 1 mm)

Approvals

  • CSA
  • ATEX
  • IECEX

Current Draw

  • 4-20 mA, single float: 22 mA max
  • 4-20 mA, dual float: 44 mA max
  • Modbus, single or dual: 15 mA typ.

Housing Material

  • Cast aluminum, epoxy coated

Internet Connectivity

  • Tank Cloud LOE Master - Modbus only
  • RST-5003 - 4-20 mA or Modbus

Operating Temperature

  • -40° to 185° F, -40° to 85° C

Output

  • Single or dual loop-powered 4-20 mA
  • Modbus RTU (RS-485), optional temperature sensors

Protection

  • Reverse polarity
  • CE compliant to EN 61326

Protection Rating

  • NEMA 4X
  • IP66

Resolution

  • 4-20 mA: 14-bit DAC (1 mm)
  • Modbus: ± 0.04 in. (± 1 mm)

Stem

  • 5/8" Ø Flexible Tubing, proprietary PVDF formulation
  • 7/8" Ø Flexible Tubing with Braid
  • 316L Stainless Steel

Stem Length

  • 4 - 32 ft, 1.22 - 9.75 m

Supply Voltage

  • 4-20 mA: 24 VDC
  • Modbus: 12-24 VDC

Temperature

  • Digital Temp Sensor: ± 1° C API 18.2
  • Temp Sensor: ± 0.25° C over -40° to 85° C ± 0.13° C over 20° to 70° C
