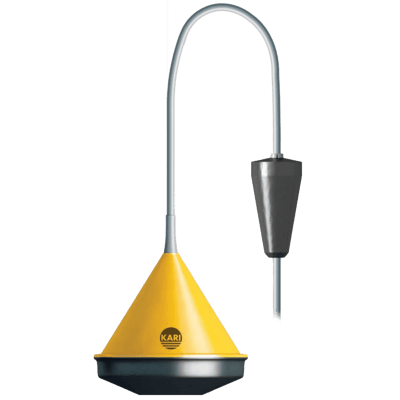

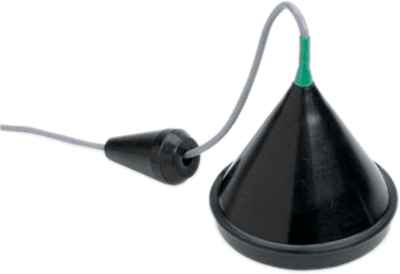

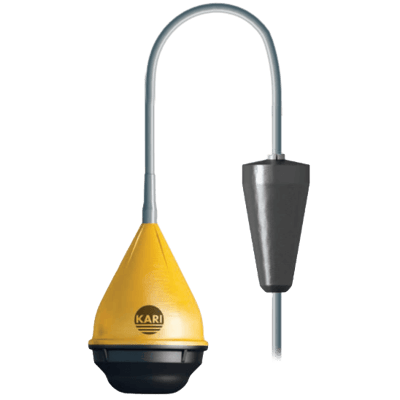

KA-4 Level Float Switch

Brand: Automation Products Group - APG
Kari cable suspended float switches are capable of up to four switching levels in a single float, and offer 25 different configurations - including some with built in hysteresis. That means you can replace up to four single level float switches with one 4-point level switch. Kari offers high chemical compatibility and durable components built to outlast any other.
Features
  • Up to 4 switching levels
  • Optional built-in hysteresis
  • 25 configurations
  • Mercury and Lead free
  • High chemical compatibility
  • Proven reliability in operation
  • Cost effective



Kari cable suspended float switches are capable of up to four switching levels in a single float, and offer 25 different configurations - including some with built in hysteresis. That means you can replace up to four single level float switches with one 4-point level switch. Kari offers high chemical compatibility and durable components built to outlast any other.
Features
  • Up to 4 switching levels
  • Optional built-in hysteresis
  • 25 configurations
  • Mercury and Lead free
  • High chemical compatibility
  • Proven reliability in operation
  • Cost effective



Specifications

Approvals & Certifications

  • CE
  • CSA General-purpose
  • RoHS

Cable Length

  • 16 feet (5 metres) Standard
  • 49 feet (15 metres) Standard

Cable Material

  • PTFE (Teflon) - Optional
  • PVC - Standard
  • Rubber - Optional
  • TPU (Oil Resistant) - Optional

Consumption

  • Maximum

Current

  • Maximum

Enclosure, Body Material

  • Polypropylene

Electrical Connectors

  • Up to 5-Wires Cable

Electrical Contacts

  • Normally Closed or Normally Open

Environmental Protection

  • IP67
  • NEMA 6

Fluid Specific Gravity

  • Minimum 0.7 for Standard Float, 0.95 for Mini Float

Length

  • Switching Differential: 10” to 50” (254 to 1270 mm) Standard
  • Switching Differential: 2.5” to 75” (63.5 to 1905 mm) Optional

Operating Voltages

  • Maximum

Pressure Rating

  • psi: 28 (bar: 2, kPa: 200)

Process Temperature

  • Optional: 80° C (176° F)
  • Standard 54° C (130° F)

Sensor, Probe Style

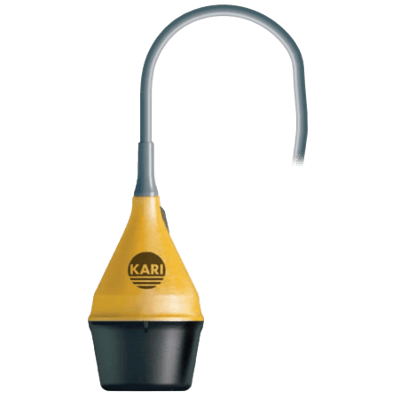

  • Float

Switch Points

  • 4
