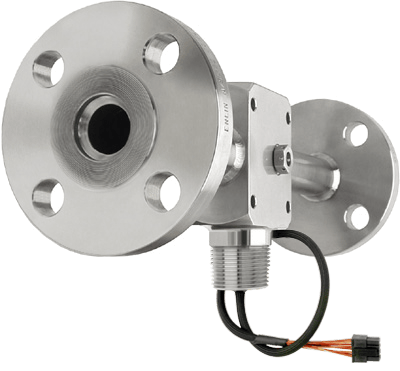

Kayden CLASSIC 832 Spare Sensor, In-Line Flanged, P52 Series

Brand: Kayden Instruments
Does not ship to VA, United States
  • Replacement Sensor for Kayden CLASSIC 832 Series
  • Process Connection (Flanged)
    • Raised Face or RTJ (Ring-Type Joint)
    • 3/4", 1", 1-1/2", 2", 3", 4"
    • ANSI Rating: 150#, 300#, 600#
  • Flange Material
    • 316/316L Stainless Steel
    • Other Exotic Metals Available
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Sensor Assembly Body Length (Flange Face to Flange Face)
    • Available in 1/2" (1 cm) increments
    • Min. 7" to Max. 72" (18 cm to 182 cm)
  • Material of Construction - Sensor
    • 316/316L Stainless Steel, Nickel Brazed
  • Bleed Port
    • 1/4" Threaded
  • Sensor Orientation
    • Horizontal or Vertical
  • Pipe Schedule
    • Schedule 40, Schedule 80
  • Sensor Connection Type
    • Molex 8-Pin
  • Approvals (with 832 Switch)
    • UL, FM, CSA, Single Seal, NACE
  • Replacement Sensor for Kayden CLASSIC 832 Series
  • Process Connection (Flanged)
    • Raised Face or RTJ (Ring-Type Joint)
    • 3/4", 1", 1-1/2", 2", 3", 4"
    • ANSI Rating: 150#, 300#, 600#
  • Flange Material
    • 316/316L Stainless Steel
    • Other Exotic Metals Available
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Sensor Assembly Body Length (Flange Face to Flange Face)
    • Available in 1/2" (1 cm) increments
    • Min. 7" to Max. 72" (18 cm to 182 cm)
  • Material of Construction - Sensor
    • 316/316L Stainless Steel, Nickel Brazed
  • Bleed Port
    • 1/4" Threaded
  • Sensor Orientation
    • Horizontal or Vertical
  • Pipe Schedule
    • Schedule 40, Schedule 80
  • Sensor Connection Type
    • Molex 8-Pin
  • Approvals (with 832 Switch)
    • UL, FM, CSA, Single Seal, NACE

Specifications

Approvals & Certifications

  • CRN - Canadian Registration Number - the Kayden Classic P52 Sensor (832 Series) does not have a CRN Number

Bleed Port

  • 1/4” Threaded

Flange Material

  • 316, 316L Stainless Steel

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 1500#
  • 1-1/2” (DN 40) - 300#
  • 1-1/2” (DN 40) - 600#
  • 1-1/2” (DN 40) - 900#

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 1500#
  • 1” (DN 25) - 300#
  • 1” (DN 25) - 600#
  • 1” (DN 25) - 900#

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 150#
  • 10” (DN 250) - 1500#
  • 10” (DN 250) - 300#
  • 10” (DN 250) - 600#
  • 10” (DN 250) - 900#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 1500#
  • 2” (DN 50) - 300#
  • 2” (DN 50) - 600#
  • 2” (DN 50) - 900#

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - 1500#
  • 3” (DN 80) - 300#
  • 3” (DN 80) - 600#
  • 3” (DN 80) - 900#

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 150#
  • 3/4” (DN 20) - 1500#
  • 3/4” (DN 20) - 300#
  • 3/4” (DN 20) - 600#
  • 3/4” (DN 20) - 900#

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - 1500#
  • 4” (DN 100) - 300#
  • 4” (DN 100) - 600#
  • 4” (DN 100) - 900#

Flange Size - 5” (DN 125)

  • 5” (DN 125) - 150#
  • 5” (DN 125) - 1500#
  • 5” (DN 125) - 300#
  • 5” (DN 125) - 600#
  • 5” (DN 125) - 900#

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150#
  • 6” (DN 150) - 1500#
  • 6” (DN 150) - 300#
  • 6” (DN 150) - 600#
  • 6” (DN 150) - 900#

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150#
  • 8” (DN 200) - 1500#
  • 8” (DN 200) - 300#
  • 8” (DN 200) - 600#
  • 8” (DN 200) - 900#

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

Operating Pressure - Sensor

  • Maximum

Operating Temperature - Sensor

  • -45° to 200° C (-50° to 392° F)

Pipe Schedule

  • Schedule 40
  • Schedule 80

Response Time

  • Approximately 0.5 to 30 seconds

Sensor Assembly Body Lengths

  • Custom Body Lengths: 7” to 72” (18 cm to 182 cm) in 1/2” (1 cm) Increments

Sensor Orientation

  • Horizontal
  • Vertical

Sensor, Probe Connection Type

  • Molex 8-Pin

Sensor, Probe Style

  • InLine

Wetted Materials

  • 316, 316L Stainless Steel with Nickel Brazing
