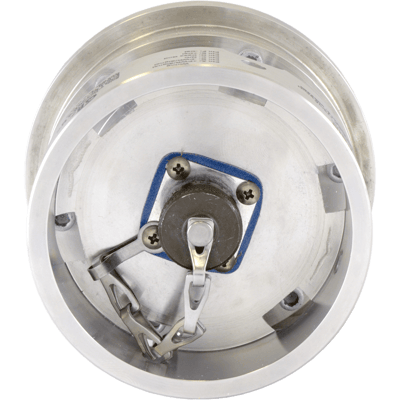

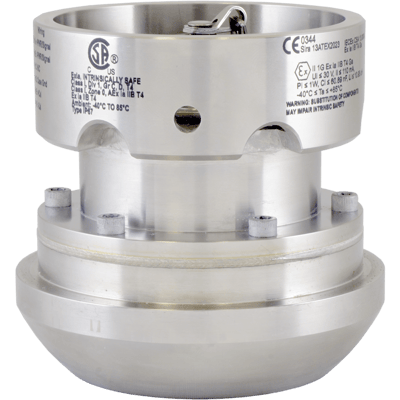

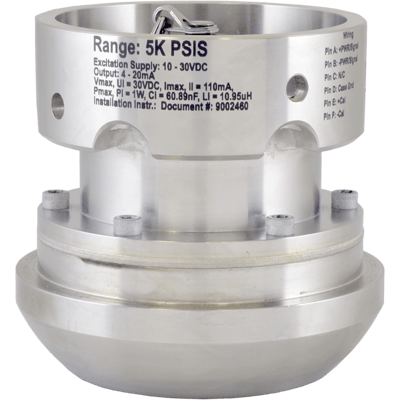

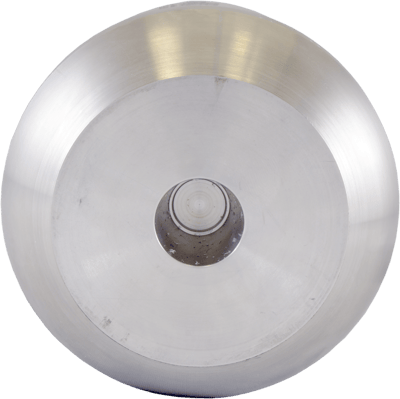

HU Pressure Transmitter

Brand: Automation Products Group - APG
The Hammer Union Pressure Transmitter is an extremely rugged pressure transmitter designed specifically for the harsh environment in the oil patch including mud logging and measurement while drilling.
Features
  • Ranges to 20,000 psi
  • 4-20 mA or 0-5 VSC output
  • 1502 or 2202 fitting
  • Exceptional shock and vibration resistance
  • ±0.25% accuracy of full scale
  • CSA/ATEX/IEC Approved
show more
The Hammer Union Pressure Transmitter is an extremely rugged pressure transmitter designed specifically for the harsh environment in the oil patch including mud logging and measurement while drilling.
Features
  • Ranges to 20,000 psi
  • 4-20 mA or 0-5 VSC output
  • 1502 or 2202 fitting
  • Exceptional shock and vibration resistance
  • ±0.25% accuracy of full scale
  • CSA/ATEX/IEC Approved
7 models matching criteria
APG Hammer Union Pressure Transducer, 0-15,000 psi, 4-20 mA, 6-Pin Bayonet, Inconel, 1502 Welded view more
  • Output: 4-20 mA
  • Pressure Range: 0 to 15000 psi Sealed
  • Accuracy: ±0.25 % FSO
  • Supply Voltage: 10-30 VDC
  • Process Fitting: 1502 Large Base Welded, WECO
  • Electrical Connection: 6-Pin Bayonet
    • Pin A: +Power,Pin B:  -Power,Pin C: N/C,Pin D: Case Ground, Pin E: + Cal,Pin F - Cal

  • Temperature Range:
    • Compensated: -40°C to +65°C (-40°F to +150°F)
    • Storage: -50C to +120°C (-50°F to +248°F)
    • Operating: -40°C to +85°C (-40°F to +185°F)

  • Enclosure: NEMA 4X/IP67
  • CSA/cCSAus Intrinsic Safety: Class 1, Division 1; Groups C & D
  • ATEX: 4-20 mA, CE 0344 EX II 1G Ex ia IIB T4
  • IEC: 4-20 mA, EX ia IIB T4
3 In Stock
$1,234.23USD
APG Hammer Union Pressure Transducer, 0-15,000psi, 4-20 mA, 6-PinBayonet SST,Inconel,1502Welded,Cage view more
  • HU1502I: Hammer Union 1502 Fitting Recalibratable Incoloy Pressure Transmitter
  • L24: 4-20 mA
  • 15K: 0 - 15,000 psis
  • PSIS: Sealed Pressure Type
  • E27: 6 pin Bayonet
  • K1: With protective cage assembly
  • Accuracy (linearity, hysteresis, & repeatability): ±0.25% of full scale (BFSL)
  • CSA/c CSA us Contract #237484
  • IS: Class I, Division 1; Groups C & D Class I, Zone 0, AEx ia IIB T4 Ex ia IIB T4 Ambient: -40 - 85ºC
  • ATEX: 4-20 mA CE 0344 EX II 1G Ex ia IIB T4 Ga (Ta = -40°C to +85°C)
  • IECEx: 4-20 mA EX ia IIB T4 Ga (Ta= -40°C to +85°C)
3 In Stock
$1,367.36USD
APG Hammer Union with 1502 Incoloy Base, 0-10000 psi, 4-20 mA, 4-Pin Threaded MS3102 view more
  • HU1502I: Hammer Union 1502 Fitting Recalibratable Incoloy Pressure Transmitter
  • L24: 4-20 mA
  • 10K: 0 - 10,000 psis
  • PSIS: Sealed Pressure Type
  • E26: 4 Pin Threaded MS3102
    • Alternate Wiring:
    • Pin A= No Connection

      Pin B = - Power/ Signal

      Pin C = +Power/Signal

      Pin D = Shunt Cal

  • K0: Standard Enclosure (no option)
  • CSA Class I, Division 1; Groups C & D Class I, Zone 0, Group IIB T4 CE 0344 EX II 1G Ex ia IIB T4 Ga (Ta = -40°C to +85°C)
2 In Stock
Non-Cancellable / Non-Refundable
$1,568.17USD
APG Hammer Union Pressure Transducer, 0-15,000 psi, 4-20 mA, 6-Pin Bayonet, Inconel, 1502 Large view more
  • Output: 4-20 mA
  • Pressure Range: 0 to 15000 psi Sealed
  • Accuracy: ±0.25 % FSO
  • Supply Voltage: 10-30 VDC
  • Process Fitting: 1502 Large Base, WECO
  • Electrical Connection: 6-Pin Bayonet
    • +Power, -Power, N/C, Case Ground, Shunt Cal, Shunt Cal

  • Temperature Range:
    • Compensated: -40°C to +65°C (-40°F to +150°F)
    • Storage: -50C to +120°C (-50°F to +248°F)
    • Operating: -40°C to +85°C (-40°F to +185°F)

  • Enclosure: NEMA 4X/IP67
  • CSA/cCSAus Intrinsic Safety: Class 1, Division 1; Groups C & D
  • ATEX: 4-20 mA, CE 0344 EX II 1G Ex ia IIB T4
  • IEC: 4-20 mA, EX ia IIB T4
1 In Stock
$1,268.80USD
APG Hammer Union Pressure Transducer, 0-10k psi, 4-20 mA, 4-Pin MS3102i, 1502 Incoloy base view more
  • HU: Hammer Union Pressure Transmitter
  • 1502I: 1502 Large Base Welded, WECO, Incoloy base
  • L24: 4-20mA output
  • 10K: 0 - 10,000 psis Pressure Range
  • PSIS: Sealed Pressure Type
  • E11: 4 pin Threaded MS3102
  • K0: No options (standard)
  • B0: APG Labling
  • Accuracy: ±0.25 % FSO
  • Supply Voltage: 10-28 VDC on sensor
  • Temperature Range:
    • Compensated: -40°C to +65°C (-40°F to +150°F)
    • Storage: -50C to +120°C (-50°F to +248°F)
    • Operating: -40°C to +85°C (-40°F to +185°F)

  • Enclosure: NEMA 4X/IP67
  • CSA/cCSAus Intrinsic Safety: Class 1, Division 1; Groups C & D
  • ATEX: 4-20 mA, CE 0344 EX II 1G Ex ia IIB T4
  • IEC: 4-20 mA, EX ia IIB T4
1 In Stock
Non-Cancellable / Non-Refundable
$1,347.50USD
APG Hammer Union with 1502 Incoloy Base, 0-10000 psi, 4-20 mA, 4-Pin Threaded MS3102 view more
  • HU1502I: Hammer Union 1502 Fitting Recalibratable Incoloy Pressure Transmitter
  • L24: 4-20 mA
  • 10K: 0 - 10,000 psis
  • PSIS: Sealed Pressure Type
  • E42: 4 Pin Threaded MS3102 (MS3102E14S-2P)
    • +Power/Signal, -Power/Signal, +Cal, -Cal

  • K0: Standard Enclosure (no option)
  • CSA Class I, Division 1; Groups C & D Class I, Zone 0, Group IIB T4 CE 0344 EX II 1G Ex ia IIB T4 Ga (Ta = -40°C to +85°C)
1 In Stock
Non-Cancellable / Non-Refundable
$1,351.92USD
APG Hammer Union with 1502 Incoloy Base, 0-10,000 psi, 4-20 mA, 4 PIN Amphenol connector view more
  • HU1502I: Hammer Union 1502 Fitting Recalibratable Incoloy Pressure Transmitter
  • L24: 4-20 mA
  • 10K: 0 - 10,000 psis
  • PSIS: Sealed Pressure Type
  • E11: 4 Pin Amphenol connector
  • K0: Standard Enclosure (no option)
  • CSA Class I, Division 1; Groups C & D Class I, Zone 0, Group IIB T4 CE 0344 EX II 1G Ex ia IIB T4 Ga (Ta = -40°C to +85°C)
1 In Stock

Specifications

Accuracy

  • ± 0.25 % BFSL

Approvals & Certifications

  • ATEX
  • CSA Class I, Div. 1, Groups C, D
  • IEC Ex

Burst Pressure

  • 3 times Full Scale or Limit of WECO Fitting, whichever is less

Compensated Temperature

  • -40° to 65° C (-40° to 150° F)

Electrical Connectors

  • 4-Pin ”Mini” Style
  • 4-Pin MS3102
  • 5-Pin ”Mini” Style
  • 6-Pin Bayonet Stainless Steel

Input Power

  • Vdc: 10-30

Insulation Resistance

  • > 100 megaohms at 500 Vac at 70° C (158° F)

NACE & NIST

  • NACE MR-0175, ISO 15156

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Output

  • 0 to 5 Vdc: 110 mA Inrush Current, 3.5 mA Operating Current
  • 3-30 mA Max.

Overpressure & Static Pressure Limits

  • 1.5 x Full Scale or Limit of WECO Fitting, whichever is less.

Pressure Range

  • bar: 0 to 1,034
  • kPa: 0 to 103,421
  • psig: 0 to 15,000

Process Connection - Other

  • Small/Large Hammer Union 2202 WECO Fitting
  • Small/Large Welded Hammer Union 1502 WECO Fitting

Shunt Calibration

  • 100 % of Full Scale Output

Span & Zero Effect

  • ± 0.026 % of Full Scale Output/°C (± 0.01 % of Full Scale Output/°F)

Storage Temperature

  • -50° to 120° C (-58° to 248° F)

Wetted Materials

  • Inconel
