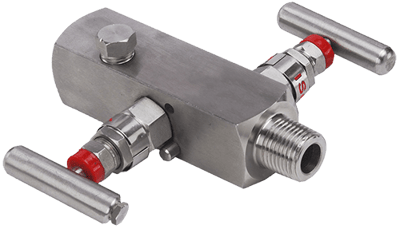

Model 377CB 2-Valve Manifold

Brand: International Metal Engineering (IME)
Request Information
The Model 377CB valve has been designed as an economical and compact valve and yet provide the facilities for remote mount double block and bleed function. Connections can be 1/2" NPT male and female as shown with a 1/4" gauge / vent port available on each side of the body. This design is suitable for applications up to psi: 6,000 (kPa: 41,369, bar: 420).
show more
The Model 377CB valve has been designed as an economical and compact valve and yet provide the facilities for remote mount double block and bleed function. Connections can be 1/2" NPT male and female as shown with a 1/4" gauge / vent port available on each side of the body. This design is suitable for applications up to psi: 6,000 (kPa: 41,369, bar: 420).
Close
Close

Specifications

Brand

Drain, Vent Valves & Plug

  • 1/4” NPT

Enclosure Finish

  • Natural for Stainless Steel
  • Zinc-Plated for Carbon Steel

Enclosure, Body Material

  • 316 Stainless Steel
  • Carbon Steel
  • Hastelloy C
  • Monel 400

Gland Packing Material

  • Graphoil (Temperatures Above 180° C (356° F))
  • PTFE

NPT Inlet

  • 1/2” NPT Female
  • 1/2” NPT Male

NPT Outlet

  • 1/2” NPT Female
  • 1/2” NPT Male

Packing Material

  • Grafoil
  • Teflon

Pressure Range

  • psi: 0 to 6,000 (kPa: 0 to 41,370, bar: 0 to 413.7)

Proof Pressure

  • Test Pressure - psi: 580.2 (kPa: 4,000, bar: 40) at 25° C (77° F) Room Temperature for Pneumatic (Seat)
  • Test Pressure - psi: 6,019 (kPa: 41,500, bar: 415) at 25° C (77° F) Room Temperature for Hydrostatic (Seat)
  • Test Pressure - psi: 8,992 (kPa: 62,000, bar: 620) at 25° C (77° F) Room Temperature for Hydrostatic (Body)

Valves

  • Two
