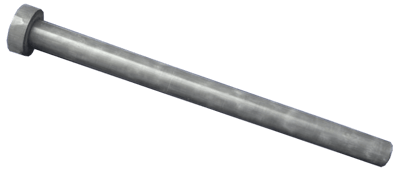

PT1 Protection Tube

Brand: Aircom Instrumentation Ltd
Connection Head: General purpose connection for non-hazardous locations.

Element: ANSI Calibration type R, S for service to 1,482° C. ANSI Calibration type B (non ANSI WR, W3, W5) for service to 1,650° C.

Internal Protection Tube: Alumina (99.8% Al2O3) 11/16" O.D. x 7/16" I.D.

External Protection Tube: Silicon Carbide (SiC) 1-3/4" O.D. x 1" I.D, 1,650° C maximum temperature.
Connection Head: General purpose connection for non-hazardous locations.

Element: ANSI Calibration type R, S for service to 1,482° C. ANSI Calibration type B (non ANSI WR, W3, W5) for service to 1,650° C.

Internal Protection Tube: Alumina (99.8% Al2O3) 11/16" O.D. x 7/16" I.D.

External Protection Tube: Silicon Carbide (SiC) 1-3/4" O.D. x 1" I.D, 1,650° C maximum temperature.

Specifications

Gasket Material

  • Fiber

Length

  • 12” (304.8 mm)
  • 16” (406.4 mm)
  • 18” (457.2 mm)
  • 24” (609.6 mm)
  • 30” (762 mm)
  • 36” (91.4 cm)
  • 42” (1066.8 mm)
  • 48” (121 cm)

Materials of Construction

  • Aluminum - Internal Protection Tube
  • Silicon Carbide - External Protection Tube

Temperature Range

  • 1,650° C (3,002° F) - Max.

Tube Connection

  • 11/16” O.D. x 7/16” I.D. - Internal Protection Tube
  • 1-3/4” O.D. x 7/16” I.D. - External Protection Tube
