Description

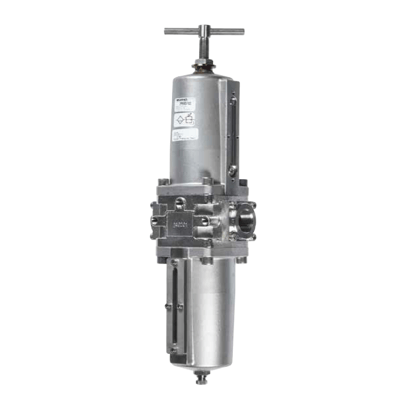

A 316L stainless steel combined unit for filtration and regulation of compressed air and gases for the actuation industries.
Features- Specifically Designed for Severe Environments
- 40 micron Element as Standard, 5 micron option available
- Ambient Temperature Range -20° to 800° C (-4° to 176° F) Low Temperature option available
- Non or Self-Relieving
- 316L Stainless Steel Construction
- Large Flow Characteristics
- Bowl Capacity Window
Configure
Specifications
Specifications
Brand
Accessories
- Mounting Brackets
- Stainless Steel Pressure Gauge
Ambient Temperature Range
- -20° to 80° C (-4° to 176° F)
Approvals & Certifications
- ATEX
- CE
- EAC
Bowl
- 260 ml (15.87 in³)
Element
- 5 or 40 micron Sintered Polypropylene
Enclosure, Body Material
- 316L Stainless Steel
- Nylon (Auto-Drain Version)
- Polyoxymethylene (Auto-Drain Version)
- Rubber (Auto-Drain Version)
Flow Capacity
- 274 scfm (462 m³/hour)
- 6.5 Cv (Manual Drain & Auto Drain)
- 8.8 Cv (Manual Drain & Auto Drain)
Gauge Connection
- 1/8" NPT
Media
- Air
- Inert Gas
- Sweet Natural Gas
NPT Connection
- 1" NPT Female
- 3/4" NPT Female
Pressure Range
- bar: 0.03 to 10
- bar: 0.5 to 10
- kPa: 3 to 1,000
Relief
- Non-Relieving
- Self-Relieving
Seat / Seal Material
- EPDM
- Fluoroelastomer
Supply Pressure - Maximum
- bar: 20
- kPa: 2,000
- psi: 290
Supply Pressure Effect
- At 7 bar (102 psi) Supply Pressure, 6 bar (87 psi) secondary Pressure, 1 bar (14.5 psi) Pressure Drop
Vent
- 1/8" NPT (Fitted with Breather)
