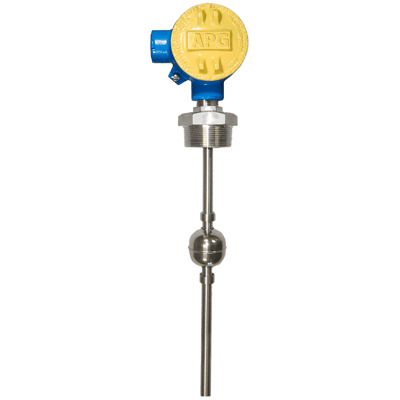

FLX Series Magnetic Float Level Sensor

Brand: Automation Products Group - APG
The FLX series are made specifically for point level detection of liquids in containers. These are listed by Canadian Standards Association for Class 1, Div. 1, Groups C & D use in North America. The sensor has been tested and meets both Canadian and USA standards for hazardous locations. Available in a wide variety of mounting types, the FLX series are appropriate for use in classified flammable liquids.
Features
  • cCSAus hazardous area rating
  • Long switch life
  • Durable floats
  • Shock resistant construction
  • Up to seven switch points
show more
The FLX series are made specifically for point level detection of liquids in containers. These are listed by Canadian Standards Association for Class 1, Div. 1, Groups C & D use in North America. The sensor has been tested and meets both Canadian and USA standards for hazardous locations. Available in a wide variety of mounting types, the FLX series are appropriate for use in classified flammable liquids.
Features
  • cCSAus hazardous area rating
  • Long switch life
  • Durable floats
  • Shock resistant construction
  • Up to seven switch points
1 model matching criteria
APG Magnet Level Sensor, Haz., 50VA, Plug Mounted, 1.5" NPT, 3 Float, 316L SST,124101-1513 show more
  • FLX: Hazardous Location Multi-Point Level Switch
  • 4: Plug mounted from outside of tank
  • T1.5: NPT plug (size: 1.5")
  • A: 50 VA Reed Switch
  • 3: Number of switch points/Floats
  • C: Float Type: 316L SS (1.63 in. diameter), 0.56 specific gravity
  • 60: Probe Length in inches.
  • Maximum Pressure: 180 psi, 12.4 bar
  • Media Temperature: -40°F to +185°F (-40°C to +85°C)
  • Ambient Temperature: -40°F to +104°F (-40°C to +40°C)
  • Materials of Construction
    • Housing: Die-Cast Aluminum, 1/2" NPT Cable Entry
    • Stem: 316L Stainless Steel
    • Float: 316 Stainless Steel, 42x35mm
  • Certification
    • Class I, Division 1, Groups C & D T3 (Ta 40°C) Ex d, IIB T3
    • Class I, Zone 1, AEx d, IIB T3 (Ta 40°C)
    • Class I, Division 2, Groups C & D T3 (Ta 85°C)
3 - 5 weeks
Non-Cancellable / Non-Refundable
$1,706.22USD

Specifications

Approvals & Certifications

  • CSA Class I, Div. 1, Groups C, D

Cable Entry

  • 3/4” NPT

Electrical Rating

  • 0.5 A AC
  • 180 VA
  • 50 VA

Environmental Protection

  • IP65
  • NEMA 4
  • NEMA 7

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - DIN 10K
  • 2” (DN 50) - JIS 10K

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#

NPT Connection

  • 1-1/2” NPT Male
  • 2” NPT Male
  • 2-1/2” NPT Male
  • 3” NPT Male

Operating Temperature - Electronics

  • -10° to 100° C (14° to 212° F)

Operating Voltages

  • 220 Vac

Sensor, Probe Style

  • Float

Switch Type

  • SPST

Tri-Clamp Connection

  • 2” 3-A Sanitary Ferrule

Wetted Materials

  • 316 Stainless Steel
