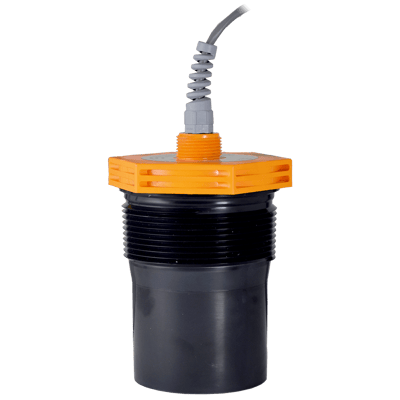

DST Ultrasonic Level Sensor

Brand: Automation Products Group - APG
The DST Series Ultrasonic Sensors are designed to be used in conjunction with the DCR controllers to give you a simplified, stand-alone system. The transmit and receive circuit is built into the sensor and digitally communicates the detected distance to the DCR controller. This allows the sensor to be separated from the DCR controller by up to 2000 feet with no signal loss.

With several sensors to choose from, there are plenty of options for your application needs. For use with DCR Controllers.
Features
  • AutoSense software provides hassle-free setup
  • Internal temperature compensation
  • Controller and sensor can be separated up to 2,000 ft (650 m)



The DST Series Ultrasonic Sensors are designed to be used in conjunction with the DCR controllers to give you a simplified, stand-alone system. The transmit and receive circuit is built into the sensor and digitally communicates the detected distance to the DCR controller. This allows the sensor to be separated from the DCR controller by up to 2000 feet with no signal loss.

With several sensors to choose from, there are plenty of options for your application needs. For use with DCR Controllers.
Features
  • AutoSense software provides hassle-free setup
  • Internal temperature compensation
  • Controller and sensor can be separated up to 2,000 ft (650 m)



Models matching criteria: 1
APG Ultrasonic Level Controller, 4-Relays, 4-20 mA, (1) Dry Contact view more
For use with DST Ultrasonic Level Sensors
  • Connectivity:  Internet: RST-5002
  • Programming: Programmable Keypad
  • Output
    • (4) Relays
    • 4-20 mA
  • Inputs
    • MNU/DST Sensor
    • 4-20 mA
    • (1) Dry Contact
  • Electrical Connection: Terminal Strip
  • Temperature Range
    • -22ºF to +140ºF (-30ºC to +60ºC)
  • Materials of Construction
    • Housing: Polycarbonate
  • Certification: NEMA 4X, IP66



2 In Stock
$777.08 USD
Non-Cancellable / Non-Refundable

Specifications

Accuracy

  • ± 0.25 % of Detected Range

Cable Length

  • Standard Cable Length: 10 feet (3 metres)

Communication

  • Modbus

Distance

  • Distance between Controller & Sensor: Max.

Electrical Connectors

  • 2-Conductor Shielded Cable
  • M12

Enclosure - Body Material

  • PC/PET
  • PVC
  • Stainless Steel

Environmental Protection

  • IP65
  • NEMA 12
  • NEMA 6P

Materials of Construction

  • Transducer: Ceramic

NPT Connection

  • 1” NPT Male
  • 2” NPT Male
  • 3” NPT Male

Operating Temperature

  • -30° to 60° C (-22° to 140° F)

Output Format

  • DCR Controller

Sensing Range

  • Model 1001: 0.6 to 35 feet (0.183 to 10.67 metres)
  • Model 1002: 1.5 to 35 feet (0.46 to 10.67 metres)
  • Model 3431: 1.25 to 50 feet (0.38 to 15.24 metres)
  • Model 5111: 4” to 72” (0.1 to 1.83 metres)
  • Model 9421: 0.5 to 35 feet (0.15 to 10.67 metres)
  • Model: 2421: 1 to 25 feet (0.3 to 7.62 metres)
