Images are representations only.

Junction Box

Brand: Turck, Inc
Features
  • DIN Rail Mounting or Passive Multiport Box
  • Ports
    • 4 Ports
    • 6 Ports
    • 8 Ports
    • 12 Ports
  • Short Circuit Protection
  • Housing Materials
    • Anodized Aluminum
    • Fiberglass
  • FISCO/ENTITY Field Device Available
  • Connections
    • Clamp Device Ports
    • minifast Ports
    • eurofast Ports
show more
Features
  • DIN Rail Mounting or Passive Multiport Box
  • Ports
    • 4 Ports
    • 6 Ports
    • 8 Ports
    • 12 Ports
  • Short Circuit Protection
  • Housing Materials
    • Anodized Aluminum
    • Fiberglass
  • FISCO/ENTITY Field Device Available
  • Connections
    • Clamp Device Ports
    • minifast Ports
    • eurofast Ports
3 models matching criteria

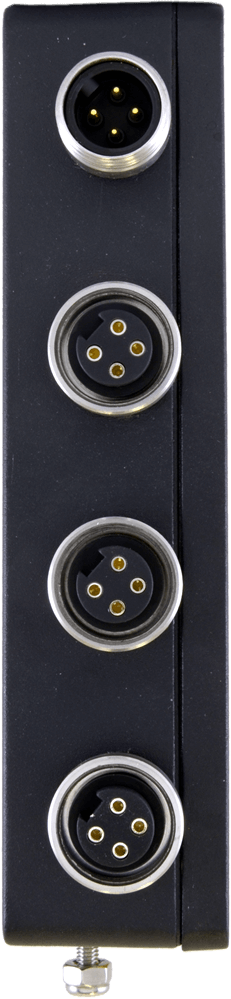

TURCK multiBox eurofast Metal Junction Box with Integ. HR Cable, 0.8m, 4-Port, SST, NCNR
16 In Stock
$373.26USD
TURCK Profibus-PA Multiport Junction Block (Brick), Passive, 8-Port, Short Circuit Protection, NCNR
1 In Stock
$639.35USD
TURCK multiBox minifast Metal Junc Box, 8-Port, 19-Pin multifast, SST, Cmn Grd & Shield, CSA, NCNR show more
  • Housing Material: Die-Cast Aluminum Alloy
  • Housing Finish/Color: Powder Coat/Black
  • Receptacle Housing Material/Finish: Stainless Steel/Passivated
  • Contact Carriers/Color: TPU/Black (J1-J8), Yellow (P1)
  • Contact Material/Plating: Brass/Gold
  • Operating Voltage: 250 VAC / 300 VDC
  • Operating Current: 2.0 Amps per Port, 8.0 Amps Total
  • Protection Class to DIN 40050: IP67 - only when all receptacles are covered with plugs or connected
  • Operating Temperature
    • -40C to +80°C
    • -40°F to +176°F
5 - 7 weeks
Non-Cancellable / Non-Refundable
$373.26USD

Specifications

Brand

Approvals & Certifications

  • FISCO/ENTITY

Circuit Protection

  • None
  • Short Circuit Protection - 30, 35, 45, or 60 mA
  • Short Circuit Protection - 55 mA

Communication

  • FOUNDATION Fieldbus
  • PROFIBUS PA

Connection Material

  • Nickel-Plated Brass Coupling Nut
  • Stainless Steel Coupling Nut
  • TPU (Polyurethane) Contact Carrier

Connection Style

  • Clamp Device
  • eurofast
  • minifast

Diagnostics

  • LED: Green = Power On, Red = Shorted

Electrical Contacts

  • Gold-Plated Brass

Enclosure, Body Material

  • Aluminum, Anodized
  • Fiberglass

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Mounting

  • DIN Rail Mounting
  • None

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Operating Voltages

  • 250 Vac or Vdc
  • 300 V
  • 9-32 Vdc

Port

  • 4-Ports
  • 6-Port
  • 8-Ports
