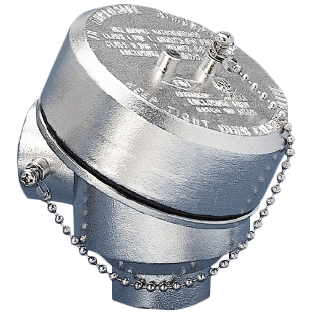

Model 1080 Stainless Steel Thermocouple Head

Brand: International Metal Engineering (IME)
IME Model 1080 Series Stainless Steel Thermocouple Heads are designed specifically for Explosion-Proof applications and constructed out of SS316 Stainless Steel to withstand applications where aggressive atmospheres prevail. This housing accommodates a terminal block or head mounted transmitter 50 mm (2.0") in diameter that can be mounted using M4 screws as indicated in the attached drawing.
IME Model 1080 Series Stainless Steel Thermocouple Heads are designed specifically for Explosion-Proof applications and constructed out of SS316 Stainless Steel to withstand applications where aggressive atmospheres prevail. This housing accommodates a terminal block or head mounted transmitter 50 mm (2.0") in diameter that can be mounted using M4 screws as indicated in the attached drawing.
Close

Displaying prices & availability for Ohio, United States 43201 in USD. Change location or currency.

Featured
  • Featured
  • Quantity In Stock
  • Price
  • SKU / Model Number
Models matching criteria: 3
1080AE-01
1080AE-01
IME Model 1080 Connection Head, Explosion-Proof, Aluminum, 1/2" NPT, FM/CSA, Teflon Grey Coated view more
  • Conduit Connection: 3/4" NPT
  • Instrument Connection: 1/2" NPT
  • Housing Material: Aluminum
  • Environmental Rating: NEMA 4, IP66
  • FM/CSA Explosion Proof
    • Class I, Division I; Groups B,C,D
    • Class II, III, Division I; Groups E,F,G
Out of Stock
$183.48 USD
1080SM-01
IME Model 1080 Connection Head, Explosion-Proof, 316 SST, 3/4" NPT, 1/2" NPT, FM/CSA, ATEX & IECex view more
  • Conduit Connection: 3/4" NPT
  • Instrument Connection: 1/2" NPT
  • Housing Material: 316 Stainless Steel
  • Environmental Rating: NEMA 4X, IP66/68
  • O-Ring: Buna "N"
  • ATEX & IECEx
  • FM/CSA Explosion Proof
    • Class I, Division I; Groups B,C,D
    • Class II, III, Division I; Groups E,F,G
2 - 4 weeks
$189.33 USD
1080SE-01
IME Model 1080 Connection Head, Explosion-Proof, 316 SST, 3/4" NPT, 1/2" NPT, FM/CSA view more
  • Conduit Connection: 3/4" NPT
  • Instrument Connection: 1/2" NPT
  • Housing Material: 316 Stainless Steel
  • Environmental Rating: NEMA 4X
  • FM/CSA Explosion Proof
    • Class I, Division I; Groups B,C,D
    • Class II, III, Division I; Groups E,F,G
Out of Stock
$192.98 USD
Close

Specifications

Brand

Approvals & Certifications

  • CSA - Class I, Div. 1 Groups B, C, D, Class II, Div. 1 Groups E, F, G. NEMA 4X.
  • Ex - ATEX II 2 GD. Ex d IIC Gb Ta = -40° to 85° C. Ex Tb IIIC Db IP68
  • FM - Class I, Div. 1 Groups B, C, D, Class II, Div. 1 Groups E, F, G. NEMA 4X, IP66.
  • IECEx - Ex d IIC Gb Ta = -40° to 85° C. Ex Tb IIIC Db IP68.

BSP Connection

  • 1/2" BSP Female

Enclosure Finish

  • Electro-Polished

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X

Metric Connection

  • M20 x 1.5 Female

NPT Connection

  • 1/2" NPT Female
  • 3/4" NPT Female

O-Ring Material

  • Buna-N
