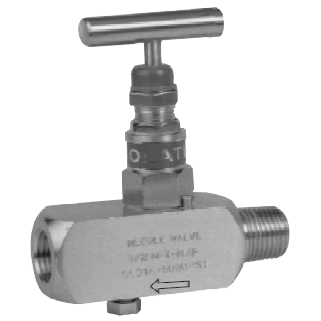

Model 322GV 2-Valve Manifold

Brand: International Metal Engineering (IME)
The Model 322GV gauge valve is simple and economical way to mount a pressure gauge or switch in the field and yet provide the facilities to easy removal and replacement of the device. A 1/4" NPT drain valve is supplied as standard. This design is suitable for applications up to psi: 6,000(kPa: 41,369, bar: 420).
The Model 322GV gauge valve is simple and economical way to mount a pressure gauge or switch in the field and yet provide the facilities to easy removal and replacement of the device. A 1/4" NPT drain valve is supplied as standard. This design is suitable for applications up to psi: 6,000(kPa: 41,369, bar: 420).
Close

Specifications

Brand

Drain, Vent Valves & Plug

  • 1/4" NPT

Enclosure Finish

  • Natural for Stainless Steel
  • Zinc-Plated for Carbon Steel

Enclosure, Body Material

  • 316 Stainless Steel
  • Carbon Steel
  • Hastelloy C
  • Monel 400

Gland Packing Material

  • Graphoil (Temperatures Above 180° C (356° F))
  • PTFE

NPT Inlet

  • 1/2" NPT Female
  • 1/2" NPT Male

NPT Outlet

  • 1/2" NPT Female
  • 1/2" NPT Male

Packing Material

  • Grafoil
  • Teflon

Pressure Range

  • psi: 0 to 6,000 (kPa: 0 to 41,370, bar: 0 to 413.7)

Proof Pressure

  • Test Pressure - psi: 580.2 (kPa: 4,000, bar: 40) at 25° C (77° F) Room Temperature for Pneumatic (Seat)
  • Test Pressure - psi: 6,019 (kPa: 41,500, bar: 415) at 25° C (77° F) Room Temperature for Hydrostatic (Seat)
  • Test Pressure - psi: 8,992 (kPa: 62,000, bar: 620) at 25° C (77° F) Room Temperature for Hydrostatic (Body)

Valves

  • Two
