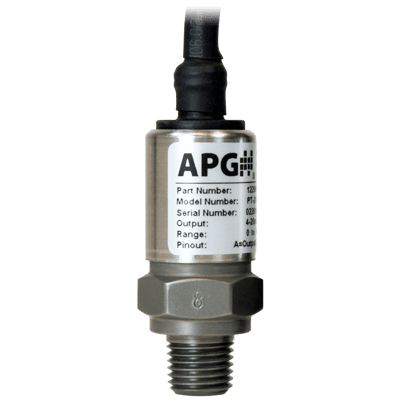

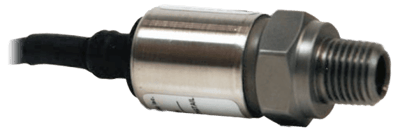

PT-200 Industrial Pressure Transmitter

Brand: Automation Products Group - APG
Series PT-200 0.5% Industrial Pressure Transmitters are rugged, general-purpose sensors that offer reliable and accurate measurements under harsh conditions. The sensor fitting is machined from a solid piece of 17-4PH SS to provide stable operation when subjected to shock and vibration. PT-200s also incorporate digital compensation and temperature correction for high accuracy and stability.
Features

  • Cost effective
  • High overpressure capability
  • Single piece stainless steel process fitting and sensor
  • Choice of three common electrical connections



show more
Series PT-200 0.5% Industrial Pressure Transmitters are rugged, general-purpose sensors that offer reliable and accurate measurements under harsh conditions. The sensor fitting is machined from a solid piece of 17-4PH SS to provide stable operation when subjected to shock and vibration. PT-200s also incorporate digital compensation and temperature correction for high accuracy and stability.
Features

  • Cost effective
  • High overpressure capability
  • Single piece stainless steel process fitting and sensor
  • Choice of three common electrical connections



Specifications

Accuracy

  • 0.5 % (BSFL)

Burst Pressure

  • 3.5 x Full Scale

Compensated Temperature

  • 0° to 85°C, 32° to 185°F

Current

  • Current Draw: < 30 mA

Electrical Connectors

  • Cable: 2 feet, 0.6 Meter
  • M12 Connector
  • Packard

Environmental Protection

  • IP65

Loop Resistance

  • < 100 ohms

NPT Connection

  • 1/4”-18 NPT Male

Operating Temperature

  • -10° to 100°C, 14° to 212°F

Output

  • 4-20 mA

Overpressure & Static Pressure Limits

  • Overpressure: 2 x Full Scale

Pressure Range

  • bar: 0 - 689.5
  • kPa: 0 - 68,950
  • psig: 0 - 10,000

Pressure Type

  • Gauge

Sensor, Probe Material

  • Stainless Steel

Span & Zero Effect

  • Stability (Thermal Shift) Span: ± 0.02 % of Full Scale Output/°C (± 0.04 % of Full Scale Output/°F)
  • Stability (Thermal Shift) Zero: ± 0.01 % of Full Scale Output/°C (± 0.02 % of Full Scale Output/°F)

Stability

  • Long Term: < ± 0.5 % of Full Scale Output/Year

Storage Temperature

  • -20° to 125°C, -4° to 257°F

Supply Voltage

  • 9-32 Vdc

Wetted Materials

  • 630 Stainless Steel (17-4 PH)
