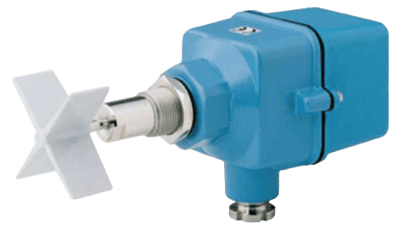

PWS Rotating Paddle Level Switch

Brand: Automation Products Group - APG
The PWS Rotating Paddle Wheel Level Sensor is ideal for grain processing machines, plastic molding or injection machines. The PWS is compact and designed to provide reliable service. The paddle wheel sensor offers four different torque settings for just the right sensitivity.
Features
  • Miniature size
  • Simple torque adjustment
  • Reliable design
  • Low cost



The PWS Rotating Paddle Wheel Level Sensor is ideal for grain processing machines, plastic molding or injection machines. The PWS is compact and designed to provide reliable service. The paddle wheel sensor offers four different torque settings for just the right sensitivity.
Features
  • Miniature size
  • Simple torque adjustment
  • Reliable design
  • Low cost



Specifications

Approvals & Certifications

  • CE

Enclosure, Body Material

  • Die Cast Aluminum
  • Polycarbonate/ABS

Environmental Protection

  • IP40
  • IP65

Mounting

  • Galvanized Brass

Operating Temperature - Electronics

  • -30° to 120° C, 14° to 248° F

Operating Voltages

  • 240 V 3 A AC, 30 V 3 A DC (Resistive)

Output

  • 4 Torque Settings

Sensor, Probe Style

  • 10.2" - 9.3” Shaft Length, 260mm - 1,000 mm

Spindle Material

  • 304 Stainless Steel
