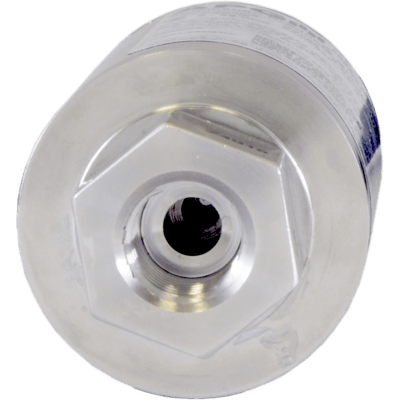

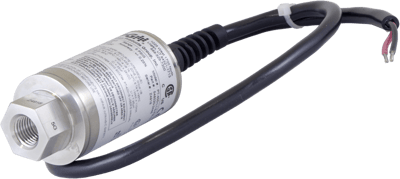

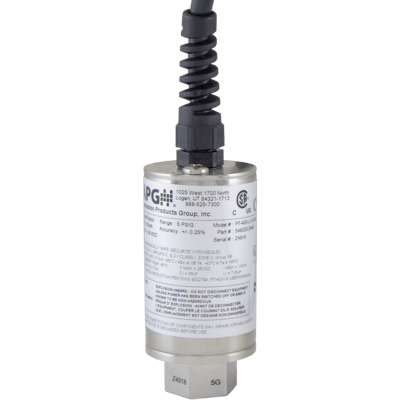

Images are representations only.

PT-400 Pressure Transducer

Brand: Automation Products Group - APG
The PT-400 offers high accuracy and reliability over a wide range of pressures. The small size, integrated electronics, wide operating temperature range, ATEX and IECEx approval, and durability, make the PT-400 the perfect instrument for static and dynamic pressure measurements with an amplified output signal.
Features
  • Available ranges from 0 - 10,000 psi
  • Standard outputs: 4-20 mA, 0-5 Vdc, RS-485
  • High overpressure capability
  • Zero and Span adjustments
  • cCSAus hazardous location approved
  • ATEX Approved
  • IECEx Approved
show more
The PT-400 offers high accuracy and reliability over a wide range of pressures. The small size, integrated electronics, wide operating temperature range, ATEX and IECEx approval, and durability, make the PT-400 the perfect instrument for static and dynamic pressure measurements with an amplified output signal.
Features
  • Available ranges from 0 - 10,000 psi
  • Standard outputs: 4-20 mA, 0-5 Vdc, RS-485
  • High overpressure capability
  • Zero and Span adjustments
  • cCSAus hazardous location approved
  • ATEX Approved
  • IECEx Approved
6 models matching criteria
APG PT-400 Pressure Sensor, 0-200 psi, Gauge, 1/2" Elect.6" Wires, 1/4" MNPT, +/-0.25%, 316L SST show more
  • PT-400: Intrinsically Safe, Heavy Duty Pressure Transducer for harsh Environments
  • L1: Operation - 4-20 mA Output
  • 200 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E36: Electrical Connection - 1/2" MNPT, 6" Wires
  • 0: Cable Length in Feet
  • P0: Process Connection - 1/4" MNPT
  • N0: Accuracy - ±0.25%
  • M1: Wetted Materials - 316L Stainless Steel
  • S10: Compensated Temperature Range:  -10°C to +70°C (14°F to +158°F)
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40º to 85ºC
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20mA
    • - IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • - Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
    • - IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
    • - Class I, Zone 0; AEx ia IIB T4
    • ATEX
    • 4-20 mA
    • - Ex II 1G Ex ia IIB T4 Ga
    •  IECEx
    • 4-20 mA
    • - Ex ia IIB T4 Ga
    [/li]
14 In Stock
Non-Cancellable / Non-Refundable
$539.50USD
APG PT-400 Pressure Sensor, 0-100 psi, Gauge, 1/2"5-ft, 1/4" MNPT, +/-0.25%, 316L SST, HighVibration show more
  • PT-400: Intrinsically Safe, Heavy Duty Pressure Transducer for harsh Environments
  • L1: Operation - 4-20 mA Output
  • 100 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E36: Electrical Connection - 1/2" MNPT with 6" flying leads, long can
  • P0: Process Connection - 1/4-18 MNPT
  • N0: Accuracy - ±0.25%
  • M1: Wetted Materials - 316L SS
  • S10: Compensated Temperature Range:  -10°C to +70°C (14°F to +158°F)
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40º to 85ºC
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20mA
    • - IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • - Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
    • - IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
    • - Class I, Zone 0; AEx ia IIB T4
    • ATEX
    • 4-20 mA
    • - Ex II 1G Ex ia IIB T4 Ga
    •  IECEx
    • 4-20 mA
    • - Ex ia IIB T4 Ga
10 In Stock
Non-Cancellable / Non-Refundable
$539.50USD
APG PT-400 Pressure Sensor, 0-50psi, Gauge, Elect.1/2" MNPT, 5' Cable, Process 1/4" MNPT 316LSS NCNR show more
  • PT-400: Intrinsically Safe, Heavy Duty Pressure Transducer for harsh Environments
  • L1: Operation - 4-20 mA Output
  • 50 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E19: Electrical Connection - 1/2" MNPT with cable, short can
  • 5: Cable Length in Feet
  • P0: Process Connection - 1/4" MNPT
  • N0: Accuracy - ±0.25%
  • M1: Wetted Materials - 316L SS
  • S10: Compensated Temperature Range:  -10°C to +70°C (14°F to +158°F)
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40º to 85ºC
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20mA
    • - IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • - Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
    • - IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
    • - Class I, Zone 0; AEx ia IIB T4
    • ATEX
    • 4-20 mA
    • - Ex II 1G Ex ia IIB T4 Ga
    •  IECEx
    • 4-20 mA
    • - Ex ia IIB T4 Ga
  • [/li]
1 In Stock
Non-Cancellable / Non-Refundable
$571.36USD
APG PT-400 Pressure Sensor, 0-5 psig, 4-20 mA, Pigtail, 1/4" MNPT, +/-0.25%, 316L SST show more
  • PT-400: Intrinsically Safe, Heavy Duty Pressure Transducer for harsh Environments
    • Can Size: 2.5"
  • L1: Operation - 4-20 mA Output
  • 5 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E5: Electrical Connection - Pigtail with cable
  • 10: Length of Cable in Feet
  • P0: Process Connection - 1/4" MNPT
  • N0: Accuracy - ±0.25%
  • M1: Wetted Materials - 316L SS
  • S11: No Temperature Specification
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40º to 85ºC
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20mA
    • - IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • - Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
    • - IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
    • - Class I, Zone 0; AEx ia IIB T4
    • ATEX
    • 4-20 mA
    • - Ex II 1G Ex ia IIB T4 Ga
    •  IECEx
    • 4-20 mA
    • - Ex ia IIB T4 Ga
  • [/li]
3 - 4 weeks
Non-Cancellable / Non-Refundable
$616.26USD
APG PT-400 Pressure Sensor, 1 psi, Gage, 1/2" NPT, 10ft, 1/4" MNPT, +/-0.25%, 316L SS show more
  • PT-400: Intrinsically Safe, Heavy Duty Pressure Transducer for harsh Environments
    • Can Size: 2.5"
  • L1: Operation - 4-20 mA Output
  • 1 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E5: Electrical Connection - Pigtail with cable
  • 10: Cable Length in Feet
  • P0: Process Connection - 1/4-18" MNPT
  • N0: Accuracy - ±0.25%
  • M1: Wetted Materials - 316L Stainless Steel
  • S11: No Temperature Specification
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40º to 85ºC
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20mA
    • - IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • - Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
    • - IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
    • - Class I, Zone 0; AEx ia IIB T4
    • ATEX
    • 4-20 mA
    • - Ex II 1G Ex ia IIB T4 Ga
    •  IECEx
    • 4-20 mA
    • - Ex ia IIB T4 Ga
  • [/li]
3 - 4 weeks
Non-Cancellable / Non-Refundable
$616.26USD
APG PT-400 Pressure Sensor, 0-50psi, Gauge, Pigtail with 10' Cable, 316L SST show more
  • PT-400: Intrinsically Safe, Heavy Duty Pressure Transducer for harsh Environments
  • L1: Operation - 4-20 mA Output
  • 50 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E5: Electrical Connection - Pigtail with cable
  • 10: Length of Cable in Feet
  • P0: Process Connection - 1/4" MNPT
  • N0: Accuracy - ±0.25%
  • M1: Wetted Materials - 316L SS
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40º to 85ºC
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20mA
    • - IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • - Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
    • - IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
    • - Class I, Zone 0; AEx ia IIB T4
    • ATEX
    • 4-20 mA
    • - Ex II 1G Ex ia IIB T4 Ga
    •  IECEx
    • 4-20 mA
    • - Ex ia IIB T4 Ga
3 - 4 weeks
Non-Cancellable / Non-Refundable
$679.99USD

Specifications

Accuracy

  • ± 0.25 % BFSL

Approvals & Certifications

  • ATEX
  • CSA - Class I, Div. 1, Groups C, D & Class I, Div. 2, Groups C, D
  • IEC Ex

Burst Pressure

  • 3 times Full Scale

Compensated Temperature

  • -17° to 54° C (0° to 130° F)

Electrical Connectors

  • 1/2” NPT with 6” Flying Leads
  • 4-Pin Bayonet PT1H-8-4P or Equivalent
  • 4-Pin M12 Micro Connector
  • 6-Pin Bayonet PT02E-10-6P or Equivalent
  • DIN 43650
  • Pigtail with Cable

Input Power

  • 9-28 Vdc

NPT Connection

  • 1/2” NPT Male
  • 1/4” NPT Female
  • 1/4” NPT Male

Operating Temperature

  • -40° to 65.5° C (-40° to 150° F)

Output

  • 0-10 Vdc
  • 0-5 Vdc
  • 4-20 mA

Overpressure & Static Pressure Limits

  • 2 x Full Scale

Pressure Range

  • bar: 0 to 689
  • kPa: 0 to 68,947
  • psig: 0 to 10,000

Reverse Polarity Protection

  • Protected Against Reverse Polarity, Surge, Per IEC 61000-4-5

Stability

  • ≤ 0.5 % of Full Scale Output/Year

Storage Temperature

  • -40° to 82° C (-40° to 180° F)

Tri-Clamp Connection

  • 1-1/2” Tri-Clover with 1/2” Diaphragm

UNF/UNC Connection

  • 9/16”-18 UNF Female High Pressure SnoTrik
  • 9/16”-18 UNF Male High Pressure SnoTrik

Wetted Materials

  • 316L Stainless Steel
  • 630 Stainless Steel
