Description

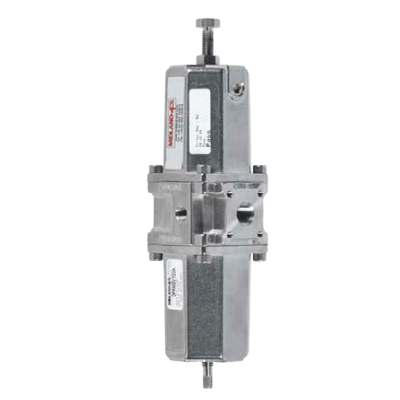

A 316L stainless steel combined unit for filtration and regulation of compressed air and gases for the actuation industries.
Features- Specifically designed for severe environments
- Non or self-relieving
- 40 micron element stainless steel 316 as standard, 5 micron option available
- Ambient temperature range -20° to 80° C (-4° to 176° F) with low temperature option available
- 316L stainless steel construction
- Regulated pressure range from 7.25 to 174 psi (50 to 1,200 kPa, 0.50 to 12.0 bar) depending on model selection
- Large flow characteristics
Configure
Specifications
Specifications
Brand
Accessories
- Hand Wheel
- Mounting Brackets
- Stainless Steel Pressure Gauge
Ambient Temperature Range
- -20° to 80° C (-4° to 176° F)
Approvals & Certifications
- ATEX
- CE
- EAC
Bowl
- 21 ml (1.28 in³)
Drain, Vent Position
- Automatic Drain
- Manual Drain
Element
- 5 or 40 micron 316 Stainless Steel
Enclosure, Body Material
- 316L Stainless Steel
Flow Capacity
- 1/2" & 3/4"- 212 scfm (360 m³/hour)
- 1/4"- 130 scfm (223.2 m³/hour)
- 2.4 Cv
- 4.4 Cv
- 5.0 Cv
Gauge Connection
- 1/4" NPT
- 1/8" NPT
Media
- Air
- Inert Gas
- Sour Natural Gas
- Sweet Natural Gas
NPT Connection
- 1/2" NPT Female
- 1/4" NPT Female
- 3/4" NPT Female
Pressure Range
- bar: 0.50 to 12
- kPa: 50 to 1,200
- psi: 7.2 to 174
Relief
- Non-Relieving
- Self-Relieving
Seat / Seal Material
- EPDM
- Fluoroelastomer
Supply Pressure - Maximum
- bar: 20
- kPa: 2,000
- psi: 290
Supply Pressure Effect
- At 6 bar (87 psi) Secondary Pressure, 1 bar (14.5 psi) Pressure Drop
Vent
- 1/8" NPT (Fitted with Breather)
