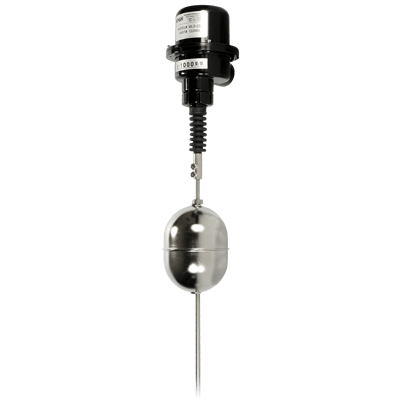

MLS Mechanical Float Level Sensor

Brand: Automation Products Group - APG
The MLS Mechanical Float Level Sensor provides highly accurate and repeatable level readings in a wide variety of liquid level measurement applications. The large, buoyant and robust float of the MLS allows it to be used in harsh applications where fouling or buildup might otherwise be of concern.
Features

  • Direct pump control
  • Adjustable On/Off switching levels
  • Simple installation
  • Field adjustable probe length



The MLS Mechanical Float Level Sensor provides highly accurate and repeatable level readings in a wide variety of liquid level measurement applications. The large, buoyant and robust float of the MLS allows it to be used in harsh applications where fouling or buildup might otherwise be of concern.
Features

  • Direct pump control
  • Adjustable On/Off switching levels
  • Simple installation
  • Field adjustable probe length



Specifications

BSP Connection

  • G 3/4” Female

Electrical Connectors

  • Cable

Enclosure, Body Material

  • 304 Stainless Steel Stem & Float
  • Neoprene Protective Bellows
  • Polycarbonate Housing

Environmental Protection

  • IP10
  • IP42
  • NEMA 1

Operating Temperature

  • 0° to 80° C (-32° to 176° F)

Output

  • 250 V 10 A AC, 250 V 0.4 A DC

Sensor, Probe Style

  • Float

Switch Type

  • SPDT
