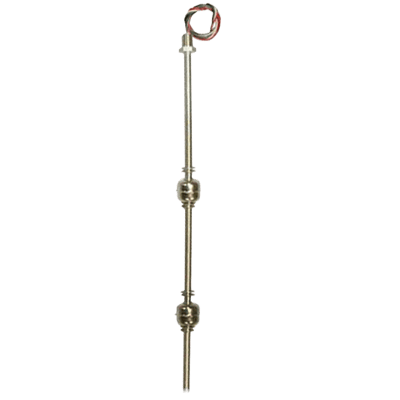

FLE Series Magnetic Float Level Sensor

Brand: Automation Products Group - APG
The FLE Series is physically smaller and has a maximum total length of 24" (610 mm). The FLE Series offers many of the same options as the FLR, but the FLE is designed for lighter duty, lower cost applications. It has limitations in current capacity of reed switches and the number of switch points is limited to three.
Features
  • Custom manufactured to user specifications
  • Switch points are field adjustable
  • Stem position adjustable (slide flange)
  • Reliable
  • Wide choice of materials
  • Long switch life
  • Durable floats
  • Heavy duty model available for shock resisitant construction in the metal floats
  • Economy model available for light duty applications



The FLE Series is physically smaller and has a maximum total length of 24" (610 mm). The FLE Series offers many of the same options as the FLR, but the FLE is designed for lighter duty, lower cost applications. It has limitations in current capacity of reed switches and the number of switch points is limited to three.
Features
  • Custom manufactured to user specifications
  • Switch points are field adjustable
  • Stem position adjustable (slide flange)
  • Reliable
  • Wide choice of materials
  • Long switch life
  • Durable floats
  • Heavy duty model available for shock resisitant construction in the metal floats
  • Economy model available for light duty applications



Specifications

Cable Entry

  • 3/4” NPT

Environmental Protection

  • Intrinsically Safe
  • IP43
  • IP65
  • NEMA 4
  • NEMA 7

Electrical Contacts

  • Normally Closed
  • Normally Open

Electrical Rating

  • 20 VA
  • 50 VA

Flange Size - 1” (DN 25)

  • 1” (DN 25) - JIS 10K

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - JIS 10K

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#

NPT Connection

  • 1” NPT Male
  • 1-1/2” NPT Male
  • 2” NPT Male
  • 2-1/2” NPT Male
  • 3” NPT Male
  • 4” NPT Male

Operating Temperature - Electronics

  • -10° to 100° C (14° to 212° F)

Operating Voltages

  • 220 Vac

Sensor, Probe Style

  • Float

Tri-Clamp Connection

  • 1-1/2” 3A Sanitary Ferrule
  • 2” 3-A Sanitary Ferrule
  • 2-1/2” 3-A Sanitary Ferrule
  • 3” 3-A Sanitary Ferrule
  • 4” 3-A Sanitary Ferrule

Wetted Materials

  • 316 Stainless Steel
