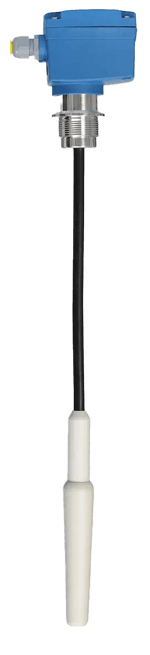

Capanivo® - CN 4050 Capacitive Sensor

Brand: UWT GmbH
Application Area

The capacitive point level sensor Capanivo® CN 4050 is used in storage and process vessels as a full detector in all bulk solids from a DK value of 1.6.

The measuring probe can be flexibly adjusted up to a length of 6000 mm and puts the switching point where the application needs it.

In addition, this probe extension with expanded cable is the basis for beneficial effects, if lateral forces act on the extension.
Features
  • Maintenance-free, very cost-effective level limit switch in many bulk materials
  • Probe extension is adjustable up to a length of 6000 mm
  • Plug and play level limit switch without calibration
Application Area

The capacitive point level sensor Capanivo® CN 4050 is used in storage and process vessels as a full detector in all bulk solids from a DK value of 1.6.

The measuring probe can be flexibly adjusted up to a length of 6000 mm and puts the switching point where the application needs it.

In addition, this probe extension with expanded cable is the basis for beneficial effects, if lateral forces act on the extension.
Features
  • Maintenance-free, very cost-effective level limit switch in many bulk materials
  • Probe extension is adjustable up to a length of 6000 mm
  • Plug and play level limit switch without calibration

Specifications

Measurement Pprinciple

  • Capacitive

Measuring Task

  • Point Level Measurement

Version

  • Cable Extension

Medium

  • Solids

Mounting Position

  • Top
  • On a Socket

Ambient Temperature

  • -20°C … +60°C (-4°F … +140°F)

Process Temperature

  • -30°C … +80°C (-22°F … +176°F)

Process Pressure

  • -1 bar … +6 bar (-14.5 psi … +87 psi)

Minimum Sensitivity

  • DK ≥ 1.6

Housing Type

  • Standard

Housing Material

  • Aluminum
  • Plastics (PA6)

Housing Protection Rating

  • IP66

Threaded Connection

  • ≥ G 1½"

Wetted Materials

  • Aluminum
  • PE
  • PPS
  • Stainless Steel 1.4305 (303)

Mechanical Load

  • 4 kN

Minimum Immersion Length

  • 210 mm (8.3")

Maximum Immersion Length

  • 3 m (9.99')

Power Supply

  • Universal Voltage (21...45 VDC / 21...230 VAC)
  • 20...40 VDC

Signal Output

  • Relay DPDT
  • Transistor PNP

Approvals

  • CE, ATEX, IEC-Ex, TR-CU

Explosion Protection

  • Dust Ignitionproof (Ex t)

Hygienic / Pharma

  • EG 1935/2004
  • FDA

User Interface

  • Jumper

Adjustment Possibility

  • Adjustable Sensitivity
  • Adjustable Output Delay
  • Switchable Logic (Fail Safe High - Fail Safe Low)
  • Sliding Sleeve for Variable Immersion Length

Applications

  • Chemicals
  • Power
  • Metal
  • Building, Cement & Quarry
  • Food & Beverage
  • Synthetics
