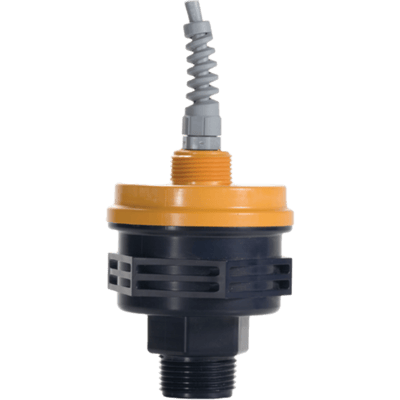

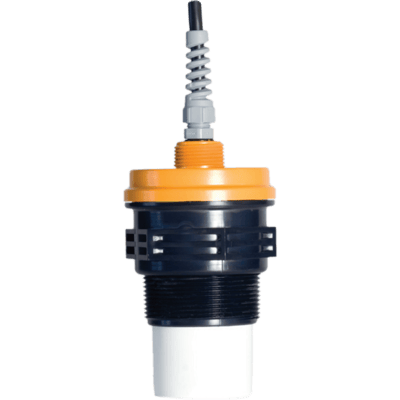

MNU Remote Monitoring Ultrasonic Level Sensor

Brand: Automation Products Group - APG
The MNU Series Sensors utilize standard Modbus RTU protocol (RS-485). The MNU is designed to work as a slave device. with the ability to measure volume and distance, the MNU is the ideal sensor for your application.
Features

  • Ranges from 4 inch to 40 feet
  • Self-contained Sensor
  • RS-485 Modbus RTU Interface
  • Measure Distance, Level, or Volume
  • Internal Temperature Compensation



The MNU Series Sensors utilize standard Modbus RTU protocol (RS-485). The MNU is designed to work as a slave device. with the ability to measure volume and distance, the MNU is the ideal sensor for your application.
Features

  • Ranges from 4 inch to 40 feet
  • Self-contained Sensor
  • RS-485 Modbus RTU Interface
  • Measure Distance, Level, or Volume
  • Internal Temperature Compensation



Close

Displaying prices & availability for Ohio, United States in USD. Change location or currency.

Models matching criteria: 1

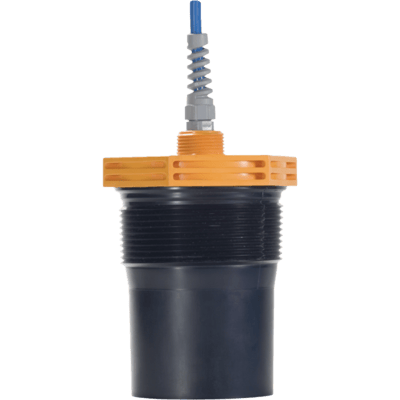

MNU-3434-C6
APG MNU Series Modbus Ultrasonic Level Sensor, External Programmer, 1.5 - 40-ft, 6-ft Cable view more
  • Operating Range
    • MNU-3434: 1.5 - 40 ft (0.46 - 12.19 m)
  • Accuracy: ±0.25% of Detect Range
  • Programming: Interface with RS-485, User Selected Units.
  • Output
    • Modbus RTU (RS-485)
  • Electrical Connection: 4 Conductor Shielded Cable, 6 ft
  • Temperature Range
    • -30º - +140ºF (-34º - +60ºC)
  • Materials of Construction
    • PC/PBT blend upper housing
    • Transducer Type: Ceramic, PVDF faced
  • Certification: NEMA 6P
Out of Stock
$872.32 USD
Close

Specifications

Brand

Accuracy

  • ± 0.25 % of Span

Communication

  • Modbus RTU (RS-485)

Electrical Connectors

  • 4-Conductor Twisted-Pair Cable
  • 4-Pin M12 Micro Connector

Enclosure, Body Material

  • PC/PBT Blend Upper Housing

Environmental Protection

  • IP67
  • NEMA 6P

NPT Connection

  • 1" NPT Male
  • 2" NPT Male
  • 3" NPT Male

Operating Temperature - Electronics

  • -34° to 60° C (-30° to 140° F)

Resolution

  • 0.1" (2.5 mm)

Response Time

  • Programmable

Sensing Range

  • 4" to 40 ft (0.10 to 12.19 m)
  • Feet: 0 to 10
  • Feet: 10 to 25
  • Feet: 25 to 35
  • Feet: 35 to 50
  • Meters: 0 to 3.05
  • Meters: 10.66 to 15.24
  • Meters: 3.05 to 7.62
  • Meters: 7.62 to 10.66

Sensor, Probe Style

  • Ultrasonic

Wetted Materials

  • Ceramic, PVDF Faced Transducer
  • PC/PBT Blend Upper Housing
