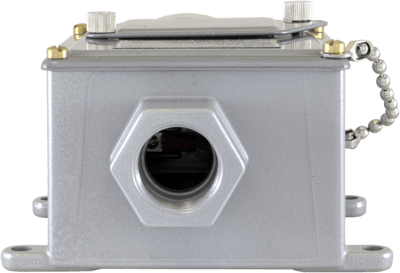

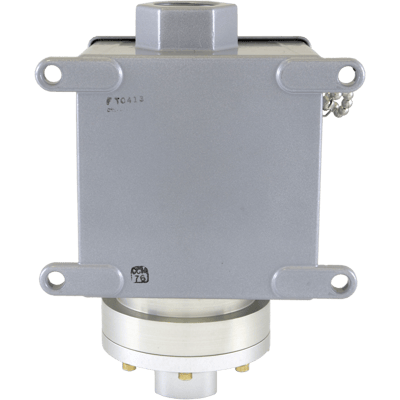

Images are representations only.

604V Series Pressure Switch

Brand: Custom Control Sensors, LLC
Does not ship to United States
Features
  • Adjustable Set Point Range
    • Increasing Vacuum: 3.5 to 28.5 Inches Hg, 89 to 724 mm Hg
    • Decreasing Vacuum: 1 to 26 Inches Hg, 25 to 660 mm Hg
  • Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
  • System Pressure (Maximum): 150 psig, 1034 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723 kPa, 17.2 bar
  • Wetted Materials
    • Pressure Port: 1/4" Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, General Purpose
show more
Features
  • Adjustable Set Point Range
    • Increasing Vacuum: 3.5 to 28.5 Inches Hg, 89 to 724 mm Hg
    • Decreasing Vacuum: 1 to 26 Inches Hg, 25 to 660 mm Hg
  • Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
  • System Pressure (Maximum): 150 psig, 1034 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723 kPa, 17.2 bar
  • Wetted Materials
    • Pressure Port: 1/4" Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, General Purpose
1 model matching criteria
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N show more
  • Adjustable Set Point Range - Vacuum
    • Increasing: 3.5 to 28.5 inches Hg, 89 to 724 mm Hg
    • Decreasing: 1 to 26 inches Hg, 25 to 660 mm Hg
  • Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
  • System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CRN, CE Mark, General Purpose
3 In Stock
$708.63USD

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • cUL
  • EMC
  • LVD
  • PED
  • RoHS
  • UL

Deadband, Approximate

  • Inches Hg: 2.5
  • mmHg: 64

Diaphragm Material

  • Polyimide
  • Stainless Steel

Electrical Connectors

  • Terminal Strip - Internal

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 DC, 0.2 A at 250 DC
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

NACE & NIST

  • NACE

NPT Connection

  • 1/4” NPT Female

O-Ring Material

  • Buna-N
  • Ethylene Propylene (EPR)
  • Viton

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

Process Connection Material

  • Aluminum

Proof Pressure

  • bar: 17.24
  • kPa: 1,724
  • psig: 250

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • Inches Hg: -1 to 26
  • mmHg: -25 to 660

Set Point - Increasing

  • Inches Hg: -3.5 to 28.5
  • mmHg: -89 to 724

Standard Features

  • Internal Case Ground
  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 10.3
  • kPa: 1,034
  • psig: 150
