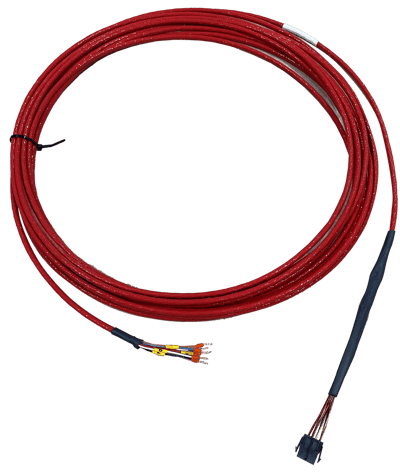

Cable Assembly to Connect Sensor to Remote Electronics Mounting Plate, High-Temp
Does not ship to OH, United States
Description
Cable Specification
- Instrument High-Temperature TFE Remote Cable Assembly for Kayden Sensor
Construction
- 6-Conductor, 20 AWG, 7 x 28 Strands
- Tinned Copper
- FEP Insulation
- Overall Beldfoil + Tinned Copper Braid (85%) Shield
- FEP Outer Jacket, CMP
Voltage Rating
- 300 Volts
Temperature Rating
- UL 150°C
Specifications
- CEC, cUL CMP
- Indoor - Plenum, Indoor
- Outdoor, Sunlight Resistance
- Oil Resistance
- NFPA 262
- UL 910 (Plenum)
- FT6
- Gas Resistant
Configure
Specifications
Specifications
Brand
Cable Make
- Beldon
- 6-Conductor x 20 AWG
- Beldfoil Shielded
Approvals & Certifications for Cable only
- CEC cUL Compliance - CMP
- NFPA 262, UL 910 (Plenum), FT6
Enviromental Suitability
- Indoor - Plenum
- Outdoor, Sunlight Resistance, Oil Resistance
Sustainability
- CA Prop 65
Outer Jacket
- FEP - Fluorinated Ethylene Propylene
- Nom. Diameter - 0.209 in (5.31 mm)
Shield Material
- Tape - Bi-Laminate (Alum+Poly) 100%
Conductors
- Qty 6
- 20 AWG
- Stranded 7x28
- TC Tinned Copper
Electrical Wire Spec
- 11.1 Ohm/1000 ft
- Capcitance - 26 pF/ft (85 pF/m)
- Max Current 2.7 Amps per Conductor at 25C
Voltage
- Max 300 V (CMP)
Temperature
- UL - 150° C
- -70° C to +200° C Operating
Connection
- Molex 8-Pin Female Plug Connector x Free Leads c/w Barrel Lugs
