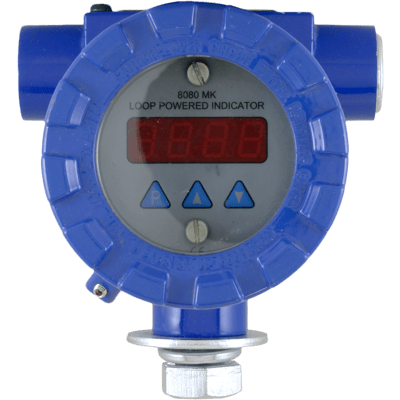

8080MK Model Loop-Powered Indicator

Brand: International Metal Engineering (IME)
  • Loop-Powered
  • 4-Digit LED Indicator
  • 2 Conduit Connections
    • 3/4" NPT
    • 1/2" NPT
    • M20 x 1.5P
  • 1 Instrument Connection
    • M16 x 2P
    • 1/2" NPT
  • Temperature Range: -50°C to +75°C (-58°F to +167°F)
  • Materials of Construction
    • Enclosure: Epoxy Coated Aluminum or 316 Stainless Steel
    • O-Rings: Buna-N
    • Mounting Bracket: 316 Stainless Steel
  • Environmental Rating: NEMA 4X, IP68
  • Approvals: FM, CSA, ATEX, IECEx Explosion Proof
  • Loop-Powered
  • 4-Digit LED Indicator
  • 2 Conduit Connections
    • 3/4" NPT
    • 1/2" NPT
    • M20 x 1.5P
  • 1 Instrument Connection
    • M16 x 2P
    • 1/2" NPT
  • Temperature Range: -50°C to +75°C (-58°F to +167°F)
  • Materials of Construction
    • Enclosure: Epoxy Coated Aluminum or 316 Stainless Steel
    • O-Rings: Buna-N
    • Mounting Bracket: 316 Stainless Steel
  • Environmental Rating: NEMA 4X, IP68
  • Approvals: FM, CSA, ATEX, IECEx Explosion Proof
Models matching criteria: 1
IME Model 8080 Process Indicator LED Display, Aluminum, 1/2" NPT, 4-20 mA, 2-Wire, 4 digit LED, CSA view more
  • IME Model 8080 Process Indicator
    • LED Display
    • Aluminum
    • 1/2" NPT
    • 4-20 mA
    • 2-Wire
    • 4 Digit LED
    • CSA
2 In Stock
$741.97 USD

Specifications

Accuracy

  • ± 0.5° C (± 0.9° F)

Alarm

  • 2 Sets SPDT, Rated 10 A at 250 Vac, 50/60 Hz
  • None

Approvals & Certifications

  • ATEX
  • CSA
  • FM
  • IEC Ex

Conduit Connection

  • 1/2” NPT
  • 3/4” NPT
  • M20 x 1.5

Digital Stability

  • 0.1 % of Calibrated Range ± 1-Digit over 6 Months

Display

  • 4-Digit LED

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum, Epoxy Coated

Environmental Protection

  • IP66
  • NEMA 4X / IP66

Input

  • 4-20 mA

Instrument Connection

  • 1/2” NPT
  • M16 x 2P

Mounting

  • 2” U-Bolt Fasteners for Pipe Mounting
  • 316 Stainless Steel Mounting Kit, for Wall or 2” Pipe
  • 316 Stainless Steel Wall Mounting Bracket

Response Time

  • Typically 20 to 75 milliseconds

Supply Voltage

  • Loop Powered

Temperature Range

  • -40° to 60° C (-40° to 140° F)
