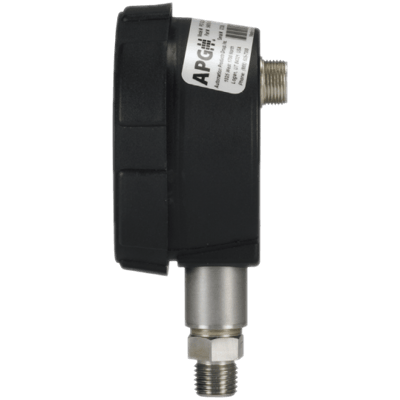

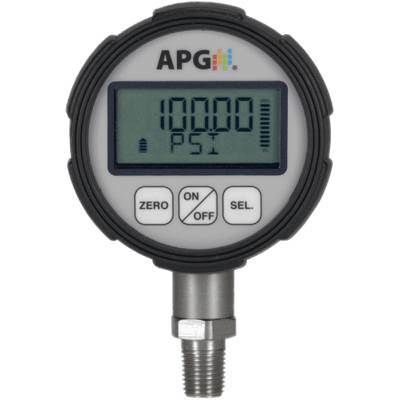

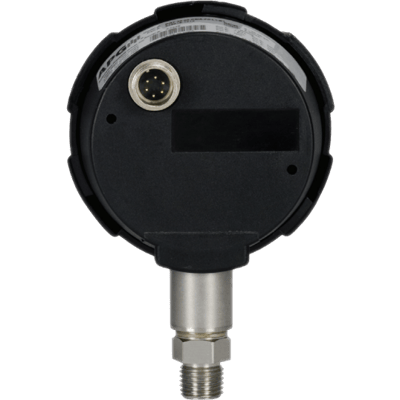

PG7 Digital Pressure Gauge

Brand: Automation Products Group - APG
The PG7 Digital Pressure Gauge is built for accurate pressure measurements in indoor/outdoor environments. With its ease of operation, high accuracy, and many standard features, the PG7 is perfect for a variety of applications.
Features
  • Large, full 5-digit display with 0.4 inch characters
  • Available ranges from vacuum up to 10,000 psi
  • Environmentally sealed housing; IP67
  • Tare, Peak Hold, and Max/Min functions standard
  • ±0.25% accuracy of full scale
  • User selectable units of measure (PSI, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2)
  • Available RS-485/Modbus RTU output



The PG7 Digital Pressure Gauge is built for accurate pressure measurements in indoor/outdoor environments. With its ease of operation, high accuracy, and many standard features, the PG7 is perfect for a variety of applications.
Features
  • Large, full 5-digit display with 0.4 inch characters
  • Available ranges from vacuum up to 10,000 psi
  • Environmentally sealed housing; IP67
  • Tare, Peak Hold, and Max/Min functions standard
  • ±0.25% accuracy of full scale
  • User selectable units of measure (PSI, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2)
  • Available RS-485/Modbus RTU output



Specifications

Accuracy

  • ± 0.1 % of Span
  • ± 0.25 % of Span

Approvals & Certifications

  • CE

BSP Connection

  • 1/4” BSP Male

Compensated Temperature

  • -7° to 54° C (20° to 130° F)

Cone & Thread Connection

  • High Pressure SnoTrik M-250C Autoclave Male

Display

  • 5-Digit LCD

Enclosure, Body Material

  • Injection Molded Base (EMI-X)

Environmental Protection

  • IP67

Mounting

  • Bottom Mounting
  • Bottom Mounting with Rubber Boot
  • Rear Mounting

NACE & NIST

  • NIST Certification (Select Ranges)

NPT Connection

  • 1/4” NPT Male
  • 1/8” NPT Female

Operating Temperature

  • -18° to 71° C (0° to 160° F)

Output

  • 0 to 2 Vdc
  • 0-5 Vdc
  • 4-20 mA

Pressure Range

  • bar: 0 to 68.9
  • kPa: 0 to 6,894
  • psi: 0 to 10,000

Pressure Type

  • Absolute
  • Gauge
  • Sealed Gauge

Relay Operation

  • 2 Solid-State Relays with Visual Indication

SAE Connection

  • 7/16”-20 SAE Male

Size

  • Face: 3.25”

Storage Temperature

  • -40° to 71° C (-40° to 160° F)

Supply Voltage

  • 3.6 V Lithium
  • 9-28 Vdc
  • 9 V Lithium Battery
  • Two AA Alkaline Batteries

Wetted Materials

  • 316L Stainless Steel: up to 5,000 psi
  • 630 Stainless Steel: 5000 psi & above
