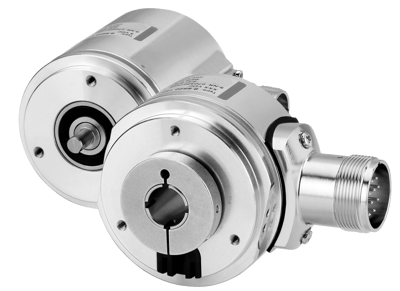

580X Incremental Encoder, Shaft

Brand: Kubler Group
Request Information
Features
  • Robust performance
    • Increased resistance against vibrations and tolerance of installation errors, elimination of machine downtime and repairs thanks to sturdy bearing construction in “Safety-LockTM Design”.
    • Ensures highest safety against field breakdowns and is thus suitable also for outside use thanks to its resistant die-cast housing and protection up to IP67.
    • Undetachable clamping ring on hollow shaft encoders.
    • Wide temperature range, -40°C to +85°C.
    • Higher shock resistance.
    • Higher vibration resistance.
    • IP66 and IP67 protection level in one version.
  • Many variants
    • Suitable connection variant for every specific case: cable connection, M12, M23, MIL and Sub-D connector.
    • Reliable mounting in a wide variety of installation situations: comprehensive and proven fixing possibilities.
    • Compatible with all US and European standards.
    • Max. 5000 pulses per revolution.
    • Double number of standard pulse numbers.
    • Variants with connector fitted in the cable – for error-free electrical connection to your control.
    • Additional connector variants (M12 / 5-pin, Sub-D).
    • Additional standard cable lengths.
show more
Features
  • Robust performance
    • Increased resistance against vibrations and tolerance of installation errors, elimination of machine downtime and repairs thanks to sturdy bearing construction in “Safety-LockTM Design”.
    • Ensures highest safety against field breakdowns and is thus suitable also for outside use thanks to its resistant die-cast housing and protection up to IP67.
    • Undetachable clamping ring on hollow shaft encoders.
    • Wide temperature range, -40°C to +85°C.
    • Higher shock resistance.
    • Higher vibration resistance.
    • IP66 and IP67 protection level in one version.
  • Many variants
    • Suitable connection variant for every specific case: cable connection, M12, M23, MIL and Sub-D connector.
    • Reliable mounting in a wide variety of installation situations: comprehensive and proven fixing possibilities.
    • Compatible with all US and European standards.
    • Max. 5000 pulses per revolution.
    • Double number of standard pulse numbers.
    • Variants with connector fitted in the cable – for error-free electrical connection to your control.
    • Additional connector variants (M12 / 5-pin, Sub-D).
    • Additional standard cable lengths.
Close

Specifications

Brand

Approvals & Certifications

  • CE Requirements According to EN 61000-6-2, EN 61000-6-4, EN 61000-6-3
  • RoHS Compliant According to EU Guideline 2002/95/EG
  • UL (C,US): File 224618

Cable Length

  • 3 ft (1 m)

Cable Material

  • Polyurethane (PUR)

Capacity

  • Axial Load Capacity of Shaft: 40 N
  • Radial Load Capacity of Shaft: 80 N

Communication

  • RS-422 (TTL-Compatible)

Consumption

  • Power Consumption (No Load) with Inverted Signal for Push-Pull: 80 mA Typical (150 mA - Max.)
  • Power Consumption (No Load) with Inverted Signal for Rs-422 (TTL Compatible): 40 mA Typical (90 mA - Max.)
  • Power Consumption (No Load) with Inverted Signals for Sine Wave: 65 mA Typical (110 mA - Max.)
  • Power Consumption (No Load) without Inverted Signal for Push-Pull: 55 mA Typical (125 mA - Max.)

Diameter

  • Clamping & Synchro Flange: 2.28" (58 mm)

Electrical Connectors

  • 10-pin Plug, "MIL"-Specified without Mating Connector, Radial
  • 7-pin Plug, "MIL"-Specified without Mating Connector, Radial
  • Axial 12-Pin Plug without Mating Connector

Electrical Protection

  • Short Circuit Proof Outputs

Environmental Protection

  • IP65

Flange Type - Other

  • Clamping Flange
  • Synchro Flange

Frequency

  • -3 dB Frequency: ≤ 180 kHz
  • Pulse Frequency: 300 kHz, Max.

Load

  • Permissible Load / Channel for Push-Pull: ± 30 mA - Max.
  • Permissible Load / Channel for RS-422 (TTL Compatible): ± 20 mA - Max.

Measuring Time

  • Rise & Fall Time for Push-Pull: 1 microsecond, Max.
  • Rise & Fall Time for RS-422 (TTL-Compatible): 200 Nanoseconds, Max.

Operating Temperature

  • -20° to 105° C (-4° to 221° F) for Model 5803
  • Constant Flexing: -20° to 70° C (-4° to 158° F)
  • Non-Condensing, for Continuous Operation 3,000 Min⁻¹, Ventilated: -20° to 85° C (-4° to 185° F)

Pulse Range

  • 25 to 36,000 Pulses

Reverse Polarity Protection

  • Yes (Only for 10-30 Vdc)

Shaft Material

  • Stainless Steel

Shock

  • Shock Resistance According to DIN-IEC 68-2-27: 1,000 m/sec², 6 ms

Speed

  • Speed with Seal: Max.

Supply Voltage

  • RS-422 (TTL Compatible) & Push-Pull: 5-30 Vdc
  • RS-422 (TTL Compatible) & Sine Wave: 5 V (± 5 %)
  • RS-422 (TTL Compatible), Push-Pull & Sine Wave: 10-30 Vdc

Torque

  • Starting Torque: < 0.01 Nm

Vibration

  • Vibration Resistance According to IEC 68-2-6: 100 m/sec², 10 to 2000 Hz
